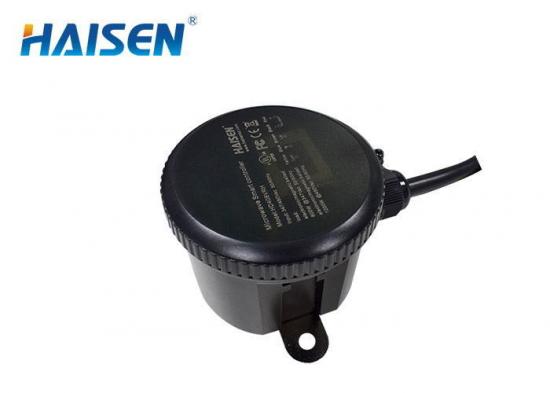

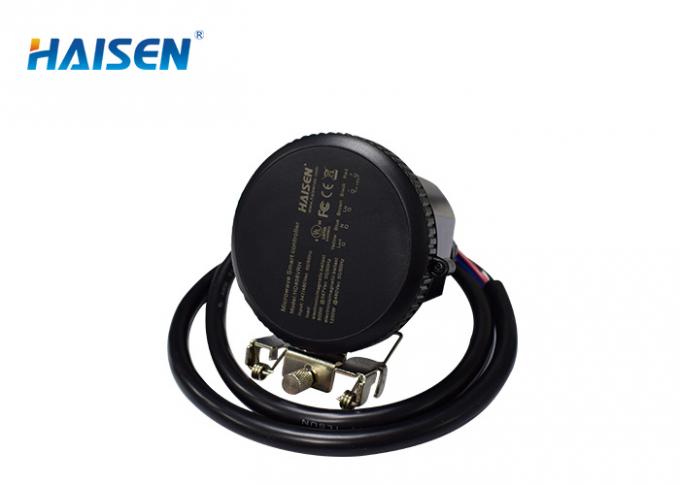

UL FCC Approved 347~480VAC Microwave Sensor For UFO Highbay /Triproof Light
Brand:
HAISENItem NO.:
HD408VRHOrder(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaUL FCC Approved 347~480VAC Microwave Sensor For UFO Highbay /Triproof Light
Description:
| Operating voltage | 347-480VAC,50Hz/60Hz |
| Switching capacity | 2.3A@347Vac 50/60Hz; 2.5A@480Vac 50/60Hz |
| Stand-by power | ≤1W |
| Detection area | 25%/50%/75%/100% |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux 80Lux/120Lux/Disable |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <1mW |
| Mounting height | Max.15m |
| Detection range | Max.ø14m |
| Control line | Black L,White N,Red L’,Gray -,Purple + |
| Operating temperature | -20°C~+55°C |
| IP rating | IP65 |
| Detection angle | 30°~150° |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
| Life time | 50,000 hours |
| Warranty | 5 years |

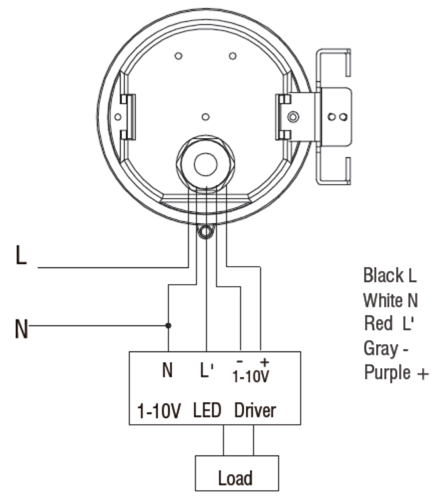

Wiring diagram

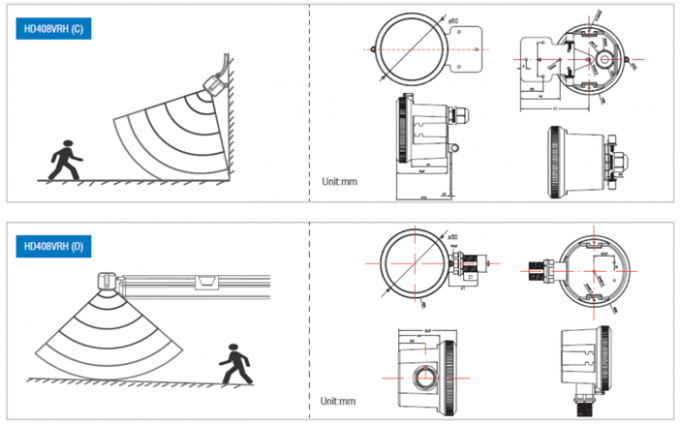

Mechanical structure(mm)

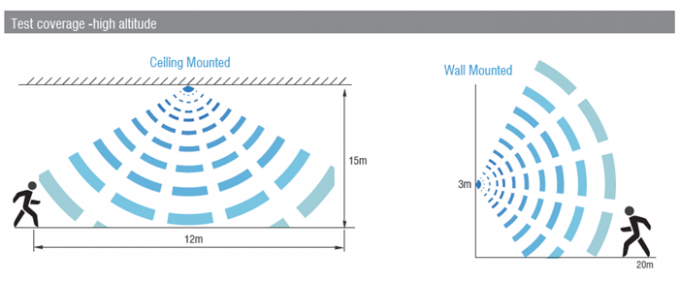

Detection coverage
Demo
Application
