Dimmable Motion Sensor TUV CE RoHS Certificate For Ceiling Light IP20

Brand:
HAISEN
Item NO.:
HD01V
Order(MOQ):
100pcs
Payment:
L/C, T/T, Western Union
Product Origin:
China
Certification:
CE,ROHS,TUV,RED

Product Detail

Features:

Compact design, suitable for installation in the interior of the lamp.
Have passed CE, RoHS,TUV and RED certificate.
On/off funnction and dimming funtion for ceiling light.
5 years warranty and life time is 50,000 hours.

Detailed product information

Input	Voltage Range	220~240 VAC 50/60Hz
Sensor Parameters	Stand-by period	0s/10s/1min/10min/30min/1h/∞
	Stand-by dimming level	10%/20%/30%/50%
	Daylight Sensor	2Lux/10Lux/50Lux/Disable
	Detection Area	10%/50%/75%/100%
	Mounting Height	Max.6m(ceiling mounted) Max.3m(wall mounted)
	Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
	Hold time	5s/30s/1min/5min/10min/20min/30min
Wireless Parameters	Operating Frequency	5.8 GHz ±75 MHz
Wireless Parameters	Function	0N/0FF+dimming function
Operating Environment	Operating Temperature	-20°C~+55°C
Safety & EMC	Approval	CE, ROHS, TUV, RED
Others	Installation	Installed inside lamps
	Packaging Requirement	Bubble pack, paper flat, outer carton.
	IP rating	IP20

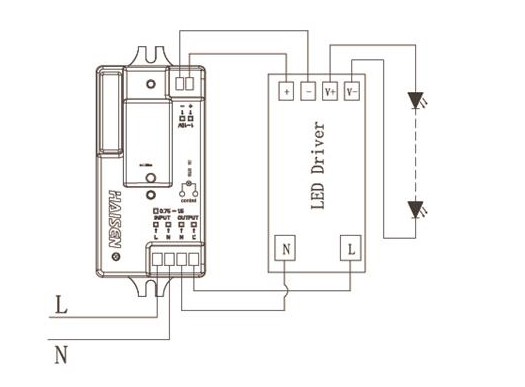

Wiring diagram

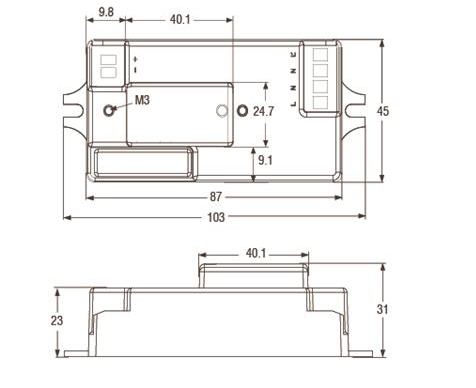

Size

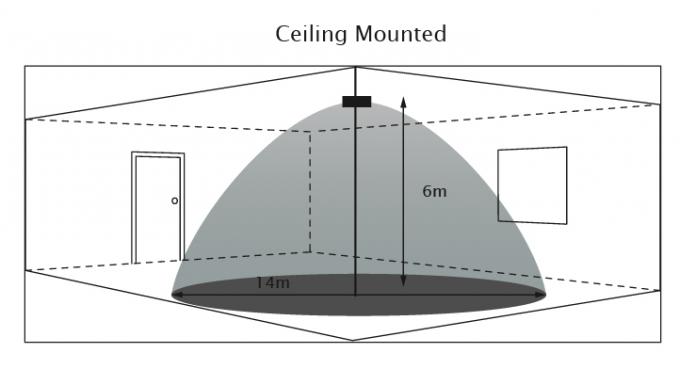

Detection coverage

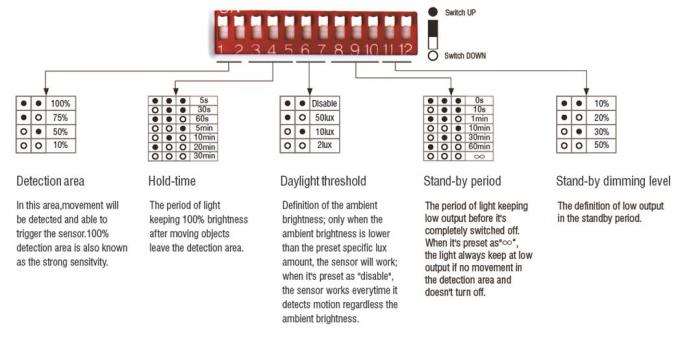

DIP switch setting

Demo

Application
