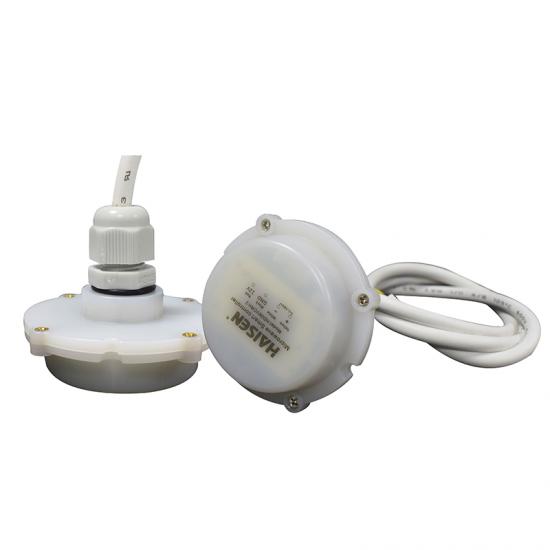

PIR ON/OFF Function For Highbay And Lowbay PIR Dimmable Function For Highbay And Lowbay
Brand:
HAISENItem NO.:
HD418PIRCertification:
UL,FCC,CE,ROHS
Previous:
PIR INFRARED HEIGH ALTITUDE SENSORIf you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
New Products
PIR INFRARED HEIGH ALTITUDE SENSOR
PIR INFRARED HEIGH ALTITUDE SENSOR
Dimmable Motion Sensor For Tri-proof Light Features: Sensor data can be simply set via DIP switch. High frequency 5.8GHz±75MHz. On/off function and dimming function for tri-proof light. 4-pole press-in terminal (L,N,N,L′),easy assembly. Have paseed UL, RoHS and FCC certificate. Dimmable sensor for warehouse light and car parking light ect. Detailed Product Description Operating voltage 120~277 VAC 50/60Hz Microwave frequency 5.8GHz±75MHz Stand-by power <1W Detection area 10%/50%/75%/100% Hold time 5s/30s/1min/5min/10min/20min/30min Stand-by period 0s/10s/1min/10min/30min/1h/∞ Daylight threshold 2Lux/10Lux/50Lux/Disable Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac Microwave power <0.3mW Stand-by dimming level 10%/20%/30%/50% Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted) Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted) Operating temperature -20°C~+55°C Detection angle 30°-150° IP rating IP20 Insallation Installed inside lamps Package Requirement Bubble pack, paper flat, outer carton. Guarantee 5 years Wiring diagram Mechanical structure(mm) DIP switch setting Detection coverage Function demo Apllication

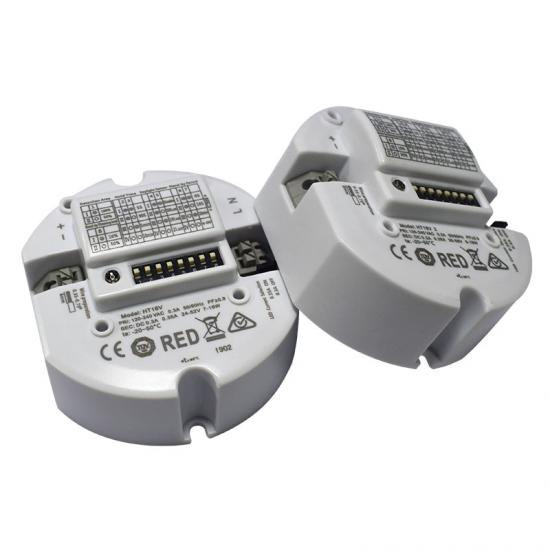

16W 2 in 1 Power Supply Driver with motion sensor for led Ceiling Light

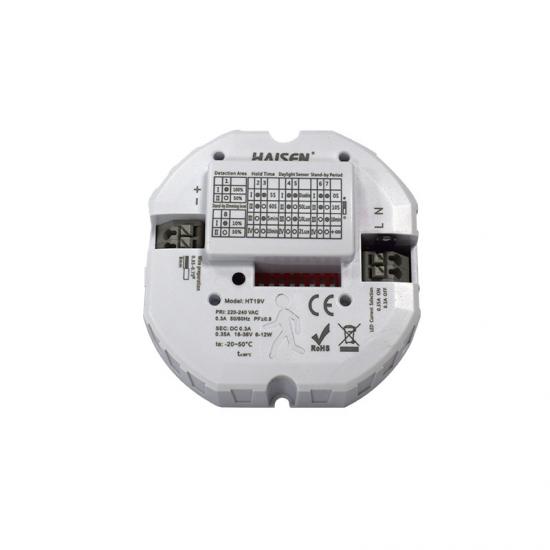

PIR indoor lighting sensor

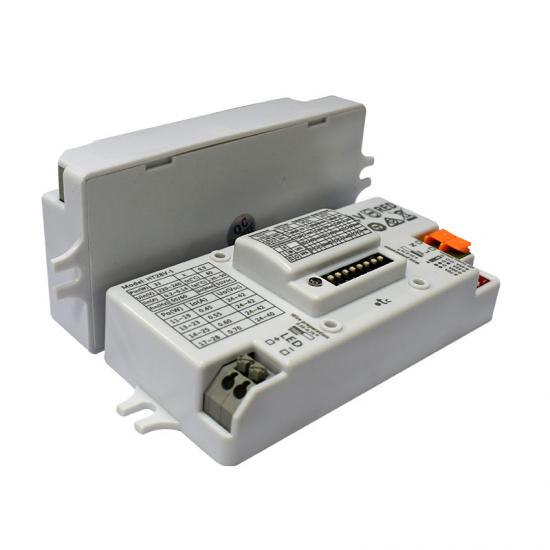

120~240VAC Detached Design Microwave Movement Sensor For Tripoorf Light
DC Input Compact Size Easy For Install Dimmable Function Sensor

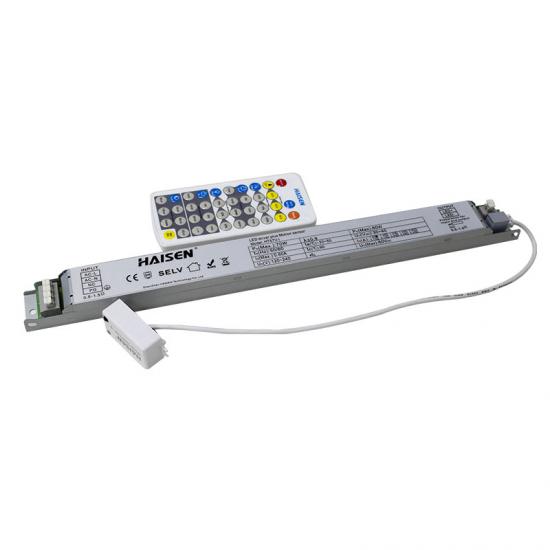

Remote Control 0-10V Dimmable Sensor For 15m Highbay Installation
