PIR INFRARED HEIGH ALTITUDE SENSOR Manufacturer

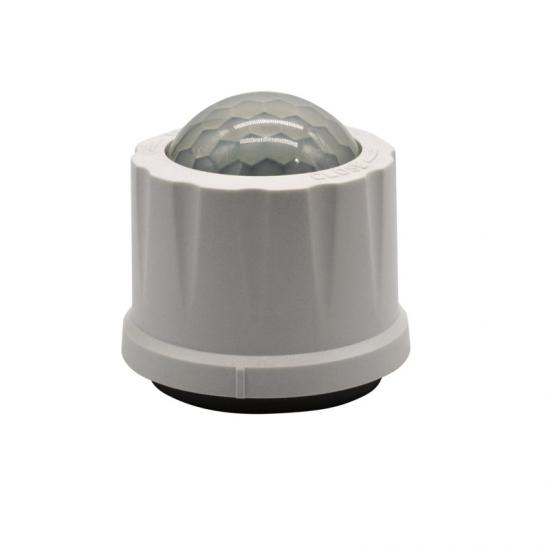

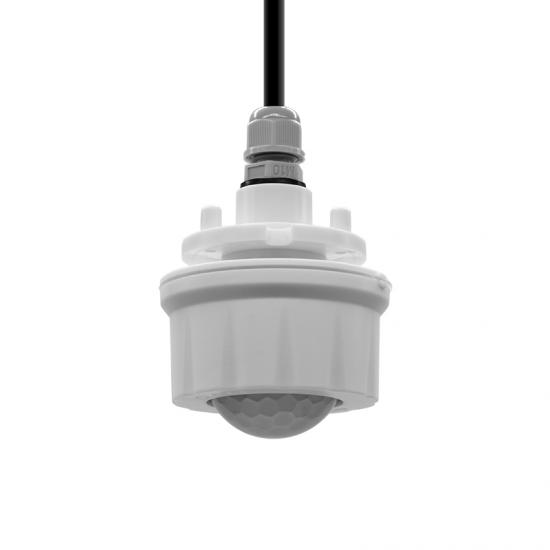

PIR infrared heigh altitude sensor

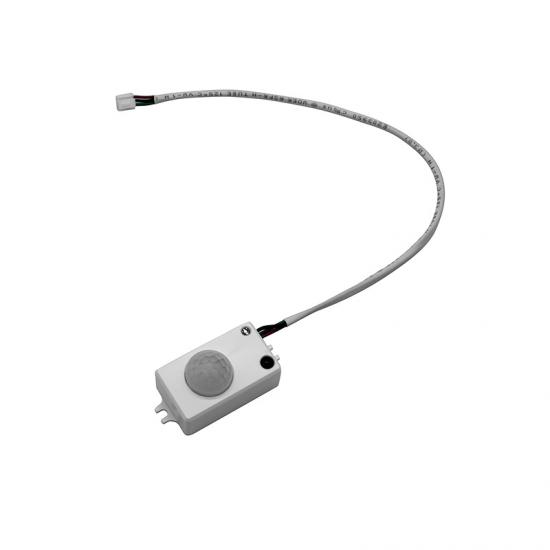

PIR SENSOR

PIR Panel SENSOR

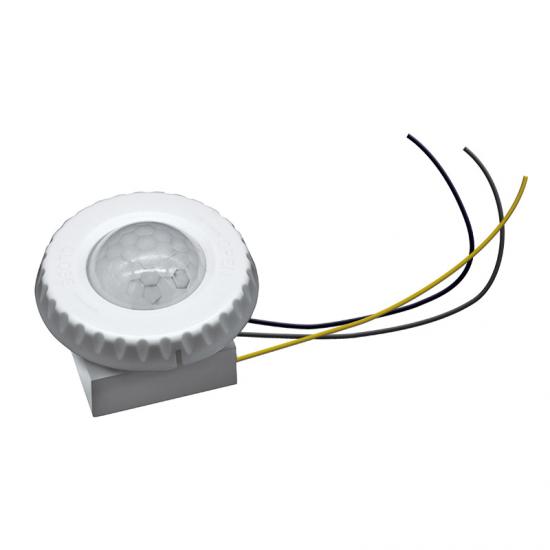

PIR indoor lighting sensor

12V DC IP65 PIR sensor with daylight priority function

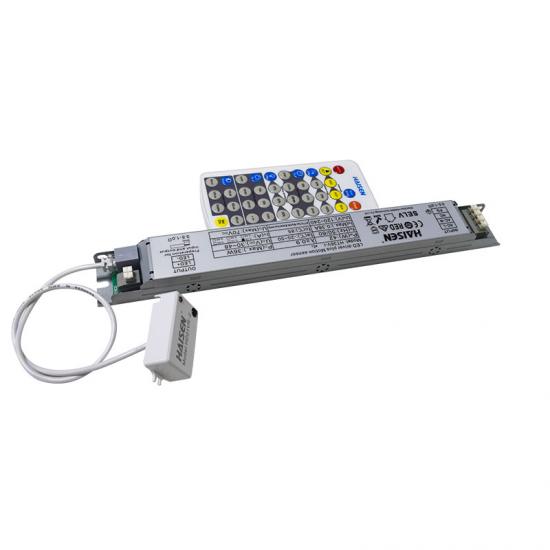

Dimmable Sensor For Triproof Light High Frequency 5.8GHz Ultra–Slim Design

Tripoof Light Microwave Movement Sensor Energy Saving With 150° Detection Angle

Ultra Slim Design Microwave Movement Sensor 220-240VAC For Triproof Light

Highbay Installation Microwave Movement Sensor with 120-277V AC Operated 5.8GHz Frequency

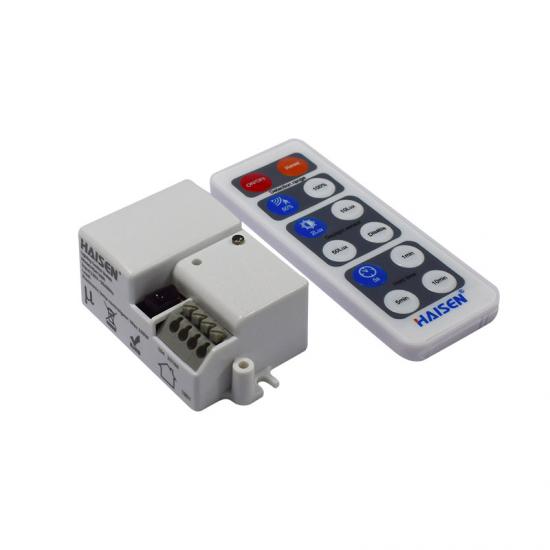

Highbay Installation Microwave Movement Sensor 120-277V AC Operated 5.8GHz Frequency Detailed Product Description Operating voltage 120~277 VAC 50/60Hz Switching capacity Max.200W(Control gear) Max.400W(Incandescent lamp) Stand-by power <1W Detection area 50%/100% Hold time 5s/30s/1min/10min Daylight threshold 2Lux/10Lux/50Lux Disable Stand-by period 0s/30s/20min/+ Stand-by dimming level 10%/20%/30%/50% Microwave frequency 5.8GHz±75MHz Microwave power <0.3mW Interfaces 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-) for 0.75- 1.5mm2 cable Mounting height Max.15m(ceiling mounted); Detection range Max.ø14m(ceiling mounted);Max.20m (wall mounted) Detection angle 30°-150° Operating temperature -30°C~+70°C IP rating IP20 Life time 50,000 hours Warranty 5 years Wiring diagram Mechanical structure(mm) DIP Switch Setting Detection coverage Demo Application

PIR Sensor Series

DC Input Series

PIR INFRARED HEIGH ALTITUDE SENSOR
