12V DC IP65 PIR sensor with daylight priority function
Brand:
HAISENItem NO.:
HD07VRTechnical Data:
|
Voltage |
DC10.5-15V>30mA |
Current |
＜15mA |
|
HF Frequenc |
5.8GHz±75MHz |
HF Power |
0.3mW |
|
Detection Angle |
＜120°(Fresnel Lens) |
Mounting Height |
≤6m |
|
Detection Distance |
Radius 3-6m |
Working Temp |
-40℃~+70℃ |
|
Warranty |
3 years |
Programming |
Fully compatible with HAISEN remote control HD05R |
|
Hold time |
5s/30s/1min/3min/5min/10min/20min/30min |
Daylight |
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable |
|
Standby Period |
0s/10s/30s/1min/5min/10min/30min± |
Standby Dimming |
10%/20%/30%/50% |
|
Control |
ON/OFF 0-10V Dimmable |
IP Grade |
IP65 |

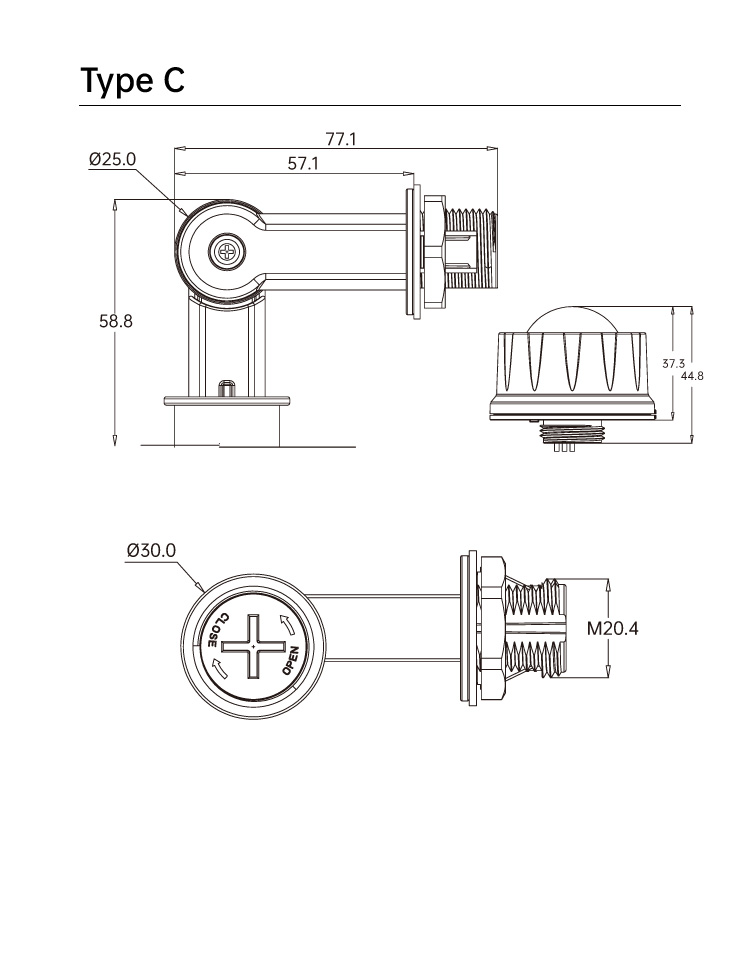

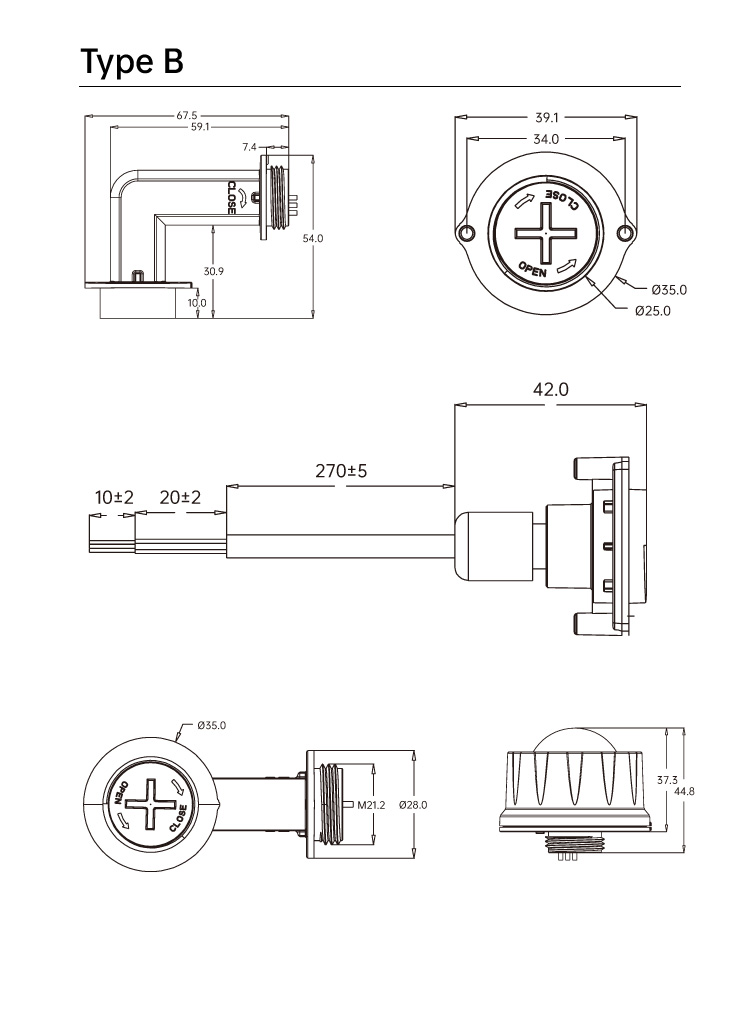

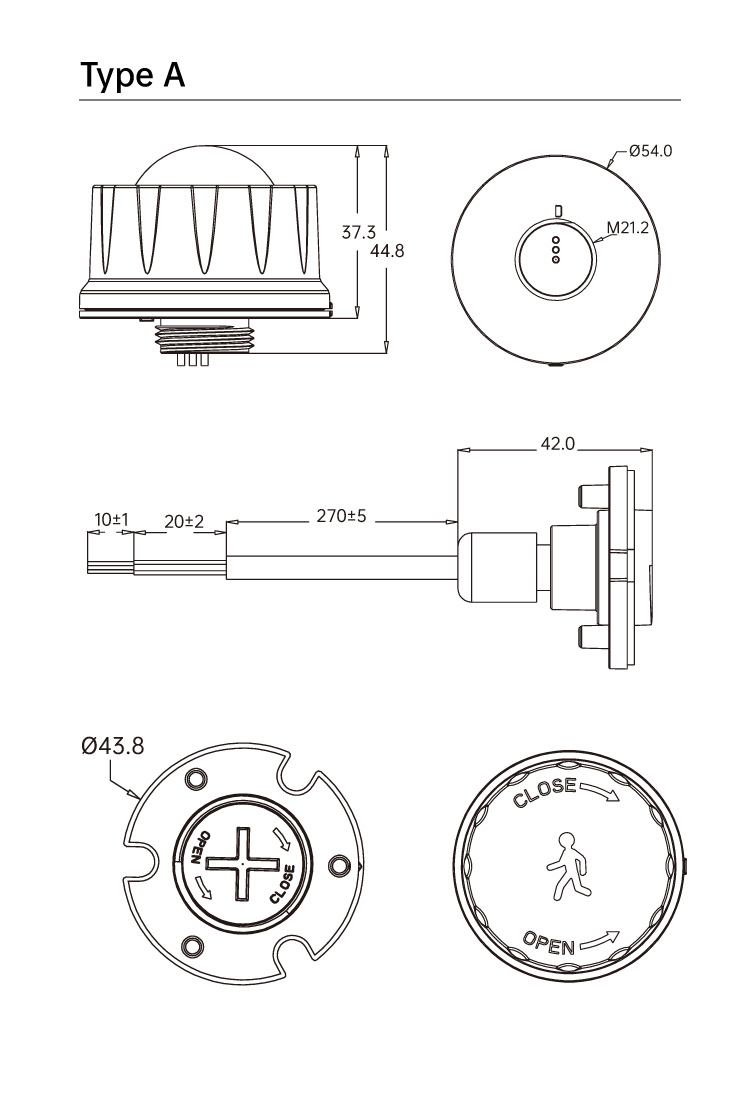

Dimensions:
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
New Products
PIR INFRARED HEIGH ALTITUDE SENSOR
PIR infrared heigh altitude sensor
PIR Panel SENSOR
PIR indoor lighting sensor

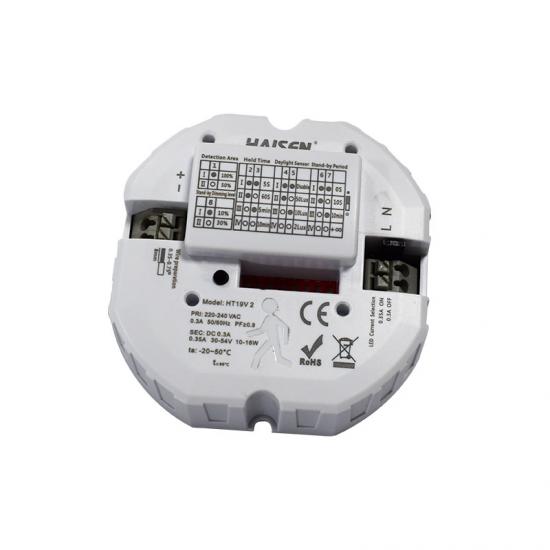

HT19V 2 is a LED Driver&Microwave Sensor 2-in-1 Products with 30-54V Output Voltage Detection Range & Height of 6m(H) x 14m(D), Dimming Function Microwave Motion Detector with 12-19W Output Power Suitable for Ceiling Light
