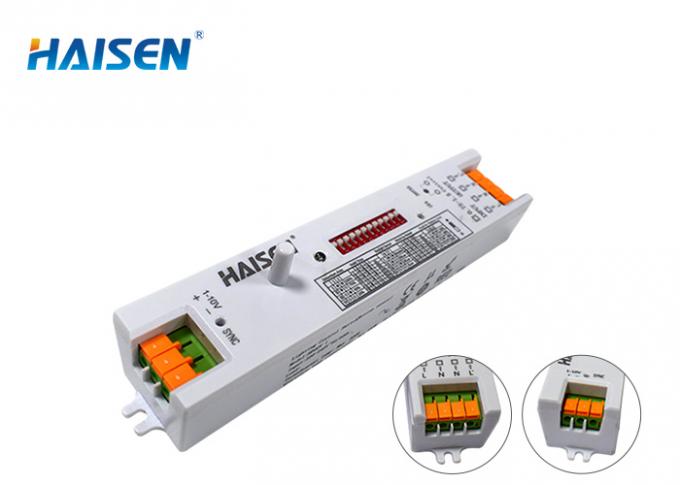

IP20 1-10V Dimmable Microwave Movement Sensor with DIP Switch Setting Control

Brand:
HAISEN
Item NO.:
HD402V 1
Order(MOQ):
100pcs
Payment:
L/C, T/T, Western Union
Product Origin:
China
Certification:
CE,ROHS,TUV,RED

Product Detail

IP20 1-10V Dimmable Microwave Movement Sensor with DIP Switch Setting Control

Feature:

SYNC function: all lights connected to this sensor interface can be controlled synchronously,Load 400W LED light.
1-10V dimmable driver and on/off function.
Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
High frequency 5.8GHz.

Speicification:

Switching capacity	Max.3.0A@120Vac,Max.2.0A@277Vac
Microwave frequency	5.8GHz±75MHz
Operating voltage	120~277VAC 50/60Hz
Stand-by power	<1W
Microwave power	<0.3mW
Hold time	5s/30s/1min/5min/10min/20min/30min
Stand-by period	0s/10s/1min/10min/30min/1h/∞
Stand-by dimming level	10%/20%/30%/50%
Daylight threshold	2Lux/10Lux/50Lux/Disable
Detection area	10%/50%/75%/100%
Approval	CE RoHS
Interfaces	7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
Mounting height	Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Detection angle	30°-150°
Life time	50,000 hours
package requirement	Bubble pack, paper flat, outer carton
Operating temperature	-20°C~+55°C
Installation	Installed inside lamps

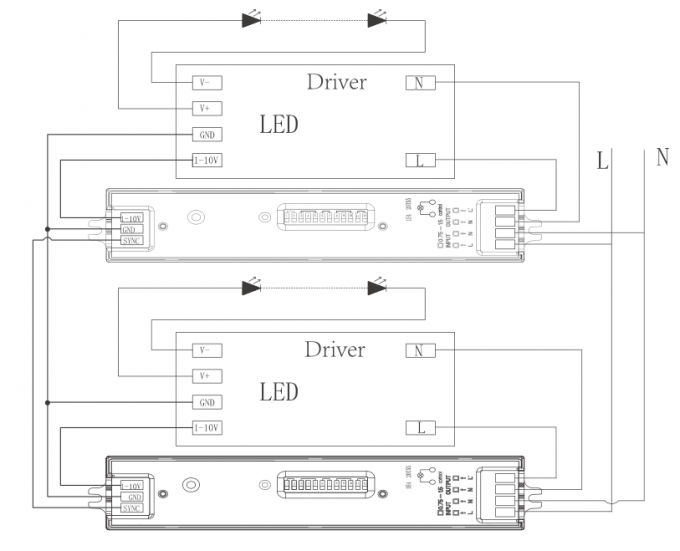

Wiring diagram

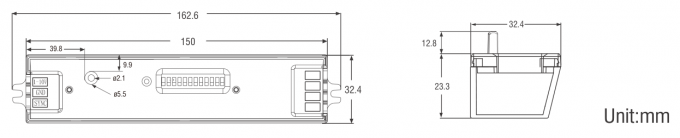

Mechanical structure(mm)

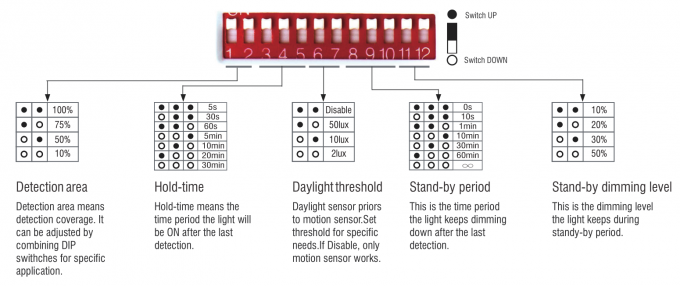

DIP Switch Setting

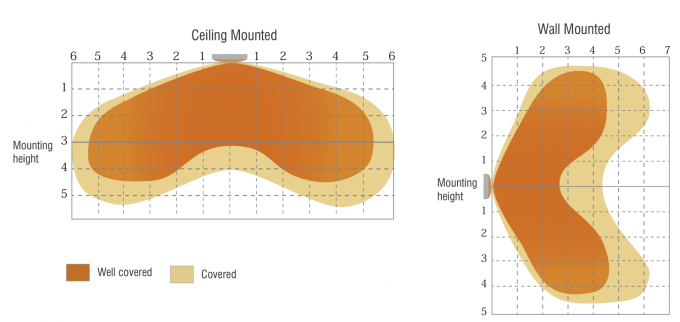

Detection coverage

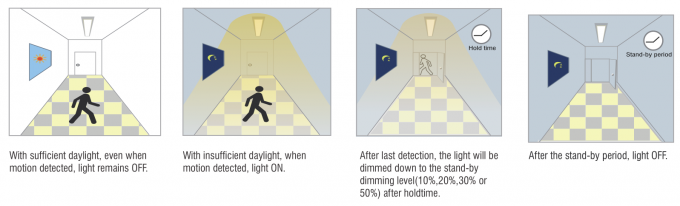

Demo

Application
