Brand:
HAISENItem NO.:
HD402VOrder(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
UL,CE,ROHS,TUV,REDDimmable Motion Sensor For Tri-proof Light
Features:
Detailed Product Description
| Operating voltage | 120~277 VAC 50/60Hz |
| Microwave frequency | 5.8GHz±75MHz |
| Stand-by power | <1W |
| Detection area | 10%/50%/75%/100% |
| Hold time | 5s/30s/1min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/1min/10min/30min/1h/∞ |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Switching capacity | Max.3.0A@120Vac,Max.2.0A@277Vac |
| Microwave power | <0.3mW |
| Stand-by dimming level | 10%/20%/30%/50% |
| Interfaces | 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable |
| Mounting height | Max.6m(ceiling mounted) Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) |
| Operating temperature | -20°C~+55°C |
| Detection angle | 30°-150° |
| IP rating | IP20 |
| Insallation | Installed inside lamps |
| Package Requirement | Bubble pack, paper flat, outer carton. |
| Guarantee | 5 years |

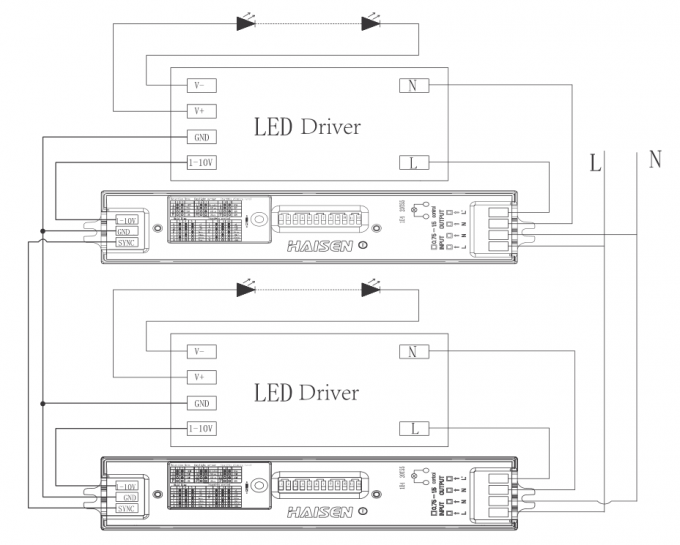

Wiring diagram

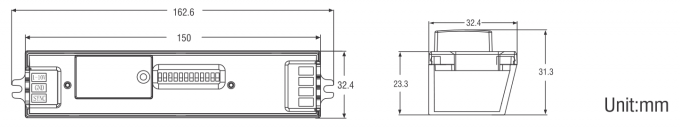

Mechanical structure(mm)

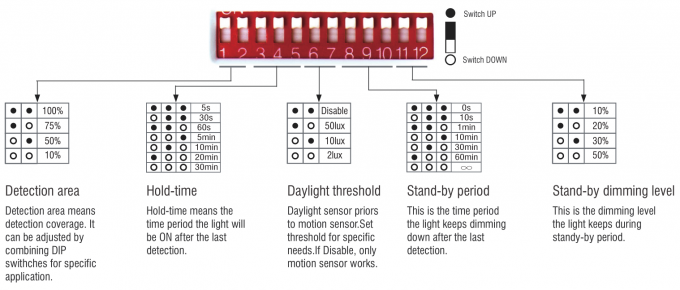

DIP switch setting

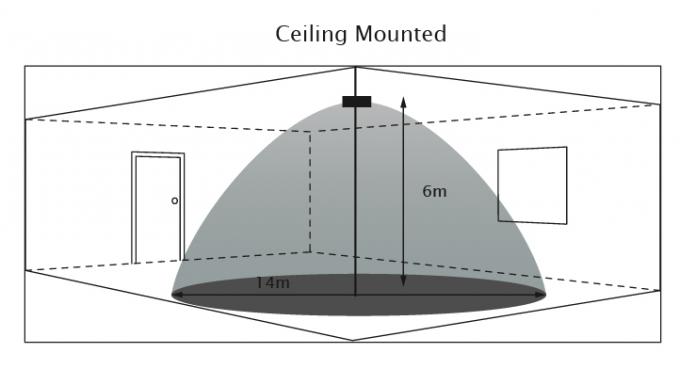

Detection coverage

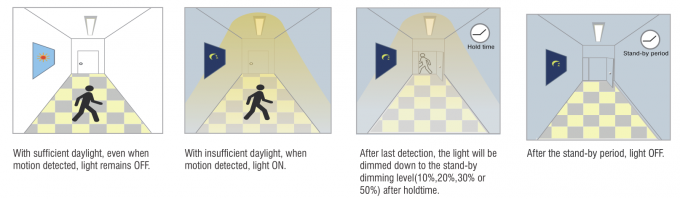

Function demo

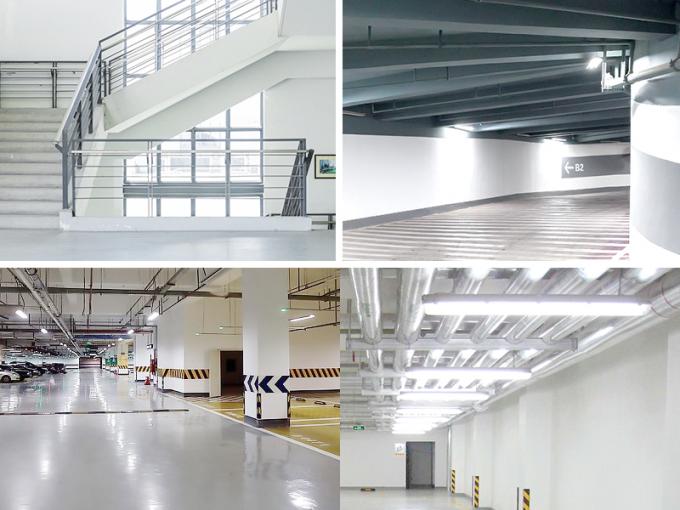

Apllication
