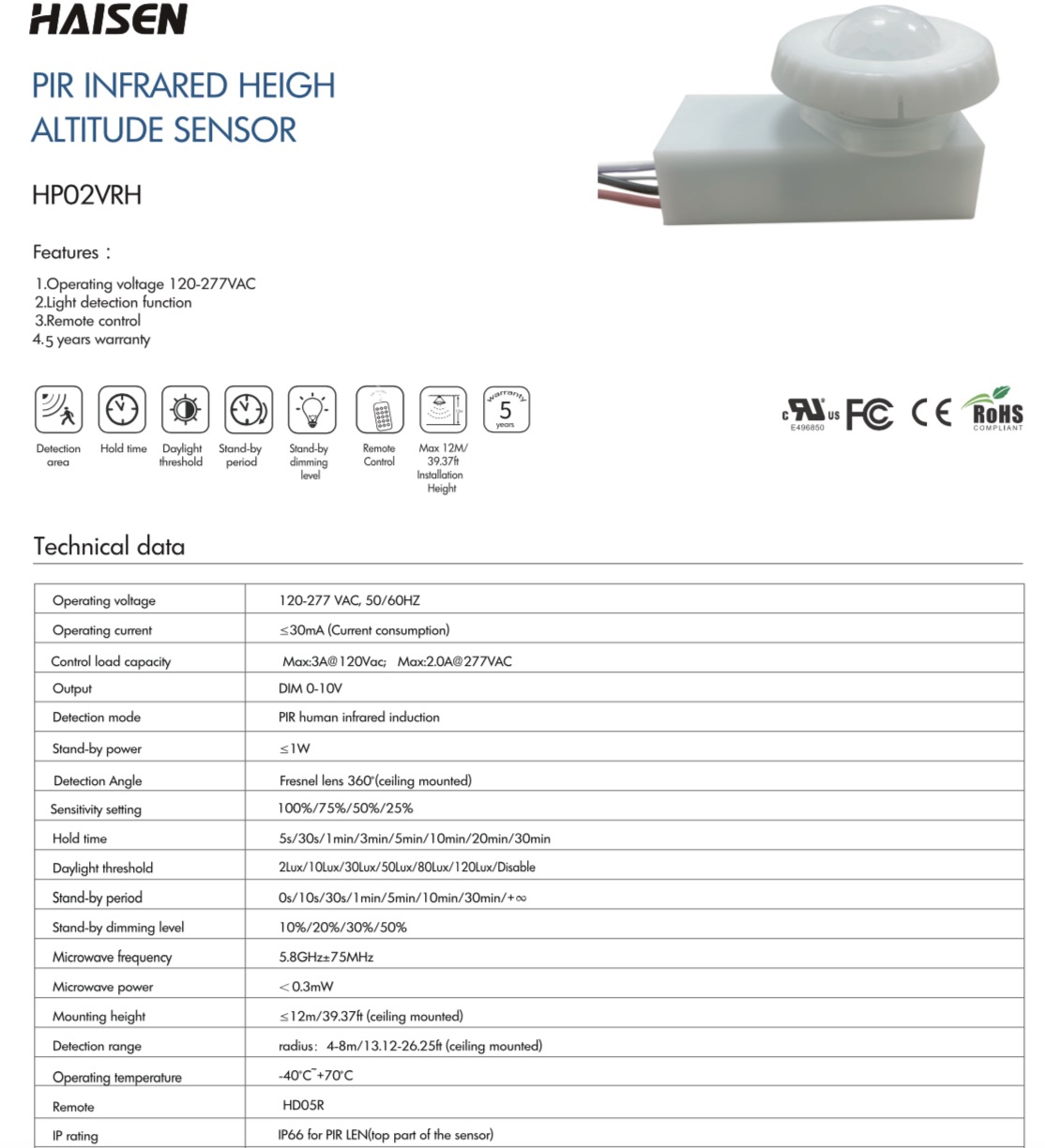

PIR INFRARED HEIGH ALTITUDE SENSOR
Brand:
HAISENItem NO.:
HP02VRHCertification:
UL,FCC,CE,ROHS
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
New Products
PIR ON/OFF Function For Highbay And Lowbay PIR Dimmable Function For Highbay And Lowbay
5.8GHz Frequency Microwave Movement Sensor with 120-277VAC Operated 5.8GHz Frequency For Triproof Light
120-277V AC Operated Dimmable Motion Sensor Remote Control For Ceiling Light
Highbay Installation Microwave Movement Sensor 120-277V AC Operated 5.8GHz Frequency Detailed Product Description Operating voltage 120~277 VAC 50/60Hz Switching capacity Max.200W(Control gear) Max.400W(Incandescent lamp) Stand-by power <1W Detection area 50%/100% Hold time 5s/30s/1min/10min Daylight threshold 2Lux/10Lux/50Lux Disable Stand-by period 0s/30s/20min/+ Stand-by dimming level 10%/20%/30%/50% Microwave frequency 5.8GHz±75MHz Microwave power <0.3mW Interfaces 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-) for 0.75- 1.5mm2 cable Mounting height Max.15m(ceiling mounted); Detection range Max.ø14m(ceiling mounted);Max.20m (wall mounted) Detection angle 30°-150° Operating temperature -30°C~+70°C IP rating IP20 Life time 50,000 hours Warranty 5 years Wiring diagram Mechanical structure(mm) DIP Switch Setting Detection coverage Demo Application
220-240VAC Ceiling Mounted ON/OFF Fuction Sterilization Lamp Application
Dimming Function 5V PWM Dimmable Microwave Movement Sensor IP 20
Remote control for the sensors
Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
