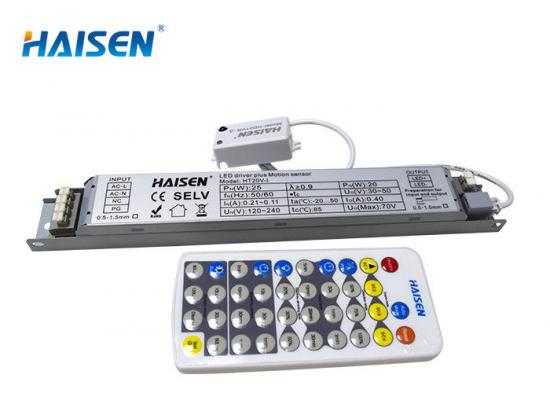

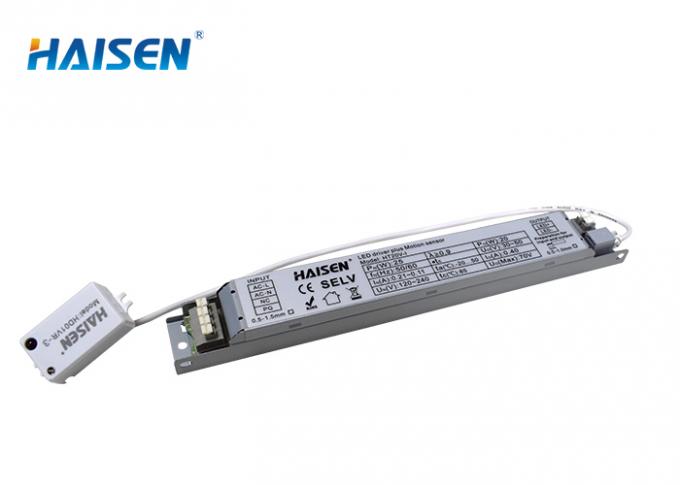

220-240VAC 20W Isolated Solution Microwave Movement Sensor For Tripoorf Light
Brand:
HAISENItem NO.:
HT20V-IOrder(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
SAA,CE,ROHS220-240VAC 20W Isolated Solution Microwave Movement Sensor For Tripoorf Light
Product Description
| Input voltage | 220~240VAC 50/60Hz |
| Input current | 0.12-0.11A Max |
| Input power | 25W Max |
| Detection area | 25%/50%/75%100% |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable |
| Stand-by period | 0S/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Detection angle | 30°-150° |
| Mounting height | Max.6m |
| Detection range | Max.ø14m |
| Output LED current | 0.40A(Max) |
| Output LED voltage | 30V-50V DC |
| Output LED power | 12W-20W |
| Empty load voltage | ≤70V Max |
| Power factor | ＞0.9 |
| Efficiency | 87% (Max.) |
| Operating temperature | -20°C ~ 50°C Tc: 85°C |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP |
| EMC standard | EN55015 |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
| IP rating | IP20 |
| Life time | 30,000 hours |
| Warranty | 3 years |
Wiring diagram

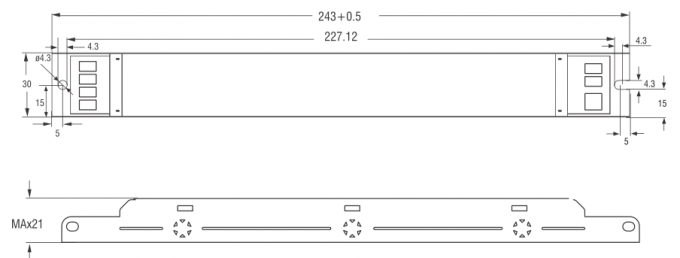

Mechanical structure(mm)
DIP Switch Setting

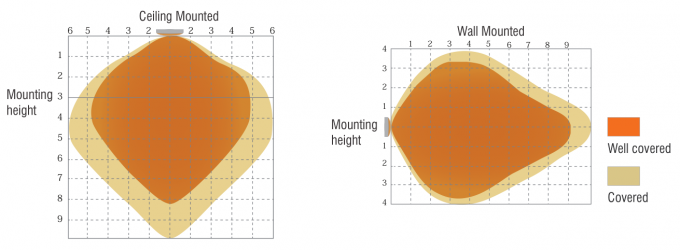

Detection coverage

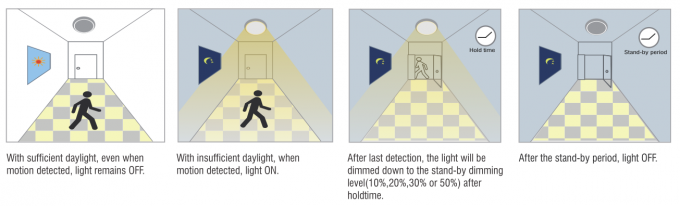

Demo

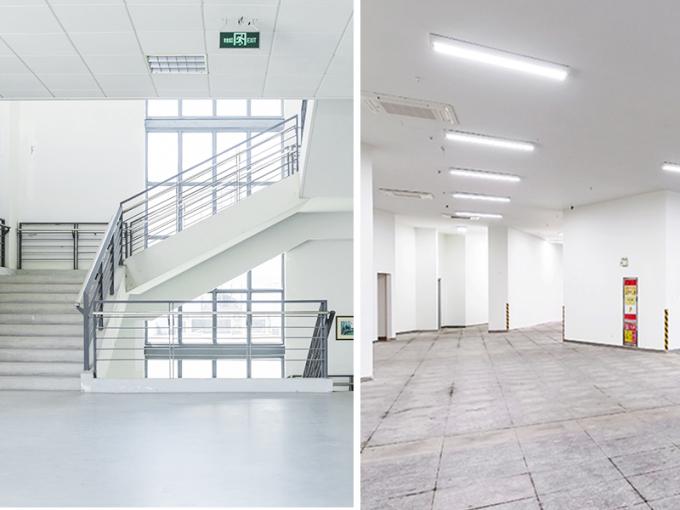

Application
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
