Microwave Movement Sensor with Detached Design For Tripoorf Light

Brand:
HAISEN
Item NO.:
HT36V-I
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China
Certification:
CE,ROHS,TUV,RED

Product Detail

For Tripoorf Light Microwave Movement Sensor Detached Design 120~240 ~277VAC

Product Description

Input voltage	120~240 ~277VAC 50/60Hz
Input current	0.36A Max
Input power	42W Max
Detection area	25%/50%/75%100%
Hold time	5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Stand-by period	0S/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level	10%/20%/30%/50%
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Detection angle	30°-150°
Mounting height	Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Output LED current	(Max)0.75A±5%
Output LED voltage	30V-48V DC
Output LED power	36W
Empty load voltage	≤70V DC (Max)
Power factor	≥0.9
Efficiency	87% (Max.)
Operating temperature	ta:-20°C~50°C Tc: 85°C
Abnormal protection	SCP:Auto recovery,OVP,OCP,OTP
EMC standard	EN55015
Safety standard	EN61347-1 EN61347-2-13 EN60598-1
IP rating	IP20
Life time	30,000 hours

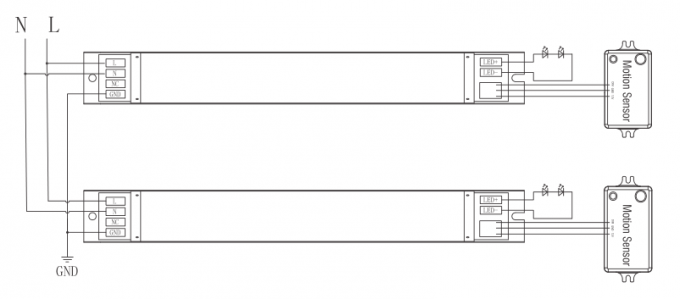

Wiring diagram

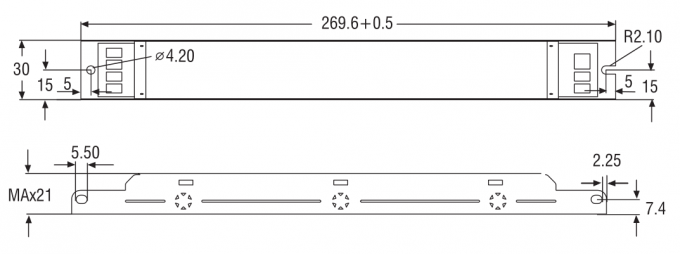

Mechanical structure(mm)

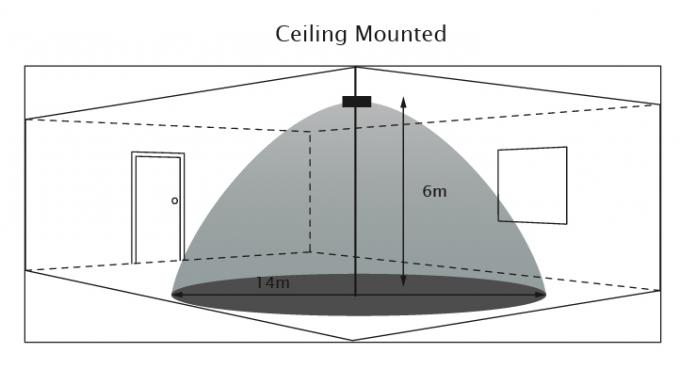

Detection coverage

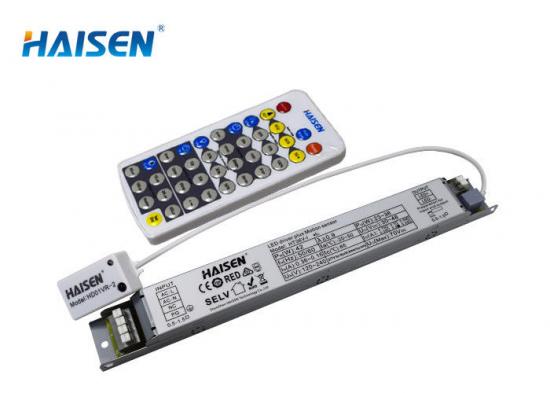

Demo

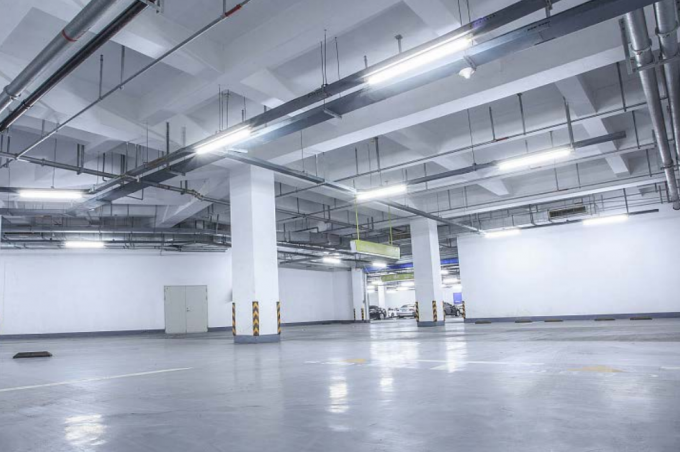

Application
