UL FCC Approval Lighting Control Switch Motion Sensor Optional Daylight Threshold1-10V Dimmable Motion Sensor , Microwave Motion Sensor for Triproof Light Features:HD402V 1 use ultra-slim design for Tri-proof LED light.It is specially designed for the SYNC function. The SYNC interface in the sensor can transmit motion signal to other sensors connected together, and then achieve group control function.

Brand:
HAISEN
Item NO.:
HD402V 1
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

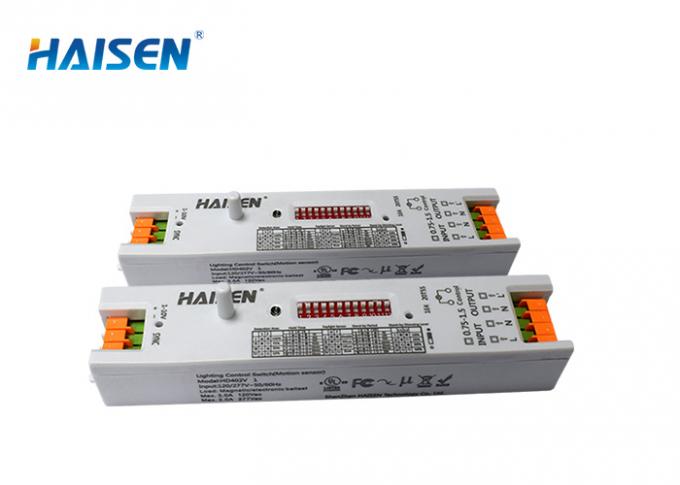

1-10V Dimmable Motion Sensor , Microwave Motion Sensor for Triproof Light

Features:

HD402V 1 use ultra-slim design for Tri-proof LED light.
It is specially designed for the SYNC function.
The SYNC interface in the sensor can transmit motion signal to other sensors connected together, and then achieve group control function.
Mounting height up to 4 meters/13.12ft.

Specifications

Operating voltage	120~277 VAC 50/60Hz
Switching capacity	Max.3.0A@120Vac,Max.2.0A@277Vac
Stand-by power	<1W

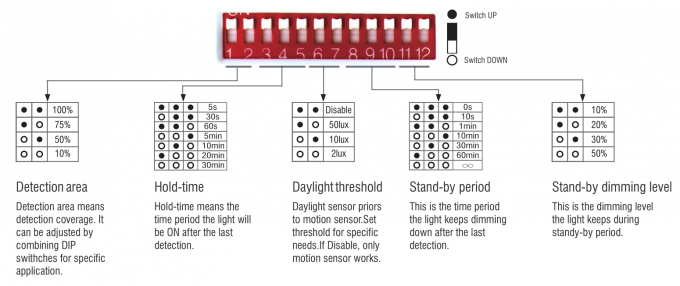

Detection area	10%/50%/75%/100%
Hold time	5s/30s/1min/5min/10min/20min/30min
Stand-by period	0s/10s/1min/10min/30min/1h/∞
Stand-by dimming level	10%/20%/30%/50%

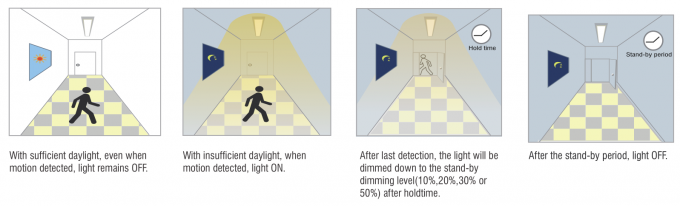

Daylight threshold	2Lux/10Lux/50Lux/Disable
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW

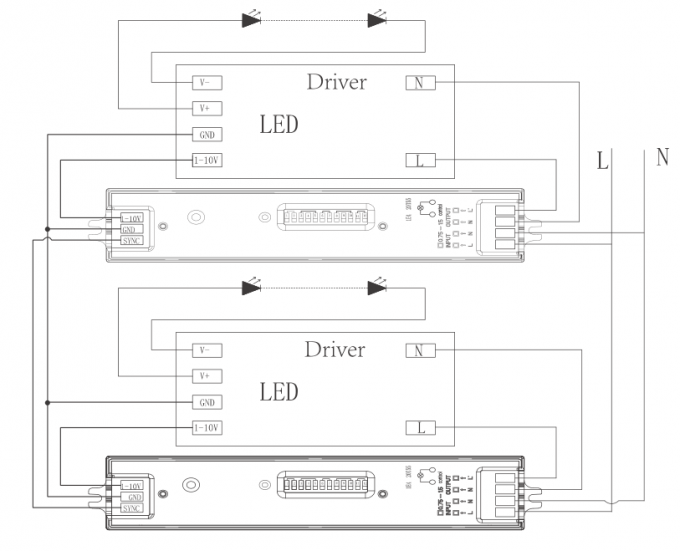

Interfaces	7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
Mounting height	Max.6m(ceiling mounted) Max.3m(wall mounted)

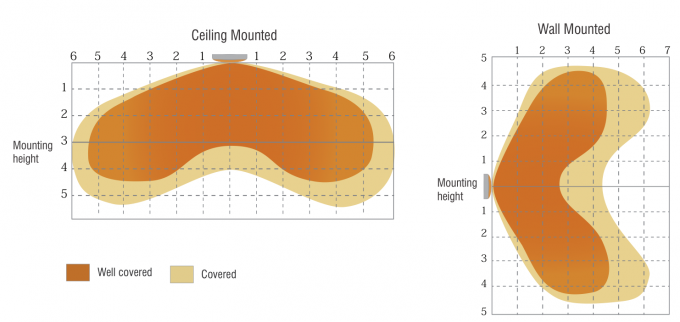

Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Operating temperature	-20°C~+55°C
Detection angle	30°-150°
IP rating	IP20
Life time	50,000 hours
Warranty	5 years
