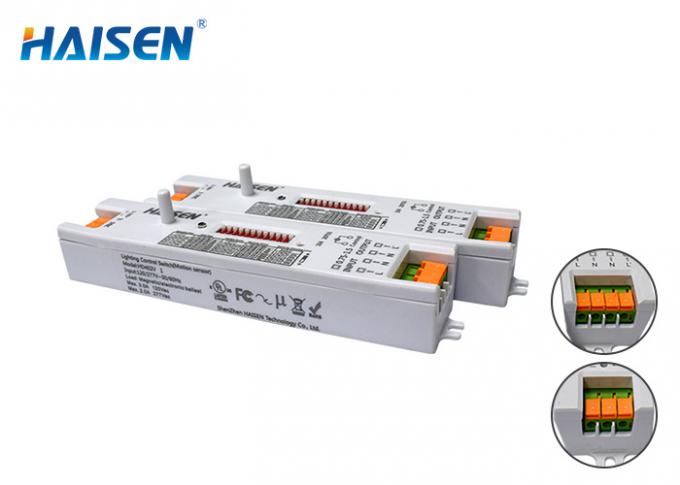

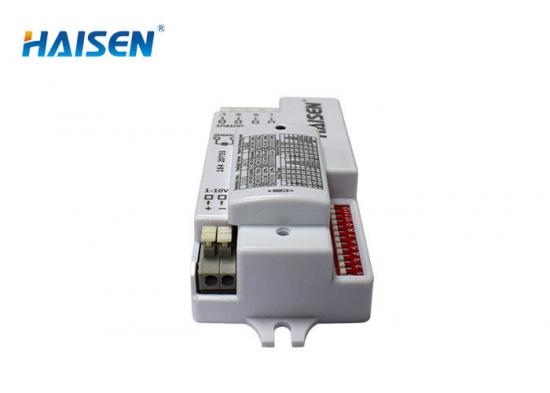

Dimmable Sensor Switch Occupancy Sensor For Warehouse Car Parking Lihgt

Brand:
HAISEN
Item NO.:
HD402V 1
Order(MOQ):
100pcs
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

Microwave Motion Sensor Rod Atenna For Warehouse Car Parking Lihgt

Features:

Sensor data can be simply set via DIP switch.
Easy installation, workable for tri-proof light.
Patented rod antenna makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.
Support max inductive load 400w, up to 8 50W lamps can be connected in series.
SYNC function: all lights connected to this sensor interface can be controlled synchronously.
Unique design ,suitable for 3-6 m Mounting height application.

Specification:

Input	Voltage Range	120-277Vac 50/60Hz
Sensor Parameters	Interfaces	7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
	Daylight Sensor	2Lux/10Lux/50Lux/Disable
	Switching capacity	Max.3.0A,120Vac; Max.2.0A,277Vac
	Hold time	5s/30s/1min/5min/10min/20min/30min
	Detection Area	10%/50%/75%/100%
	Mounting Height	2.5-4m(ceiling mounted) Max.3m(wall mounted)
	Detection range	Max.ø12m(ceiling mounted) Max.10m(wall mounted)
Wireless Parameters	Operating Frequency	5.8 GHz ±75 MHz
	Microwave power	<0.3mW
	Stand-by power	<1W
	Function	0N/0FF+dimming function
Operating Environment	Operating Temperature	-20°C~+55°C
Safety & EMC	Approval	CE, ROHS
Others	Installation	Installed inside lamps
	IP rating	IP 20
	Packaging Requirement	Bubble pack, paper flat, outer carton.

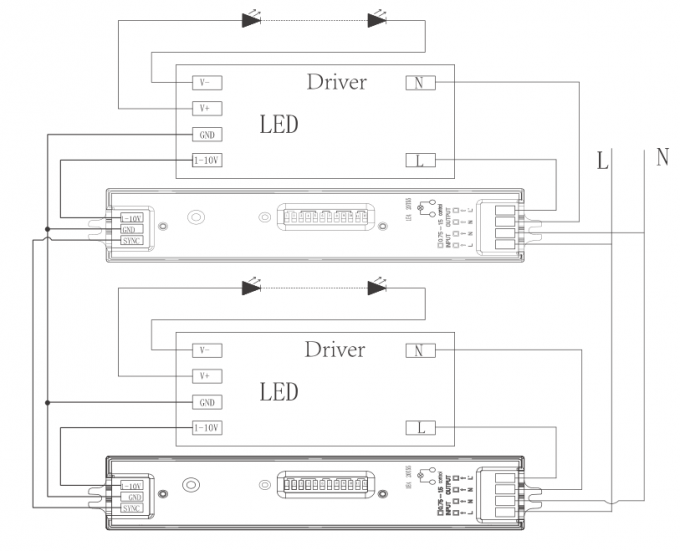

Wiring diagram

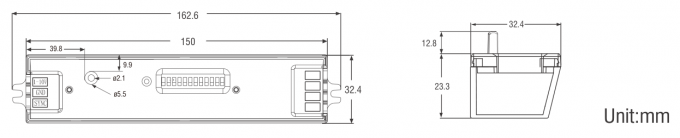

Mechanical structure(mm)

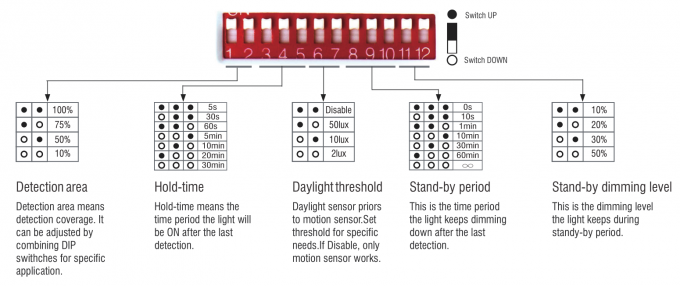

DIP Switch Setting

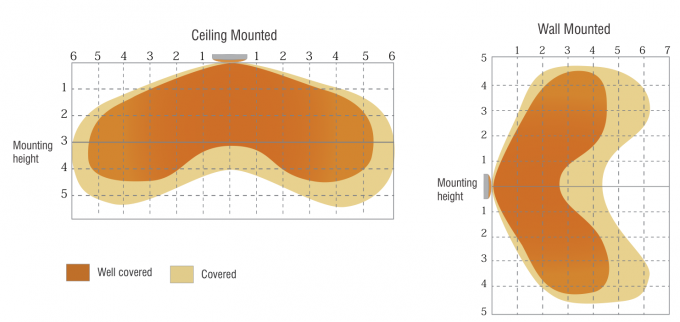

Detection coverage

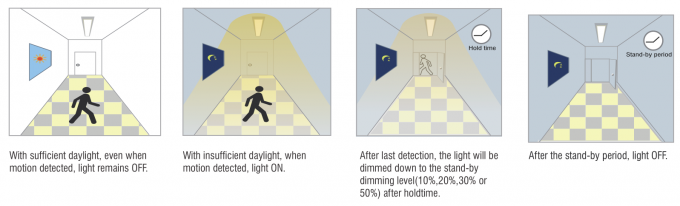

Demo

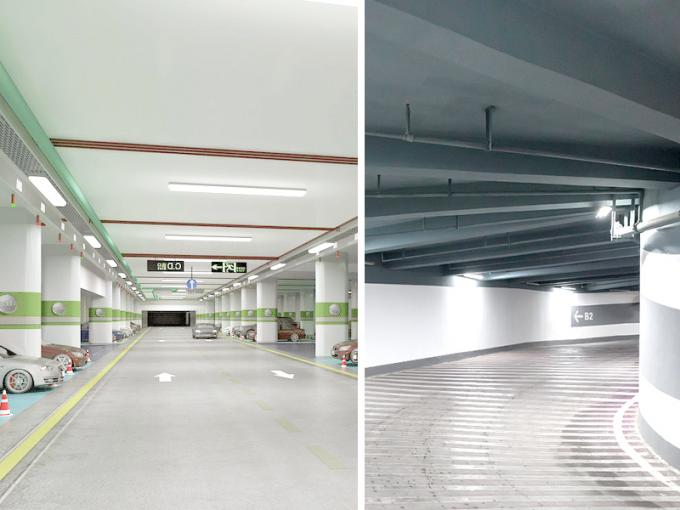

Application
