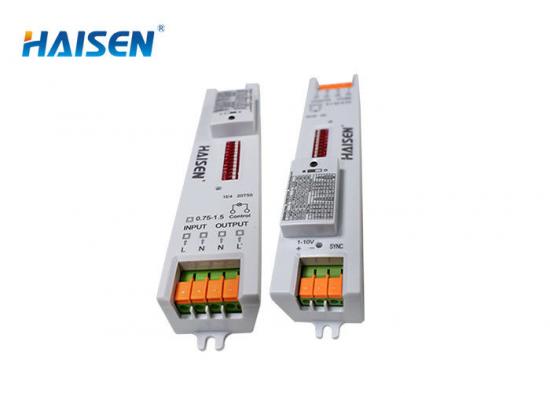

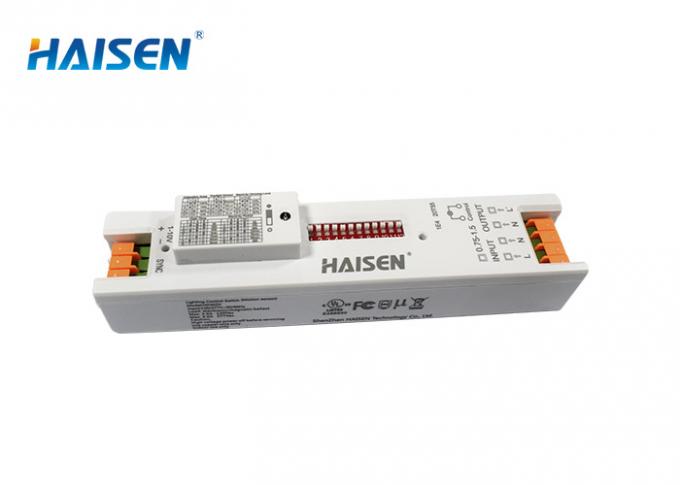

120-277VAC opreated dimmable Daylight Microwave Movement Sensor
Brand:
HAISENItem NO.:
HD401VOrder(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
UL,FCC,TUV,RED,CE,ROHS120-277VAC opreated dimmable Daylight Microwave Movement Sensor
Description:
Specification:
| Input | Voltage Range | 120~277 VAC 50/60Hz |
| Sensor Parameters | Daylight Sensor | 2Lux/10Lux/50Lux/Disable |
| Detection Area | 10%/50%/75%/100% | |
| Stand-by period | 0s/10s/1min/10min/30min/1h/∞ | |
| Stand-by dimming level | 10%/20%/30%/50% | |
| Mounting Height | Max.6m(ceiling mounted) Max.3m(wall mounted) | |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) | |
| Hold time | 5s/30s/1min/5min/10min/20min/30min | |
| Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
| Function | 0N/0FF+dimming function | |
| Operating Environment | Operating Temperature | -20°C~+55°C |
| Safety & EMC | Approval | UL, RoHS, FCC |
| Others | Installation | Installed inside lamps |
| Packaging Requirement | Bubble pack, paper flat, outer carton. | |
| IP rating | IP20 | |
| Warranty | 5 years | |
| Life | 50000h |

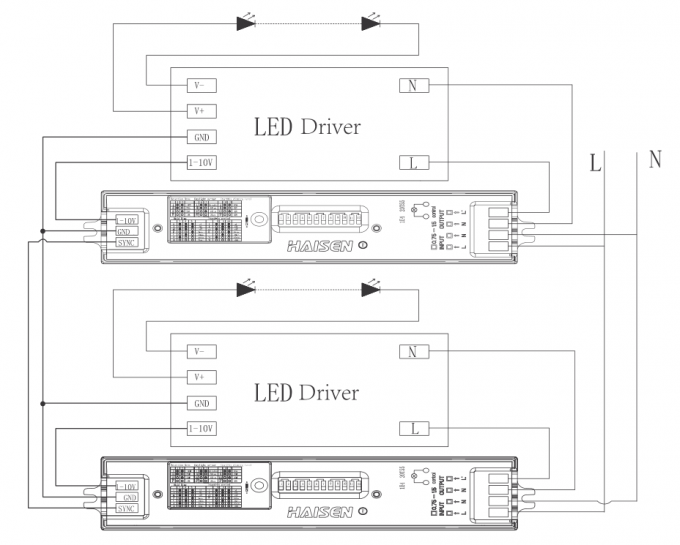

Wiring diagram

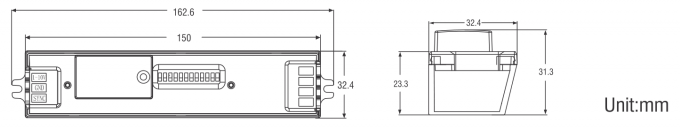

Mechanical structure(mm)

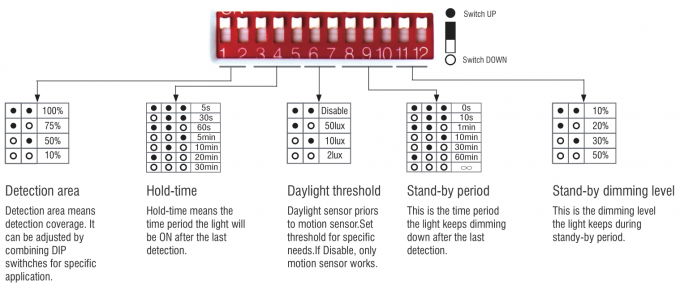

DIP switch setting
Detection coverage

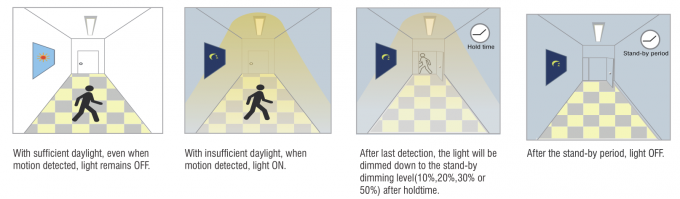

Function demo

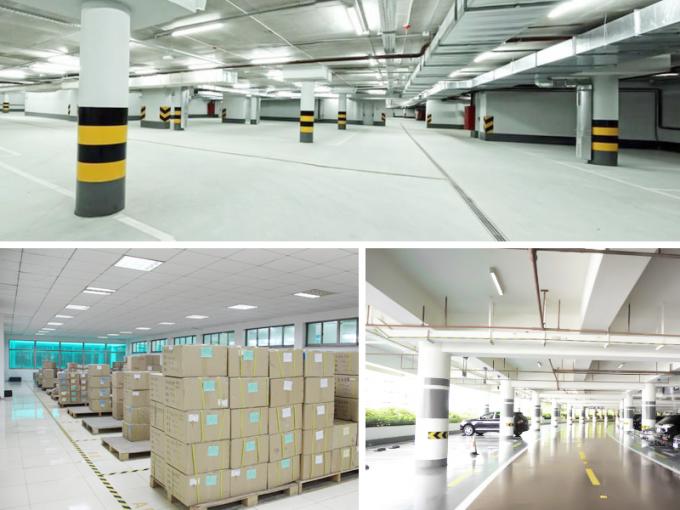

Apllication
