High Frequency 5.8GHz±75MHz sensor For Ceiling Fixture with 220-240 VAC Operated
Brand:
HAISENItem NO.:
HD01VOrder(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
CE,ROHS,TUV,REDHigh Frequency 5.8GHz±75MHz sensor For Ceiling Fixture with 220-240 VAC Operated
Feature:
Specification
| Input | Voltage Range | 220~240 VAC 50/60Hz |
| Sensor Parameters | Hold time | 5s/30s/1min/5min/10min/20min/30min |
| Detection Area | 10%/50%/75%/100% | |
| Daylight Sensor | 2Lux/10Lux/50Lux/Disable | |
| Mounting Height | Max.6m(ceiling mounted) Max.3m(wall mounted) | |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) | |
| Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
| Function | 0N/0FF+dimming function | |
| Operating Environment | Operating Temperature | -20°C~+55°C |
| Safety & EMC | Certificate Requirement | CE, ROHS, TUV, RED |
| Others | Warranty | 5 years |
| Installation | Installed inside lamps | |
| IP Rating | IP20 | |
| Packaging Requirement | Bubble pack, paper flat, outer carton. | |
| Life | 50000h |

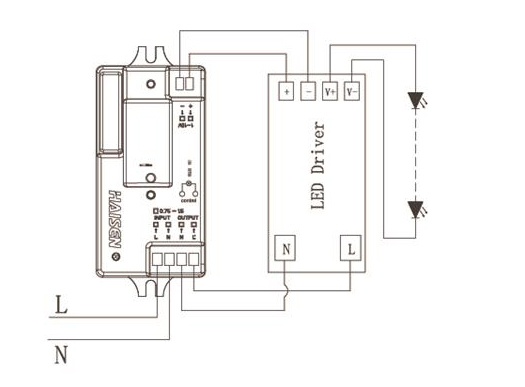

Wiring diagram

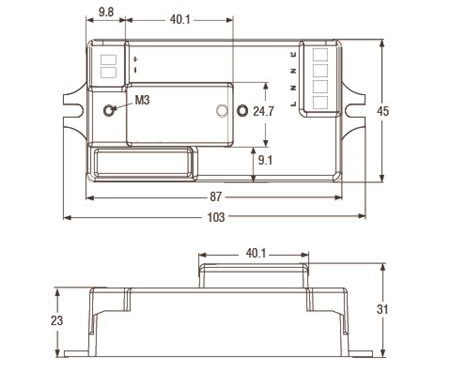

Size

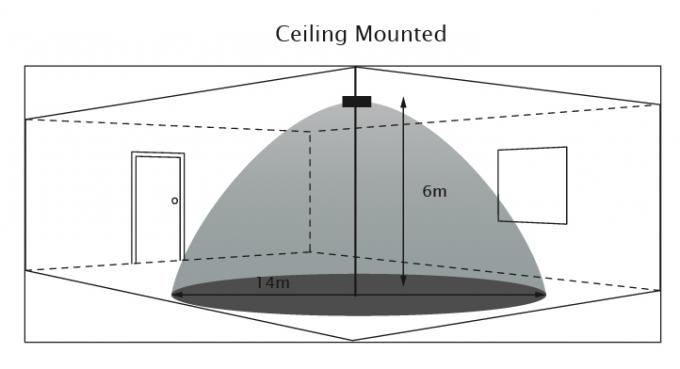

Detection coverage

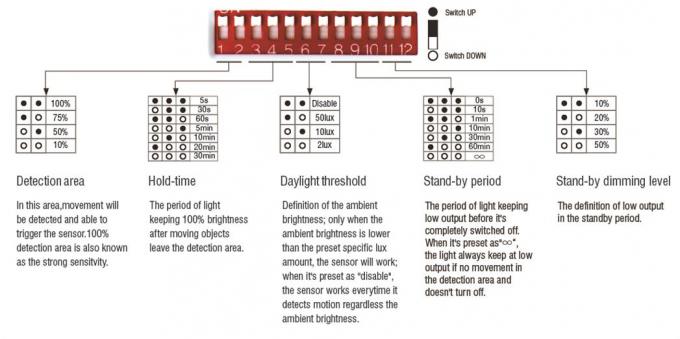

DIP switch setting

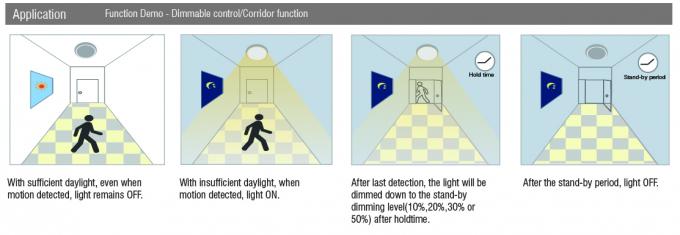

Demo
