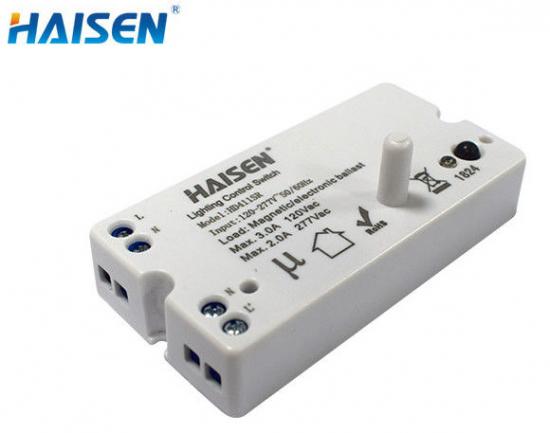

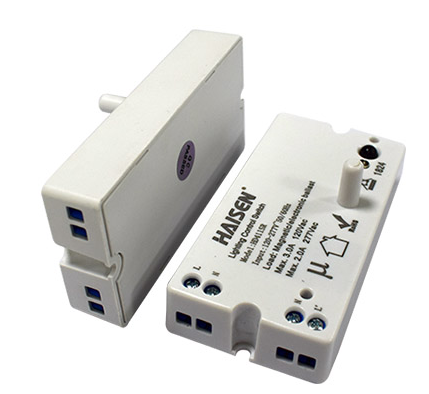

HD411SR- ON/OFF Microwave Motion Sensor with IP20 and Rod Antenna Design for Built-in Installation, Max. 14M Range x 4M Height 120-277VAC Operating Voltage For Panel Light/Ceiling Light/Tri-proof Light.

Features:

• HD411SR Remote Control Setting.
• ON/OFF Switch sensor to control the LED light automatically
• Rod Antenna size of 76.9*39.9*27.7mm.
• Loop-in and loop-out design for easily installation.
• Detection area, hold time and daylight sensor are selectable via Remote Control.
• 5.8GHz high frequency microwave.
• 4-pole press-in terminal (L, N,N,L′),easy assembly.

Detailed Product Description

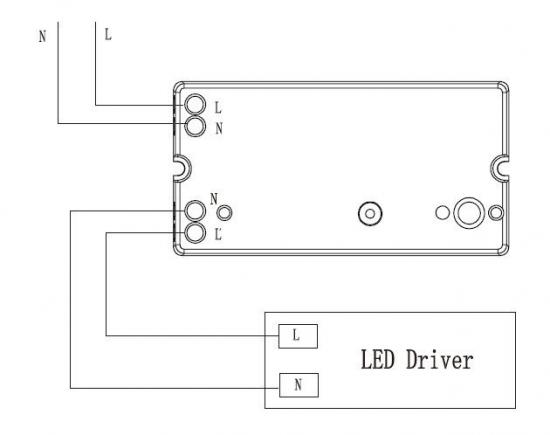

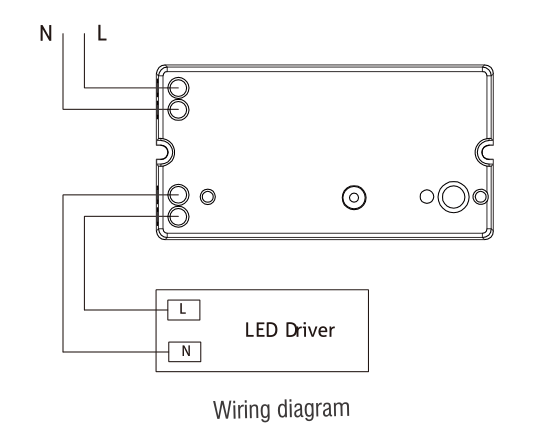

Wiring diagram

4-pole press-in terminal (L, N,N,L′),easy assembly.

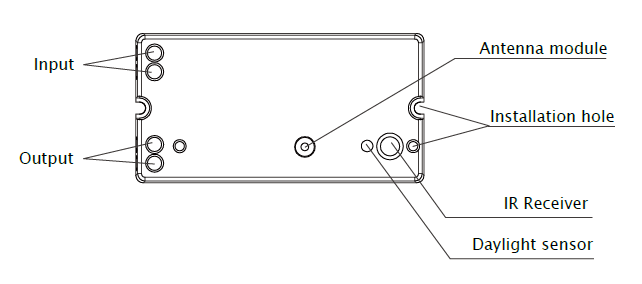

Mechanical structure(mm)

With Rod Antenna Module, easy to be installed inside of the lighting fitting;

With existed installation hole, easily fixed to the lighting board;

With IR Receiver, it could be set via our general ON/OFF remote controller;

With dalight detector, HD411SR has daylight function beyond motion detection function.

Dimension(mm):

With thinner design, it could be fixed inside of ceiling light / panel light.

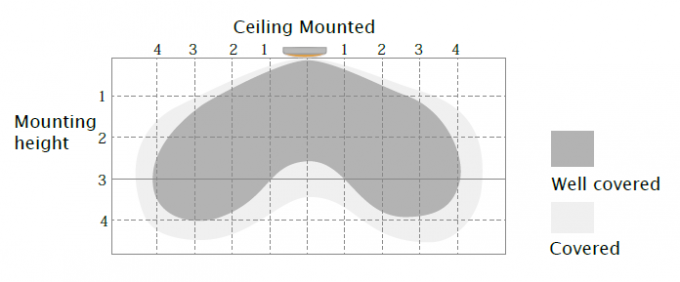

Detection coverage

With Rod Antenna Module, there would be blinded detection area right below the center of light.

It's will be better for ceiling mounting instead of wall mounting.

Typical installation height 2.5-4m
This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Installation Method

With thinner design and rod antenna module, it could be easily installed inside of many different structure of lighting fittings with opening a very small hole only.

Application Demo

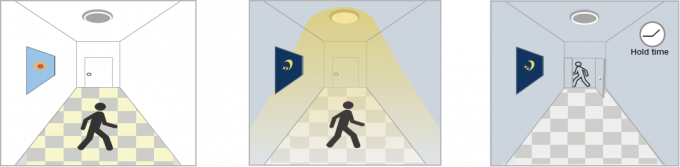

1. Automatically ON/OFF function

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

With sufficient daylight,          With insufficient daylight,      After the last detection
even when motion when motion detected,          and the present hold
detected, light remains light ON.                                time elapsed, light OFF.
OFF.

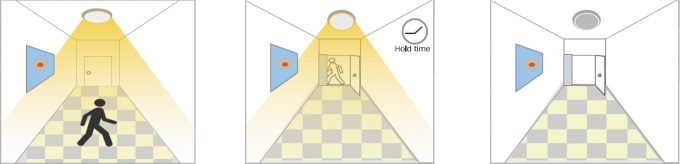

2. No daylight function

The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after hold on time.
Applications: Dim places such as Basement Parking, Underpass.

When motion is                      After people leave the             After the last detection
detected, the sensor will detection area, light                and the present hold
switch on the light to remains 100% brightness        time elapsed, light OFF.
100% brighteness.                  within hold time.

Application Environment

1. Suitable for indoor installation to avoid false triggering due to external factors such as rain, wind or tree swing.
2. Shall not be installed in the place with all four metal shelters and small space (such as galvanized-iron roof ).
3. Shall note be mounted installation, so as to avoid false trigger caused by the lamp itself shaking.
4. Shall not be installed next to large operating machines such as ventilator/ceiling fan to avoid false triggering caused by machine vibration.

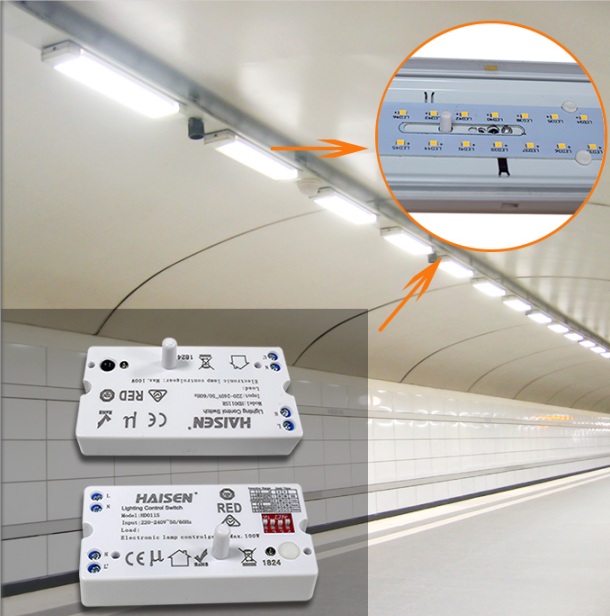

Application Case
