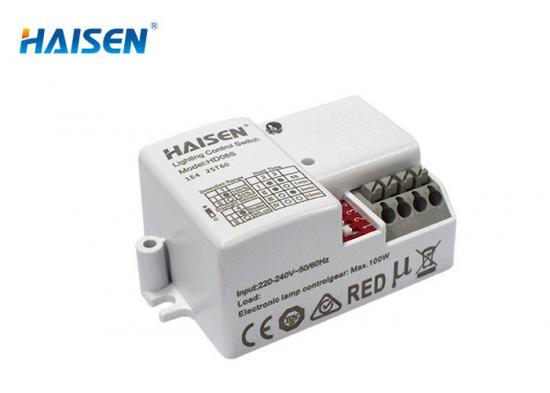

220-240VAC Ceiling Mounted UV Light Sensor ON/OFF Fuction

220-240VAC Ceiling Mounted ON/OFF Fuction Sterilization Lamp Application

Brand:
HAISEN
Item NO.:
HD08S 4
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

220-240VAC Ceiling Mounted ON/OFF Fuction Sterilization Lamp Application

Features of Ceiling Light Motion Sensor:

1. Smart sensor,light OFF when people approach.

2. Optional detection range, ON/OFF hold time.

3. Application: living room, cinema, office etc.

4. 5 years warranty.

Product Description of Ceiling Light Motion Sensor:

Factory default setting: 100% detection area, 30min OFF hold time and 10s ON hold time.

Operating voltage	220-240VAC 50/60Hz
Connection mode	Amphenol connector(L,N,N,L')
Control load capacity	Impedance load(300W), capacitive load(100W)
Stand-by power	≤0.5W(230VAC)
Output control mode	ON/OFF
Microwave frequency	5.8GHz±75MHz
Microwave Power	<0.3mW
Mounting Height	≤4m/13.12ft
Detection Range	Radius,3-6m/9.84-19.68ft
Detection angle	Side mounted<150°,vertical mounted 360°
Method of setting up	Dial code
Hold time	10s
Detection Area	50%/100%
Turn-off Delay	30min/1H/2H/+∞
Turn-on Delay	10s/20s
Certificate	CE RoHS
Operating Temperature	-25°C~+60°C
IP grade	IP20

ON/OFF Control Detection Area Hold Time Warranty of 5 years

Detection Range of Ceiling Light Motion Sensor

The figure shows the detection range graph under the 100% sensitivity and 2-4M mounting height.

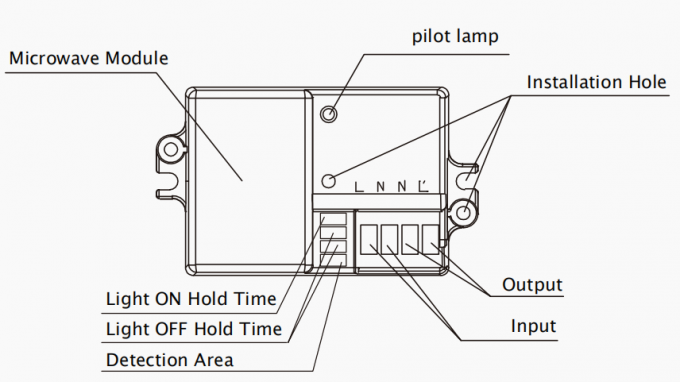

Mechanical structure of Ceiling Light Motion Sensor

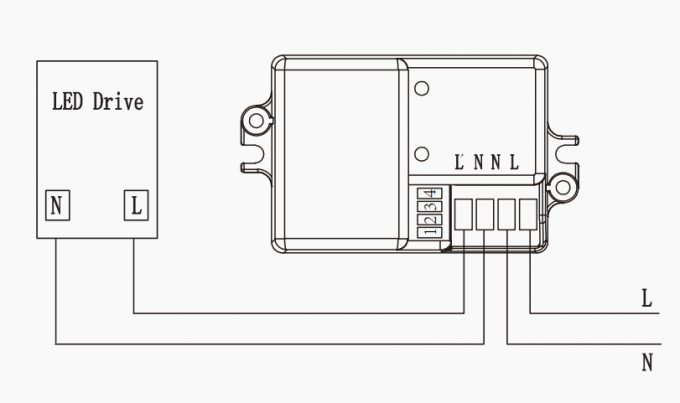

Wiring diagram of Ceiling Light Motion Sensor

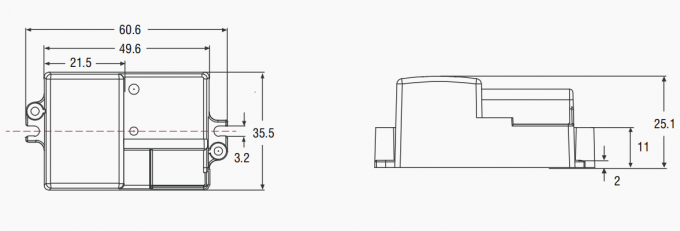

Dimensions of Ceiling Light Motion Sensor (mm)

Settings of Ceiling Light Motion Sensor:

By selecting the combination of the DIP switches,sensor will be precisely set for different applications.

Detection area:

It's detection range,or sensitivity. When people walk into detection area, sensor will be triggered to turn off the light automatically.

Light OFF Hold Time Setting:

The hold time that lamp keep ON until turn OFF.

Light ON Hold Time Setting:

When people leave the detection area, the hold time that lamp keep OFF until turn ON.

Instructions of Ceiling Light Motion Sensor:

1. After the UVC lamp is powered on, when people leaves the scene, the lamp flashes 10s / 20s and then turn on the light.

2. After turned on, the UVC lamp starts to work, the hold time can be set to 30min / 1H / 2H, and then turn off; if the hold time is set to (+ ∞), the lamp keep working and won't turn off.

3. When the UVC lamp is working, if detects that someone is approaching, it will turn off automatically,and the lamp will not turn on after the person leaves the detection area, unless power on again.

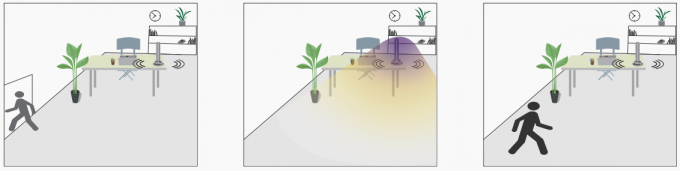

Application Demo of Ceiling Light Motion Sensor

After the UVC lamp is After turned on, the UVC When the UVC lamp is working,powered on, when people lamp starts to work, the if detects that someone is leaves the scene, the lamp hold time can be set to approaching, it will turn off flashes 10s /20s and then 30min / 1H / 2H,and then automatically.

turn on the light. turn off.
