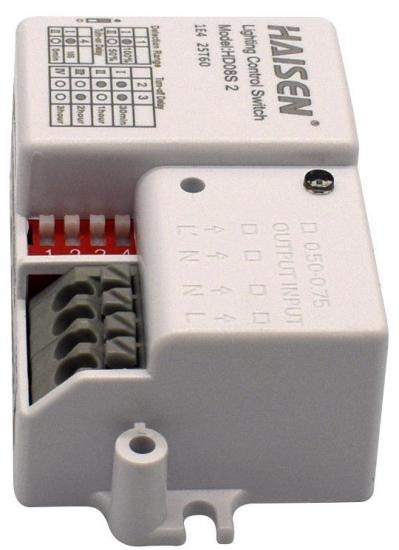

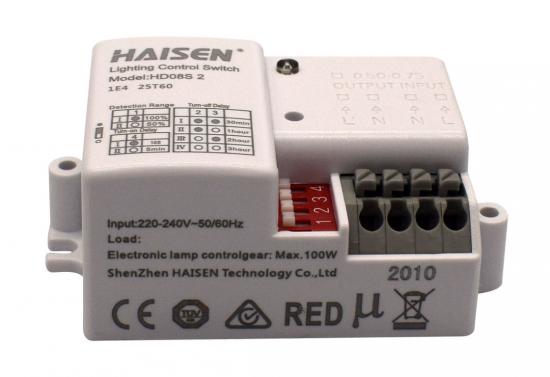

Microwave ON/OFF UV Light Sensor

Microwave ON/OFF UV Light Sensor is used in the disinfection lamp.The rader module detects that the disinfection lamp does not turn on when an object is moving,and the disinfection lamp turns on when no object is moving.

Brand:
HAISEN
Item NO.:
HD08S 2
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

Microwave ON/OFF UV Light Sensor

Features of ON/OFF Switch Sensor:

1. Smart sensor,light OFF when people approach and light ON after leaving.

2. Optional detection range, ON/OFF hold time.

3. Application: living room, cinema, office etc.

4. 5 years warranty.

Product Description of ON/OFF Switch Sensor:

Factory default setting: 100% detection area, 30min OFF hold time and 10s ON hold time.

Operating voltage	220-240VAC 50/60Hz
Connection mode	Amphenol connector(L,N,N,L')
Control load capacity	Impedance load(300W), capacitive load(100W)
Stand-by power	≤0.5W
Output control mode	ON/OFF
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Mounting height	2.5-5m/8.2-16.4ft
Detection range	Radius, 3-5m/9.84-16.4ft
Detection angle	30°-150°
Method of setting up	Dial code
Hold time	10s
Detection area	50%/100%
Tum-off delay	30min/1H/2H/4H
Tum-on delay	10s/5min
Certificate	CE RoHS
Operating temperature	-25°C~+60°C
IP grade	IP20

ON/OFF Control Detection Area Hold Time Warranty of 5 years

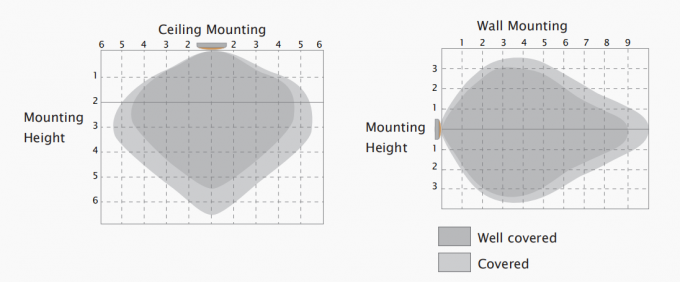

Detection Range of ON/OFF Switch Sensor

Mounting Height: 2-5M

The figure shows the detection range graph under the 100% sensitivity and 2-5M mounting height.

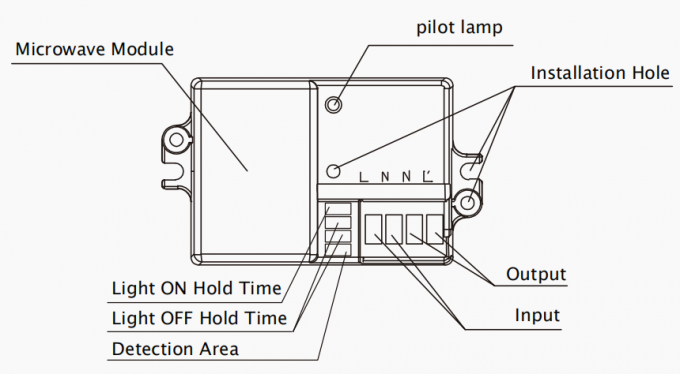

Mechanical structure of ON/OFF Switch Sensor

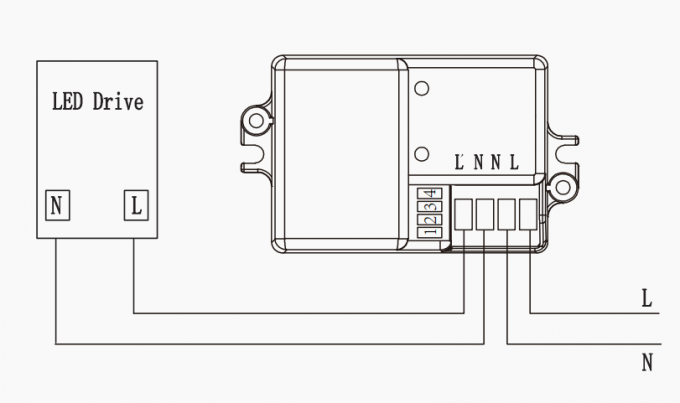

Wiring diagram of ON/OFF Switch Sensor

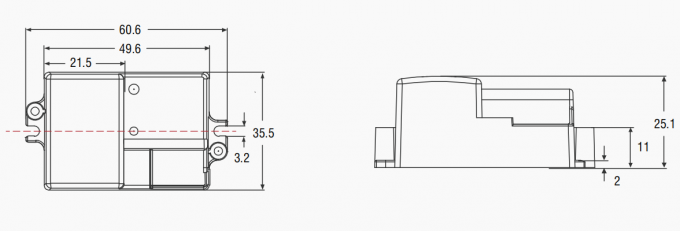

Dimensions of ON/OFF Switch Sensor(mm)

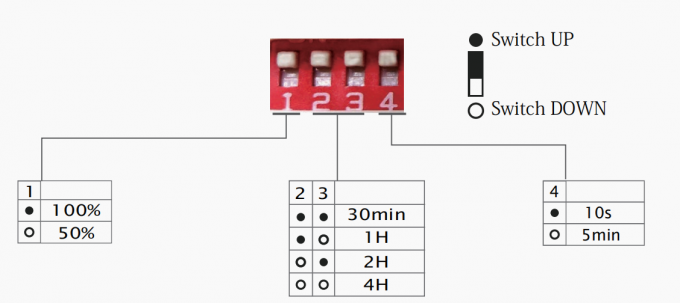

Settings:

By selecting the combination of the DIP switches,sensor will be precisely set for different applications.

Detection area:

It's detection range,or sensitivity. When people walk into detection area, sensor will be triggered to turn off the light automatically.

Light OFF Hold Time Setting:

The hold time that lamp keep ON until turn OFF.

Light ON Hold Time Setting:

When people leave the detection area, the hold time that lamp keep OFF until turn ON.

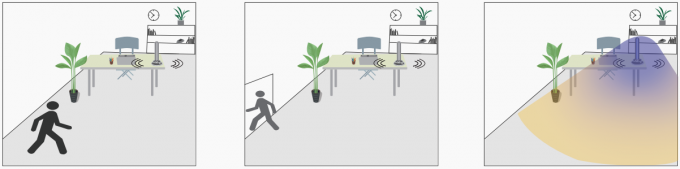

Application Demo of ON/OFF Switch Sensor

Light turn off when people Light keep off with 10s/5min After turned on, the UVC approach the detection after people leave and then lamp starts to work, the

area. turn on automatically. hold time can be set to 30min /1H /2H/3H/4H,and then turn off.

Remark of ON/OFF Switch Sensor:

1.This product is used in the disinfection lamp.The rader module detects that the disinfection lamp does not turn on when an object is moving,and the disinfection lamp turns on when no object is moving.(It is not recommended to use this product in the environment where there are people but no movement,to prevent the rader from not receiving the signal and the disinfection lamp turns on when people are present.)

2.After 10s of power on,if there is no object movement induction,turn on the light for 30min/1h/2h/4h,turn off the light and wait for the next induction;if there is motion sensing of the object,the light will be turned off when it is off,and the light will be turned on for 10s/5min after no one is induced.

3.The dialing code of 2 and 3 is delay turning off the light.When the light is on for a delay of 30min/1h/2h/4h(no induction midway),turn off the light and wait for the next induction.

4.The dialing code of 4 is delayed to turn on the light,and the delay is 10s/5min after no induction.
