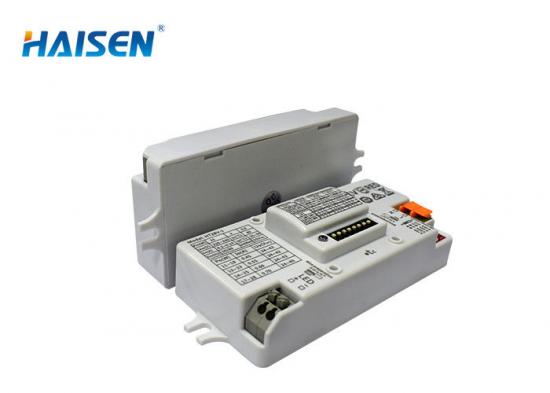

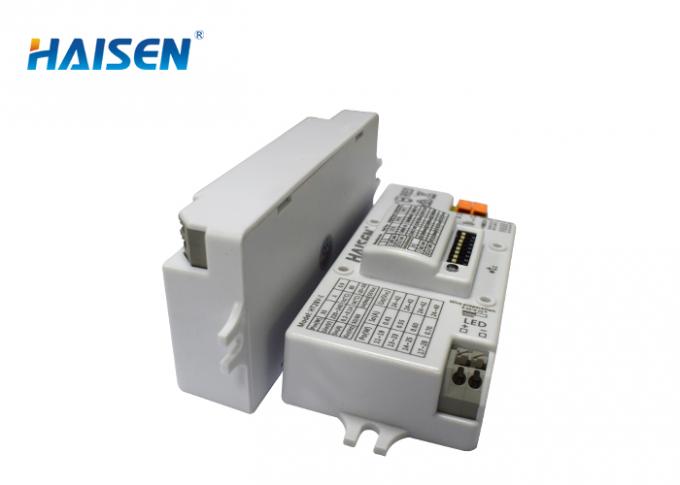

Ceiling Light Mounted LED Driver Sensor 28W Power 220-240VAC Operated
Brand:
HAISENItem NO.:
HT28V-IOrder(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCE TUV RED LED Driver Sensor 220-240VAC 28W Isolated Solution For Ceiling Light
Product Description
| Input voltage | 220~240VAC 50/60Hz |
| Input current | 0.2-0.14A Max |
| Input power | 33W Max |
| Detection area | 50%/100% |
| Hold time | 5s/90s/ 5min/10min |
| Daylight threshold | 2Lux /10Lux /50Lux/Disable |
| Stand-by period | 0s/10s/10min /+∞ |
| Stand-by dimming level | 10%/30% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Detection angle | 30°-150° |
| Mounting height | Max.6m |
| Detection range | Max.ø14m |
| Output LED current | 0.45A/0.55A/0.6A/0.7A |
| Output LED voltage | 24-42V/24-42V/24-42V/24-40V |
| Output LED power | 11-19W/13-23W/14-25W/17-28W |
| Empty load voltage | ≤55V |
| Power factor | ＞0.9 |
| Efficiency | 85% (Max.) |
| Operating temperature | Ta: -20°C+50°C Tc: 80°C |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP |
| EMC standard | EN55015 |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
| IP rating | IP20 |
| Life time | 30,000 hours |
| Warranty | 3 years |

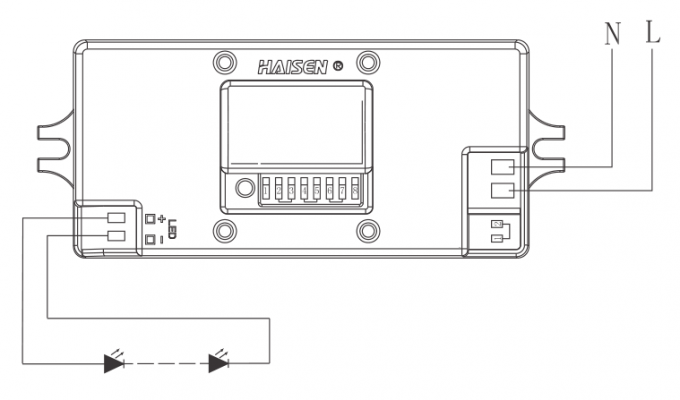

Wiring diagram

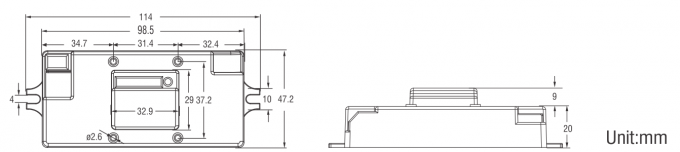

Mechanical structure(mm)

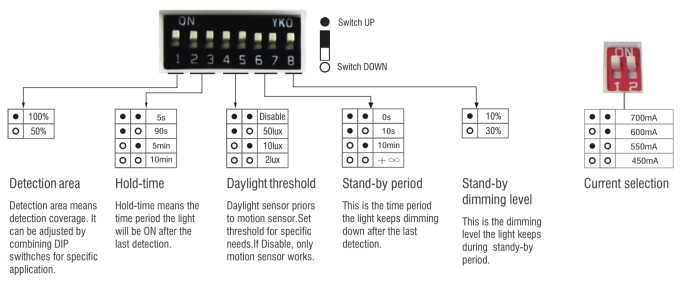

DIP Switch Setting

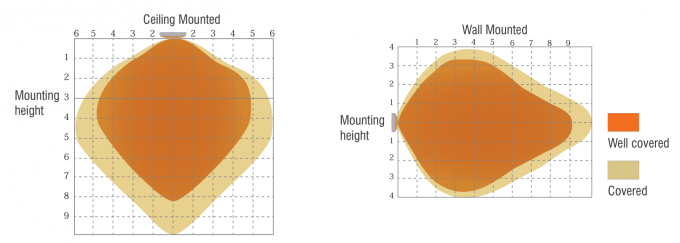

Detection coverage

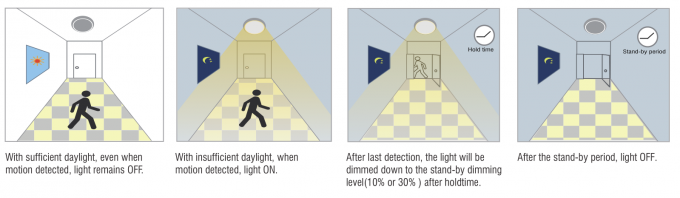

Demo

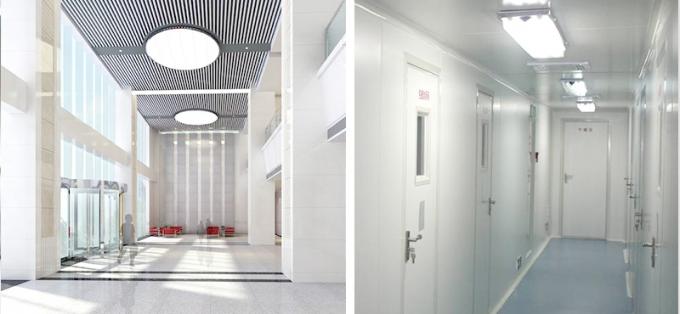

Application
