CE TUV RED Approved LED Driver Sensor High Power For Ceiling Light
Brand:
HAISENItem NO.:
HT16V 2Order(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCE TUV RED SAA Approved Round Design 120-240VAC LED Driver Sensor For Ceiling Light
Detailed Product Description
|
Input voltage |
120~240VAC 50/60Hz |
|
Input current |
0.3A Max |
|
Input power |
16W |
|
Detection area |
50%/100% |
|
Hold time |
5s/90s/ 5min/10min |
|
Daylight threshold |
2Lux /10Lux /50Lux/Disable |
|
Stand-by period |
0s/10s/10min /+∞ |
|
Stand-by dimming level |
10%/30% |
|
Microwave frequency |
5.8GHz±75MHz |
|
Microwave power |
<0.3mW |
|
Detection angle |
30°~150° |
|
Mounting height |
Max.6m |
|
Detection range |
Max.ø14m |
|
Output LED current |
0.3A/0.35A |
|
Output LED voltage |
30V~58VDC |
|
Output LED power |
9W~18W |
|
Empty load voltage |
≤63V |
|
Power factor |
≥0.9 |
|
Efficiency |
87% (Max.) |
|
Operating temperature |
-20°C~50°C Tc: 80°C |
|
Abnormal protection |
SCP:Auto recovery,OVP,OCP,OTP |
|
EMC standard |
EN55015 |
|
Safety standard |
EN61347-1 EN61347-2-13 EN60598-1 |
|
IP rating |
IP20 |
|
Life time |
30,000 hours |
|
Warranty |
3 years |

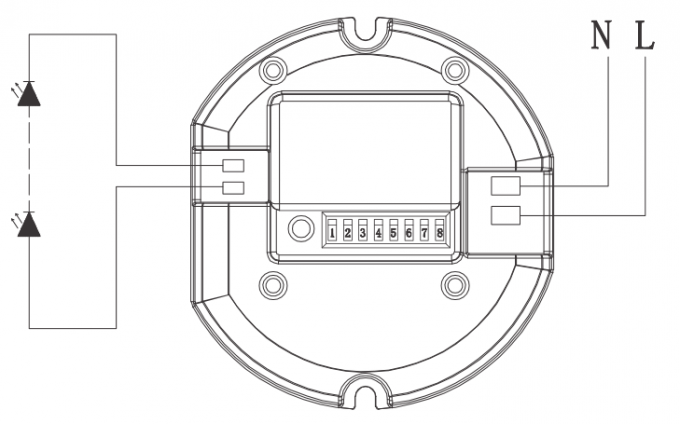

Wiring diagram

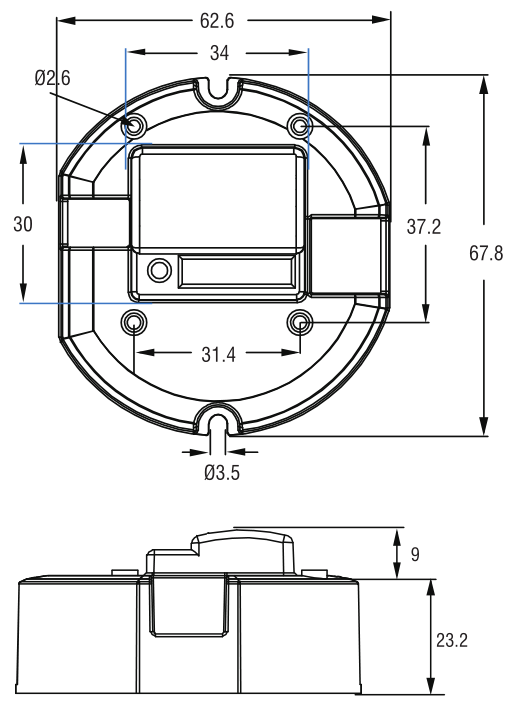

Mechanical structure(mm)

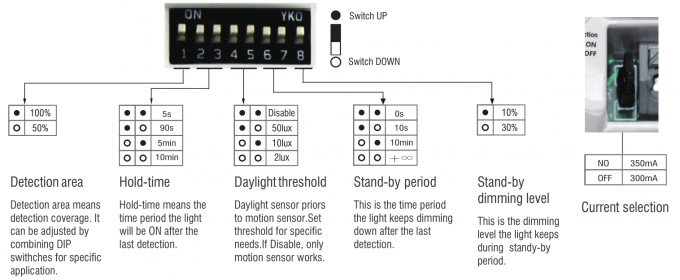

DIP Switch Setting

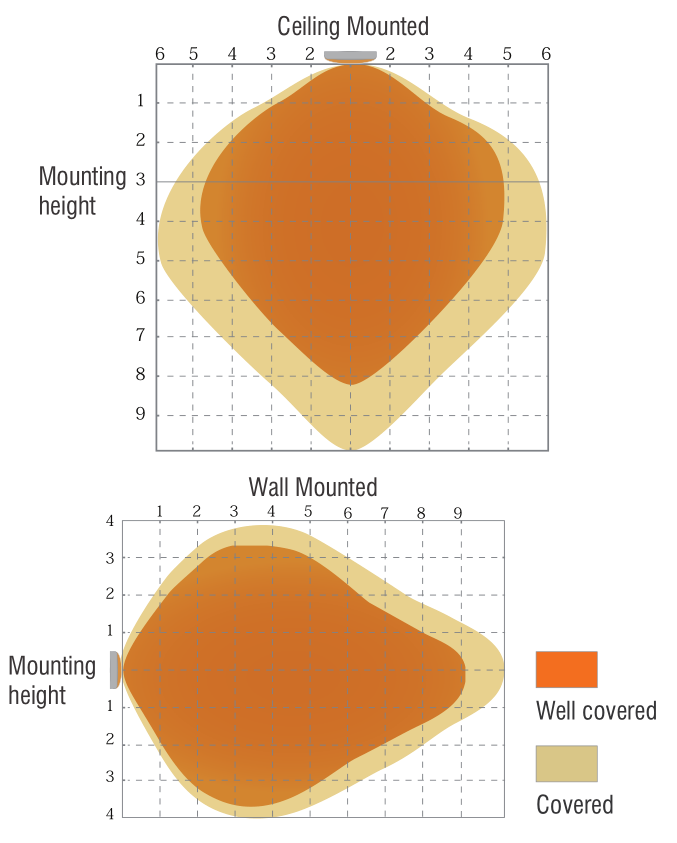

Detection coverage

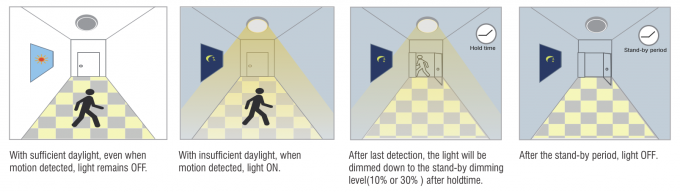

Demo

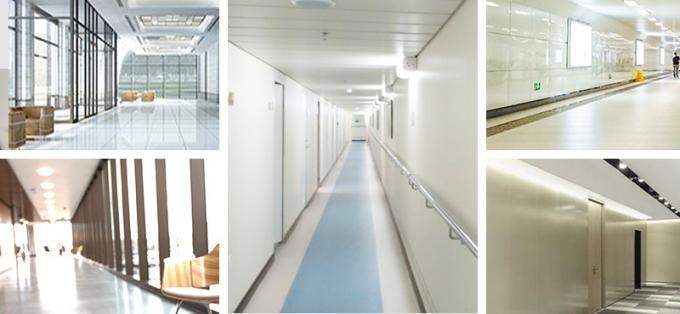

Application
