16W 2 in 1 Power Supply Driver with motion sensor for led Ceiling Light
Brand:
HAISENItem NO.:
HT16VOrder(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
CE,ROHS,TUV,RED16W 2 in 1 Power Supply Driver with motion sensor for led Ceiling Light
Features:
Detailed product information:
| Input voltage | 120~240VAC 50/60Hz |
| Input current | 0.3A Max |
| Input power | 16W |
| Detection area | 50%/100% |
| Hold time | 5s/90s/ 5min/10min |
| Daylight threshold | 2Lux /10Lux /50Lux/Disable |
| Stand-by period | 0s/10s/10min /+∞ |
| Stand-by dimming level | 10%/30% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Detection angle | 30°~150° |
| Mounting height | Max.6m(ceiling mounted);Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted);Max.10m(wall mounted) |
| Output LED current | 0.3A/0.35A |
| Output LED voltage | 24V~52V |
| Output LED power | 7W~16W |
| Empty load voltage | ≤63V |
| Power factor | ≥0.9 |
| Efficiency | 87% (Max.) |
| Operating temperature | -20°C~50°C Tc: 80°C |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP |
| EMC standard | EN55015 |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
| IP rating | IP20 |
Size information(based on mm)

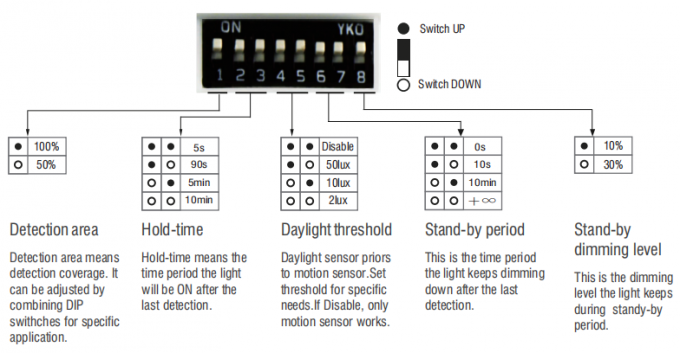

DIP Switches
No. 1 - Detection area
No. 2 and 3- Holdtime
No. 4 and 5 - Daylight Threshold
No.6 and 7. - Standby period
No.8 - Standby diming level
Current Selection: Plug-in Pin
Working Cycle:
The light will turn on when people walk into the detection range; after people leave, the light will keep for some time, as we called "Holdtime"; After "Holdtime", the light will give low output and keep for a while, as called "standby dimming" and "Standby Period"; After Standby period, the light will turn off.
Application:
Suitable for ceiling light, good for indoor residential lighting and commercial lighting, for example the intelligent office.
We are committed to providing high quality and more innovative microwave sensors and intelligent control products.
If you might be interested in this or any other related products, please feel free to contact us.
