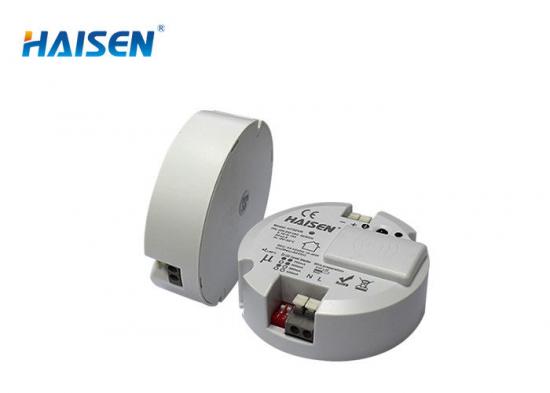

Dimmable Sensor LED Driver Remote Contol Microwave Movement Senor
Brand:
HAISENItem NO.:
HT30VROrder(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
CE,ROHS,TUV,REDDimmable Sensor LED Driver Remote Contol Microwave Movement Senor
Features:
Specification
| Sensor Parameters | Mounting height | Max.6m(ceiling mounted) Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) | |
| Empty load voltage | ≤60V DC | |
| Power factor | ≥0.9 | |
| Efficiency | 89% (Max.) | |
| Detection area | 50%/100% | |
| Hold time | 5s/90s/ 5min/10min | |
| Daylight threshold | 2Lux /10Lux /50Lux/Disable | |
| Stand-by period | 0s/10s/10min /+∞ | |
| Stand-by dimming level | 10%/30% | |
| Detection angle | 30°~150° | |
| Input | Input voltage | 220~240VAC 50/60Hz |
| Input current | 0.3A-0.15A | |
| Input power | 35 W | |
| Microwave frequency | 5.8GHz±75MHz | |
| Microwave power | <0.3mW | |
| Output | Output LED current | 0.45A/0.55A/0.60A/0.70A ±5% |
| Output LED voltage | 33V~43V DC | |
| Output LED power | 30W | |
| Others | Operating temperature | Ta:- 20°C~50°C Tc: 85°C |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP | |
| EMC standard | EN55015 | |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 | |
| IP rating | IP20 | |
| Life time | 50,000 hours | |
| Warranty | 3 years |
Wiring diagram

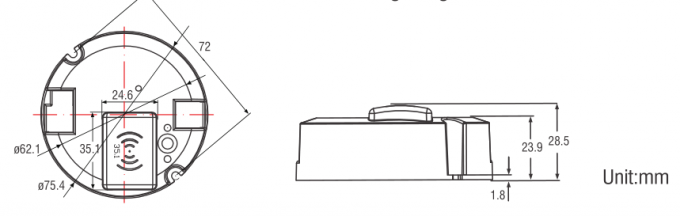

Mechanical structure(mm)

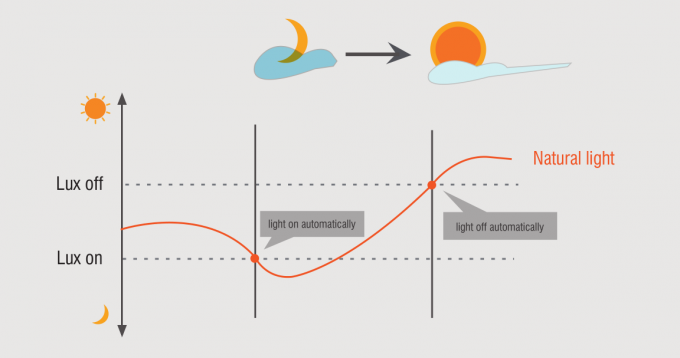

Lux on/off
Preconditions to use the Lux-off function:
1. Standby period is +∞;
2. Standby dimming level is on 10% , 20% or 30%;
3. Daylight threshold is on 2Lux, 10Lux, 20Lux or 50Lux.

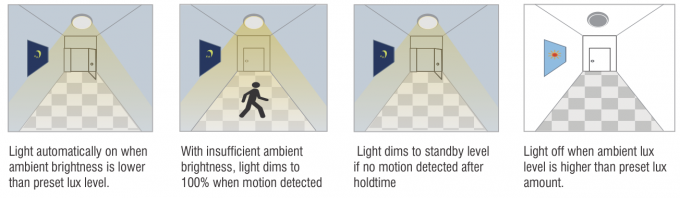

Demo

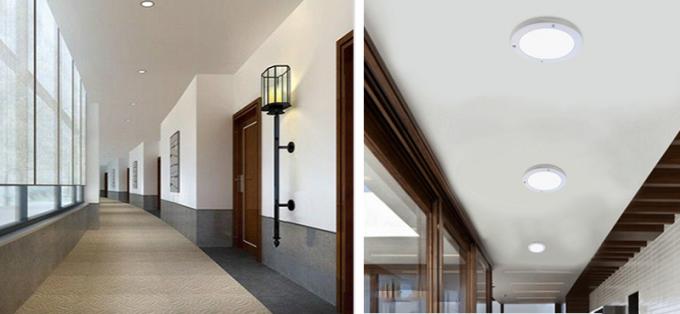

Application
