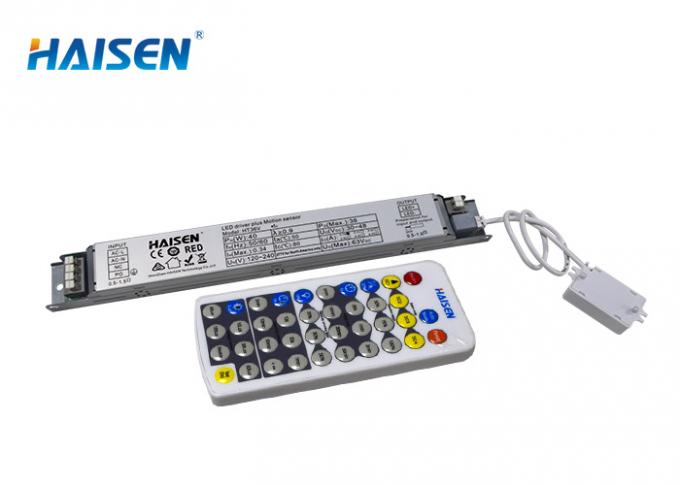

Detachable Remote Control Setting LED Driver Sensor
Brand:
HAISENItem NO.:
HT36VOrder(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
CE,ROHS,TUV,REDDetachable Remote Control Setting LED Driver Sensor
Features:
Specification
| Output | Output LED current | Max. 0.75A |
| Output LED voltage | 30-48VDC | |
| Output LED power | 36W | |
| Input | Input voltage | 120~240VAC 50/60Hz |
| Input current | 0.34-0.18A Max | |
| Input power | Max. 40W | |
| Microwave frequency | 5.8GHz±75MHz | |
| Microwave power | <0.3mW | |
| Sensor Parameters | Hold time | 5s/30s/1min/3mib/5min/10min/20min/30min |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable | |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ | |
| Stand-by dimming level | 10%/20%/30%/50% | |
| Detection angle | -20°C~50°C Tc: 80°C | |
| Mounting height | Max.6m/19.68ft | |
| Detection range | Max.ø14m/45.92ft | |
| Empty load voltage | ≤63V DC | |
| Power factor | ≥0.9 | |
| Efficiency | 87% (Max.) | |
| Detection area | 25%/50%/75%/100% | |
| Others | IP rating | IP20 |
| Life time | 50,000 hours | |
| Warranty | 3 years | |
| Installation | Installed inside lamps | |
| Package requirement | Bubble pack, paper flat, outer carton | |
| Operating temperature | Ta:- 20°C~50°C Tc: 85°C | |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP | |
| EMC standard | EN55015 | |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |

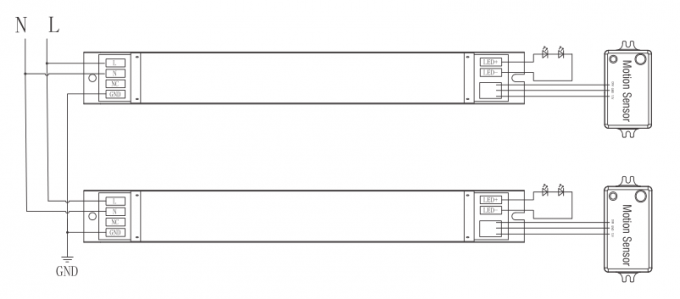

Wiring diagram

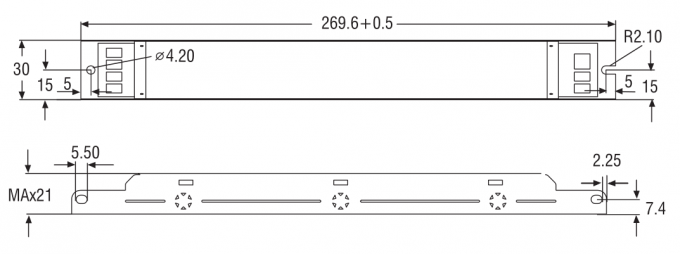

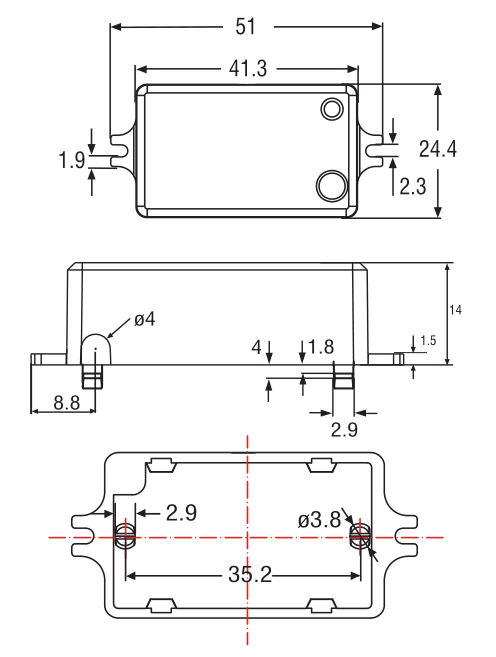

Mechanical structure(mm)

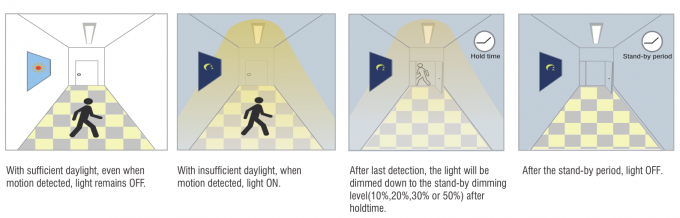

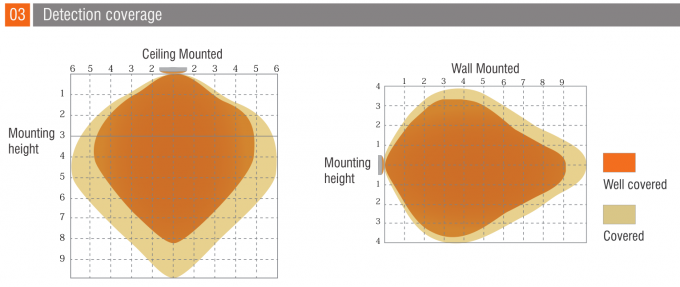

Detection coverage
Demo

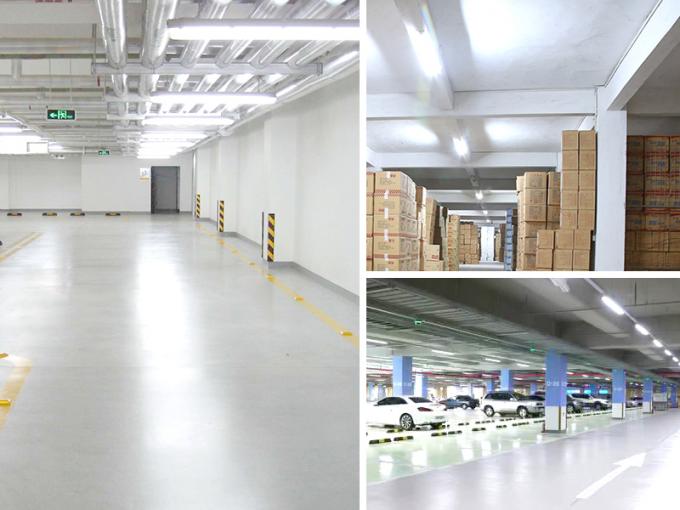

Application
