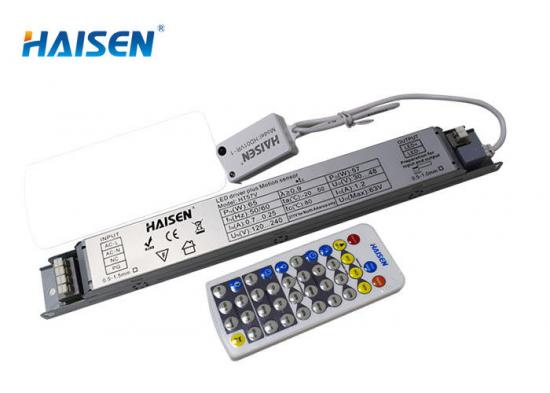

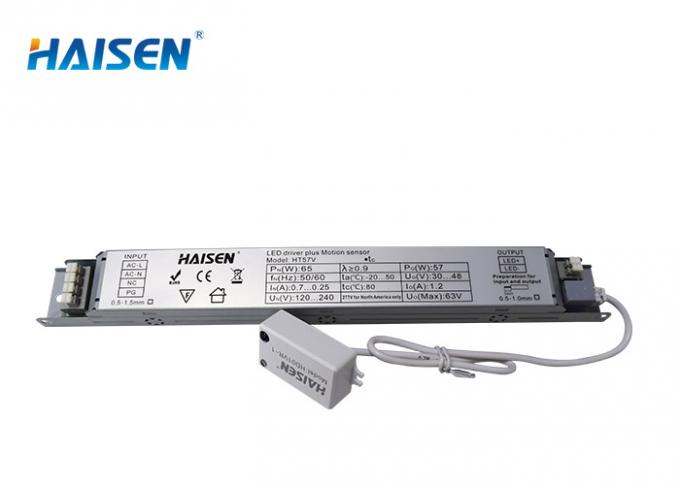

57W LED Driver Microwave Movement Sensor with Remote Control
Brand:
HAISENItem NO.:
HT57VOrder(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCertification:
CE,ROHS,TUV,RED57W LED Driver Microwave Movement Sensor with Remote Control
Feature:
Product Description
| Microwave frequency | 5.8GHz±75MHz |
| Detection area | 25%/50%/75%100% |
| Detection angle | 30°-150° |
| Microwave power | <0.3mW |
| Operating temperature | ta:-20°C~50°C Tc: 80°C |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Input current | 0.7A Max |
| Input power | 65W Max |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable |
| Input voltage | 120~240 ~277VAC 50/60Hz |
| Stand-by period | 0S/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP |
| EMC standard | EN55015 |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
| Mounting height | Max.6m |
| Detection range | Max.ø14m |
| Output LED current | (Max) 1.2A |
| Output LED voltage | 30V-48V DC |
| Output LED power | (Max) 57W |
| Empty load voltage | ≤63VDC (Max) |
| Power factor | ≥0.9 |
| Efficiency | 87% (Max.) |
| IP rating | IP20 |
| Approval | CE TUV RED |
| Installation | Installed inside lamps |
Wiring diagram

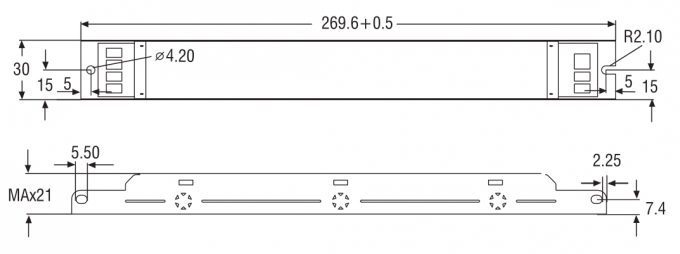

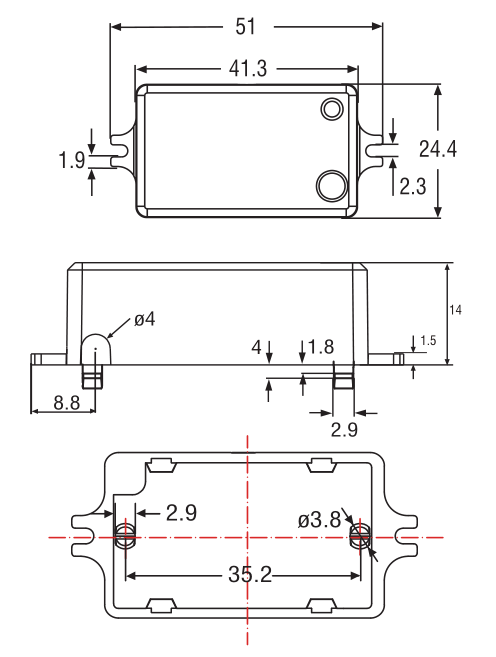

Mechanical structure(mm)

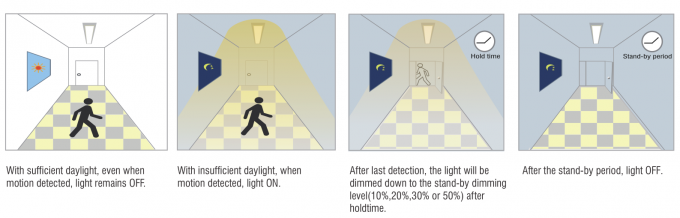

Detection coverage
Demo

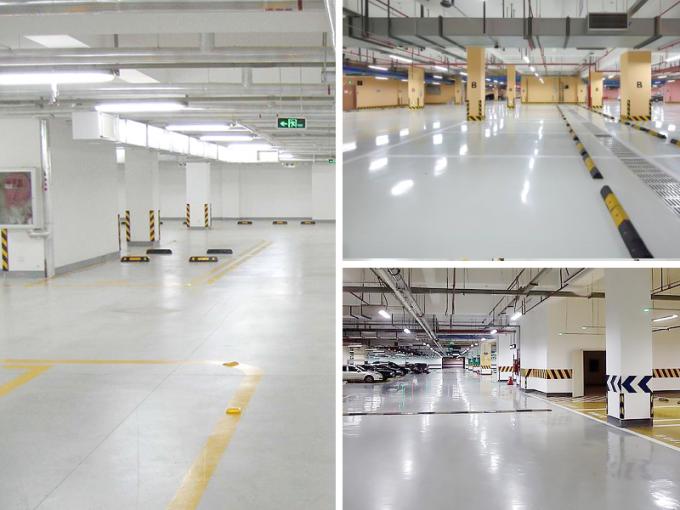

Application
