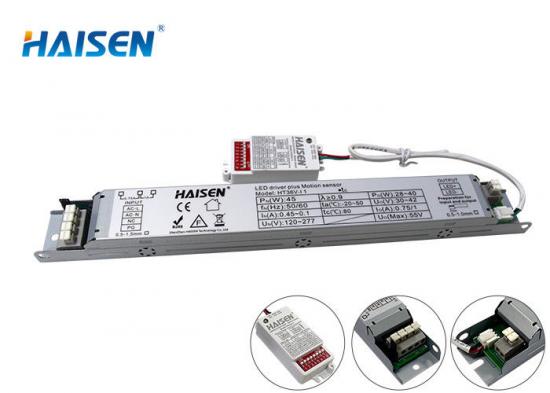

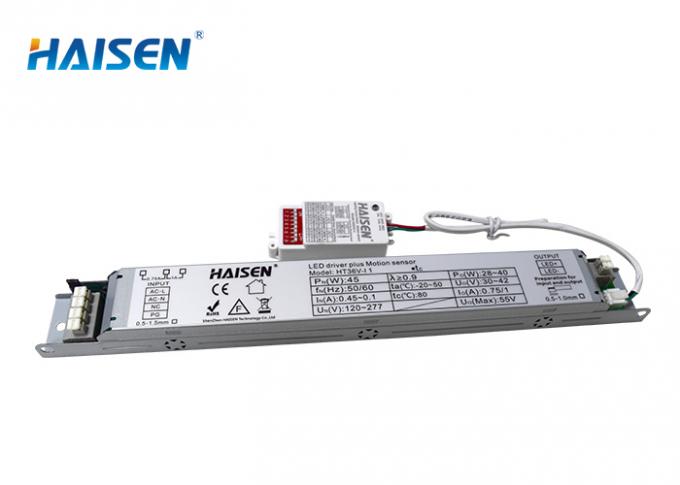

36W Isolated Solution Sensor with DIP switch Setting

Brand:
HAISEN
Item NO.:
HT36V-I 1
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China
Certification:
CE,ROHS,TUV,RED

Product Detail

Features:

High frequency 5.8GHz, input power 45W Max, output power 36W Max.
Dimming function and DIP switch control.
The isolated solution can protect the power supply and lamps.
36W detachable design, easy installation, workable for tri-proof light.
LED driver sensor.

Product Description

Input	Microwave frequency	5.8GHz±75MHz
	Microwave power	<1mW
	Input voltage	120~240VAC 50/60Hz
	Input current	0.1-0.45A Max
	Input power	Max. 45W
Output	Output LED power	Max. 36W
	Output LED current	0.75A/1A ±5%
	Output LED voltage	27-42VDC
Sensor Parameters	Empty load voltage	≤55V DC
	Detection angle	30°-150°
	Hold time	5s/30s/1min/5min
	Detection area	50%/100%
	Daylight threshold	2Lux/10Lux/50Lux/Disable
	Stand-by period	0s/30s/5min/+∞
	Stand-by dimming level	10%/30%
	Power factor	≥0.9
	Efficiency	80% (Max.)
	Mounting height	Max.6m/19.68ft
	Detection range	Max.ø14m/45.92ft
Others	Operating temperature	-20°C~50°C Tc: 80°C
	Abnormal protection	SCP:Auto recovery,OVP,OCP,OTP
	EMC standard	EN55015
	Safety standard	EN61347-1 EN61347-2-13 EN60598-1
	Approval	CE RoHS
	Installation	Installed inside lamps
	Package requirement	Bubble pack, paper flat, outer carton
	IP rating	IP20
	Life time	50000h
	Warranty	3 years

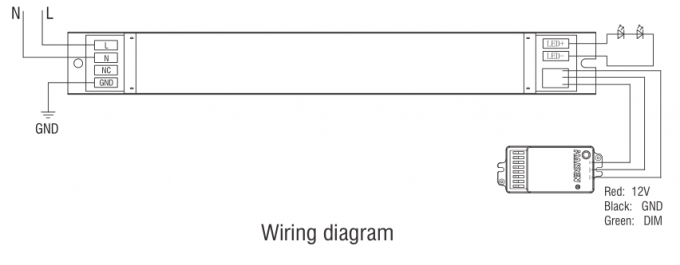

Wiring diagram

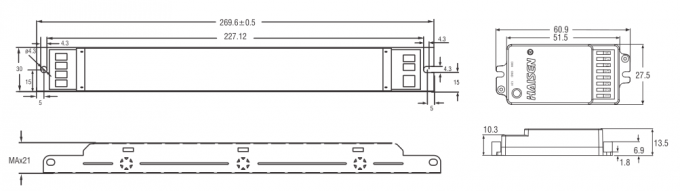

Mechanical structure(mm)

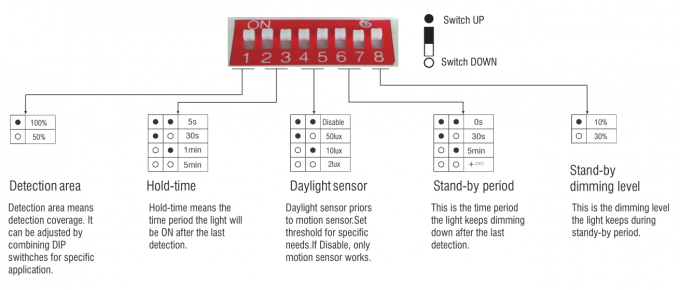

DIP Switch Setting

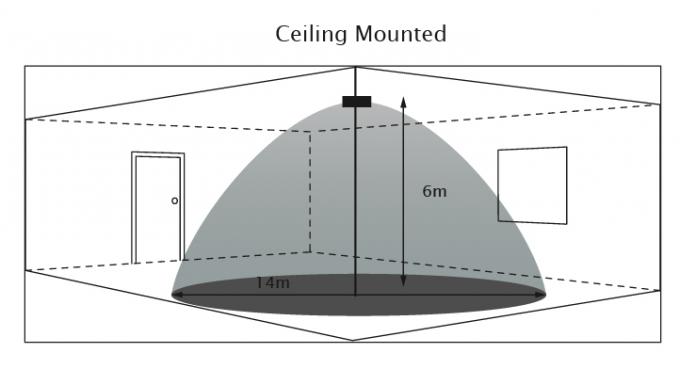

Detection coverage

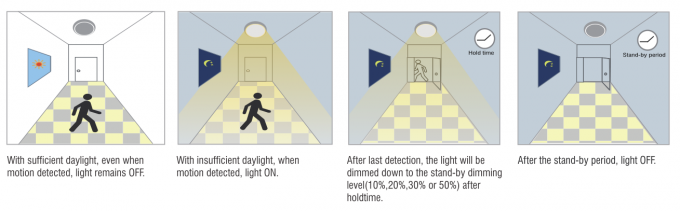

Demo

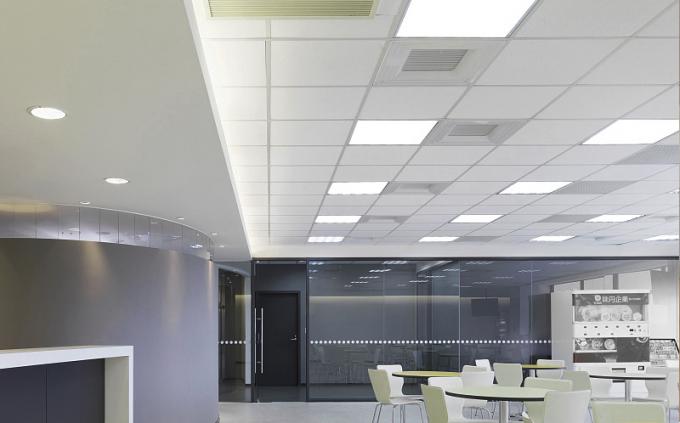

Application
