Compact Size 5.8GHz Microwave UV Light Sensor

The light will keep OFF with After the indicator flashes for (15s/20s/30s/60s) after 5s,the UVC lamp start to work.people leave. After then, the After the work time, Light OFFindicater will flash for 5s. until next movement detected. by recycling.

Brand:
HAISEN
Item NO.:
HD410S 4
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

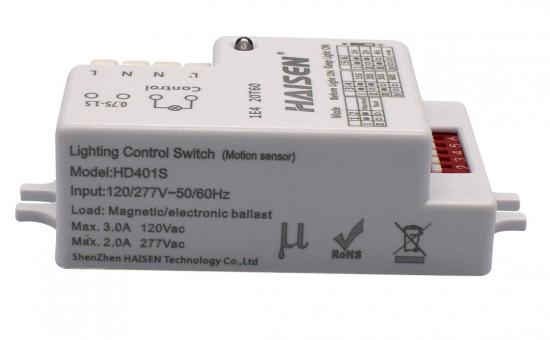

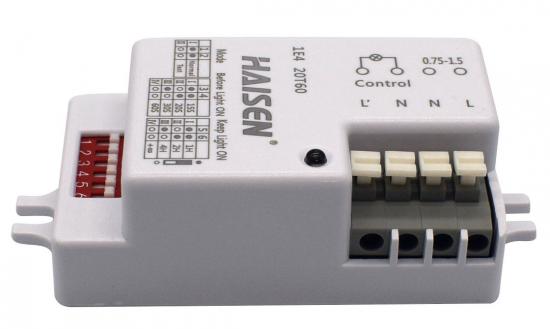

Compact Size 5.8GHz Microwave UV Light Sensor

Features of ON/OFF Switch Sensor:

1. Smart sensor,light OFF when people approach and light ON after leaving.

2. Optional detection range, ON/OFF hold time.

3. Application: living room, cinema, office etc.

4. 5 years warranty.

Product Description of ON/OFF Switch Sensor:

Operating voltage	120-277VAC 50/60Hz
Connection mode	Terminal block(L,N,N,L')
Control load capacity	Max,3.0A @120Vac, Max, 2.0A@277Vac
Stand-by power	≤1W
Output control mode	ON/OFF
Microwave frequency	5.8GHz±75MHz
Microwave Power	<0.3mW
Mounting Height	0.5-1.2m/1.64-3.94ft(On the table)
Detection Range	Diameter,12m*Height 1.2m(Max.)
Detection angle	30°-150°
Method of setting up	Dial code
Mode	Normal/Test
Hold time	15s
Work time	1H/2H/4H/+∞
Hold Time before light ON	15s/20s/30s/60s
Certificate	CE RoHS
Operating Temperature	-20°C~+60°C
IP grade	IP20
Warranty	5 years

ON/OFF Control Detection Area Hold Time Warranty of 5 years

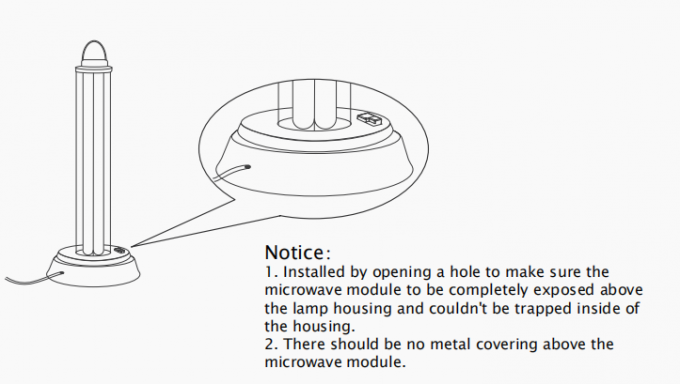

Installation Method of ON/OFF Switch Sensor:

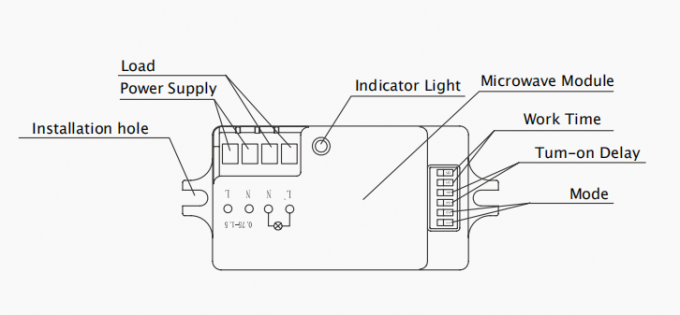

Mechanical structure of ON/OFF Switch Sensor

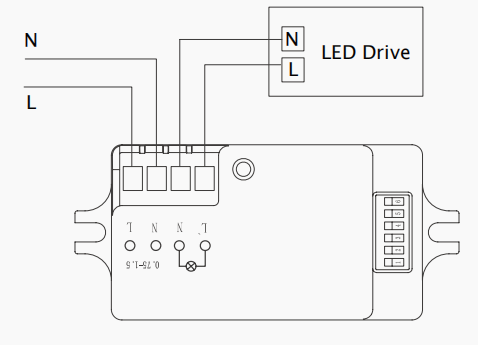

Wiring diagram of ON/OFF Switch Sensor

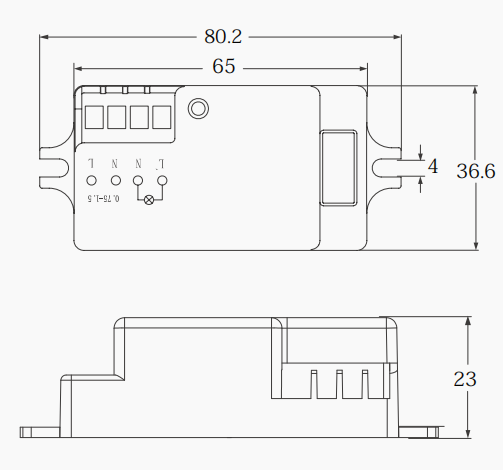

Dimensions of ON/OFF Switch Sensor(mm)

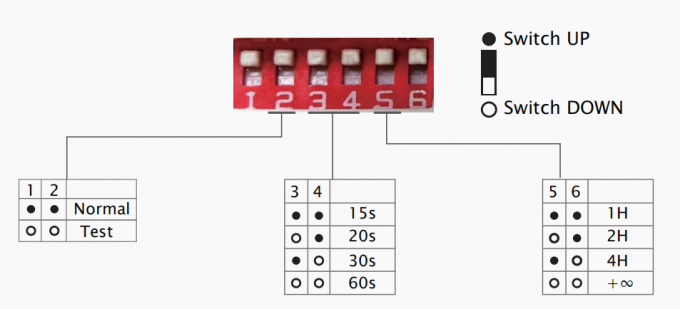

Settings:

By selecting the combination of the DIP switches,sensor will be precisely set for different applications.

Mode:

Dial 1 and 2 simultaneously for test mode,Turn on the power and the green light is on for 10s to 5s and flicker(the ralay's closing light is on and the green light is off,and the relay is disconnected after the induction is triggered);

Long green light(at this time,if there is no induction trigger,the process of returning to power on will start with 10s long light and 5s flashing)

Before light ON:

When people leave the detection area,the hold time before light ON.

Work time:

The UV work time.

Features:

1. When the DIP switch are all dialed to UP, the green indicator will keep ON for 3 minutes, then flashes 5s to warn that the UVC lamp will start to work, the light will keep ON for 15 minutes if there isn't any movement detected.

2. When detect movement, the UVC lamp will turn OFF and green indicator will keep ON and start counting the delay turn on time, after then, flashes 5s to warn that the UVC lamp will start to work, such a cycle.

3. When DIP switch number 4/5/6 are set to "DOWN", it's test mode: the green indicator light will keep ON for 10s and then flash 5s to warn that the UVC lamp will start to work as well as the green indicator light turn off until any movement detected, then UVC light turn off and green indicator light turn on. If no movement detected then, it will return to the mode that green indicator keep ON for 10s and flash 5s to warn.

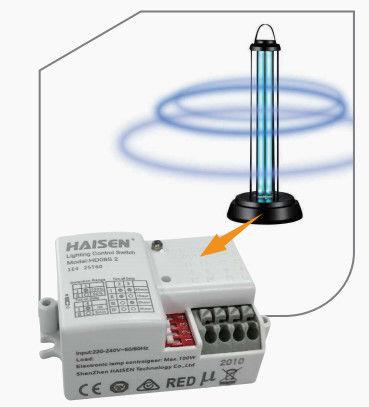

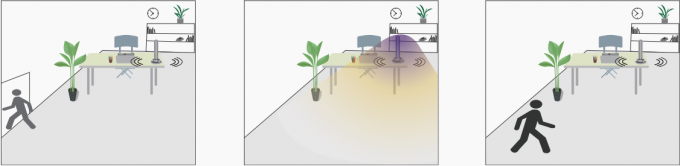

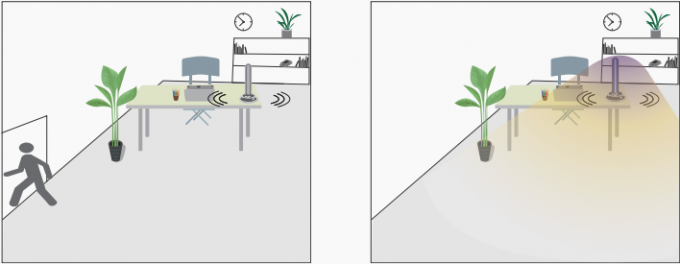

Application Demo of ON/OFF Switch Sensor

After power ON, the indicater After the 5s alarming time, When the sensor detect any will keep ON for 10s, then the UV lamp starts to work, movement during the work flashes 5s to alarm the UV work time could be set to time,it will go off

Lamp will start to work and 1H/2H/4H. Then turn OFF automatically and the indicator,people should leave the after the work time.When will keep ON always.

area. the work time is set with +∞, the light won't turn off until the next detection.

The light will keep OFF with After the indicator flashes for (15s/20s/30s/60s) after 5s,the UVC lamp start to work.

people leave. After then, the After the work time, Light OFF

indicater will flash for 5s. until next movement detected.

by recycling.

Hot Tags :

UV occupancy Sensor UV Light Sensor 300W Switch UV Light Sensor

Next:
Dual Control UV Light Sterilization Lamp Microwave Sensor

Leave A Message

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Subject : Compact Size 5.8GHz Microwave UV Light Sensor
Refresh the image

Categories

New Products

Related Products

220-240VAC Ceiling Mounted UV Light Sensor ON/OFF Fuction

220-240VAC Ceiling Mounted ON/OFF Fuction Sterilization Lamp Application

Microwave ON/OFF UV Light Sensor

Microwave ON/OFF UV Light Sensor is used in the disinfection lamp.The rader module detects that the disinfection lamp does not turn on when an object is moving,and the disinfection lamp turns on when no object is moving.

5.8GHz On/Off Function UV Light Sensor For Sterilizing Lamp

The indicator light will flash when the sensor receives the signal during setting, indicating that the setting is successful.

Dual Control UV Light Sterilization Lamp Microwave Sensor

Dual Control UV Light Sterilization Lamp Microwave Sensor Suitable for indoor installation to avoid false triggering due to external factors such as rain, wind or tree swing.

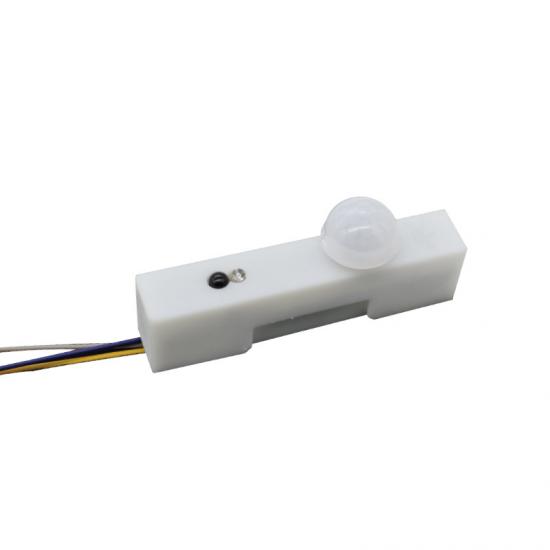

PIR SENSOR

PIR Panel SENSOR

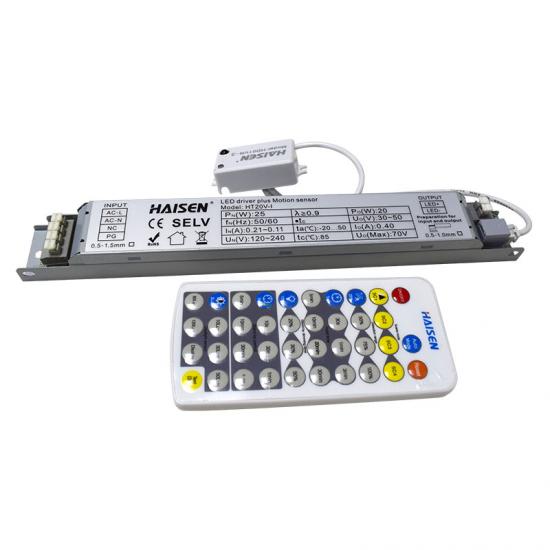

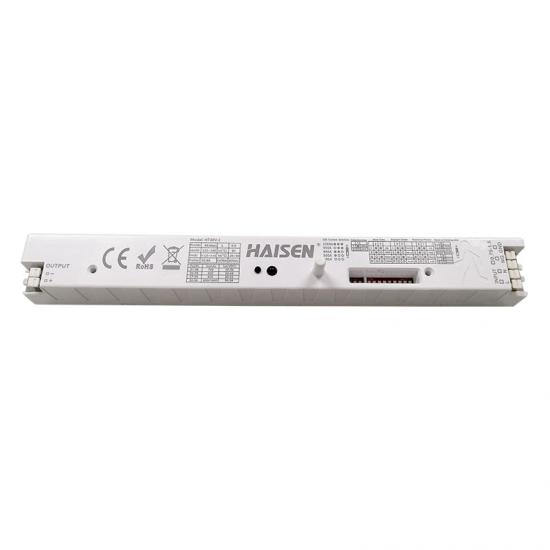

40W Isolated LED Driver sensor
