15m Small DC Detector Driveway Motion Sensor

15m Small DC Detector Driveway Motion Sensor 10 - 15VDC Operating Voltage

HD06VCRH 3- IP65 Dimmable Function Detector RED CE 15M Highbay Installation Waterproof Sensor with 12VDC Input For Shoebox / UFO / Solar Light.

Features:

1. Waterproof Dimming detector.

2. DC Input with Low voltage for widely using of Solar light.

3. IP65 outdoor installation like Gym, Street light etc.

4. Daylight priority to detect natural light priority than detecting artificial light.

5. RED CE certificate

6. Max.15M height installation in warehouse.

7. Remote control setting parameters.

Detailed Product Description

PLUG & PLAY DESIGN

Dusk/Dawn sensor:
Dual-PD technology brings a fully automatic dusk/dawn sensor which can tell the difference between natural light and LED light, to ensure the light will be off when needed.

With Daylight priority function, HD06VCRH 3 is able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level.

Precondition of Daylight priority:
1. Standby period is +∞;
2. Standby dimming level is on 10%, 20% or 30%;
3. Daylight threshold is on 30Lux, 50Lux, 80Lux or 120Lux.

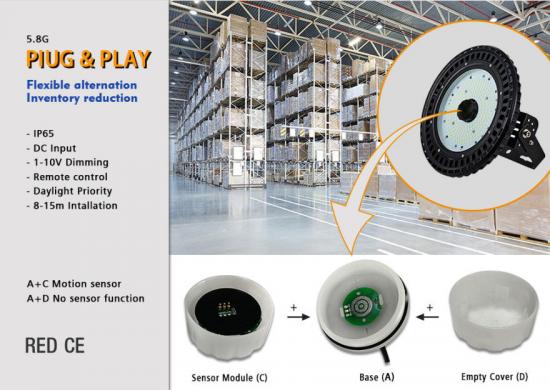

PLUG & PLAY DESIGN

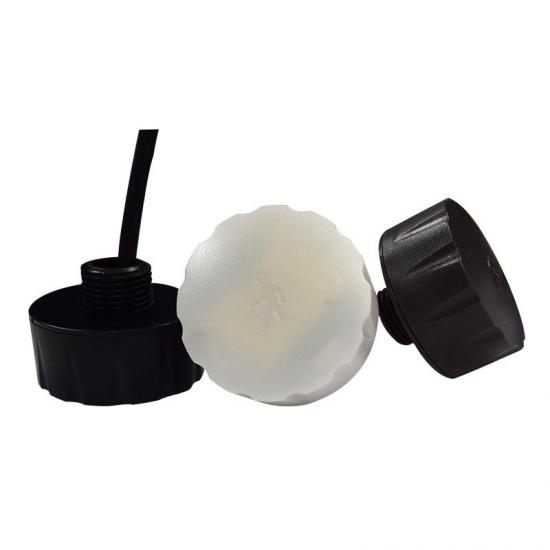

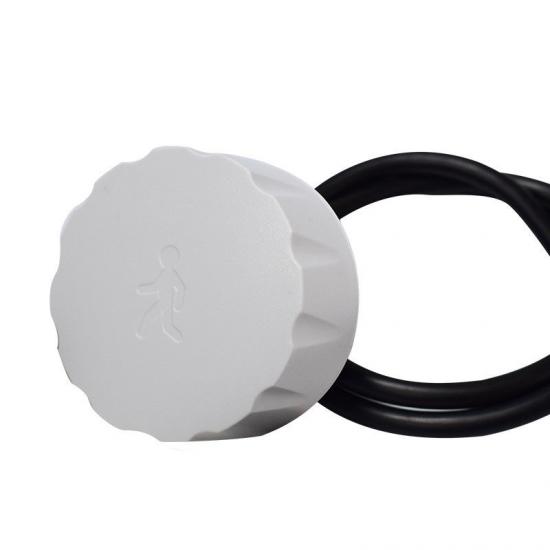

The cover with humanoid icon indiacates there is built-in microwave module with sensor function. The cover without hamuanoid icon indiacates there is no module as well as sensor function.

The bottom part will be always on the lighting fixtures; if the function is needed, the module will be placed inside; if no function needed, the module will be removed. It doesn't hurt the looking of the whole pack.

Detection coverage

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 8-15m.

Application Demo

1. Automatically ON/OFF function:
Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.

3. Function Demo - Dimmable control/Corridor function

Application

1. Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
