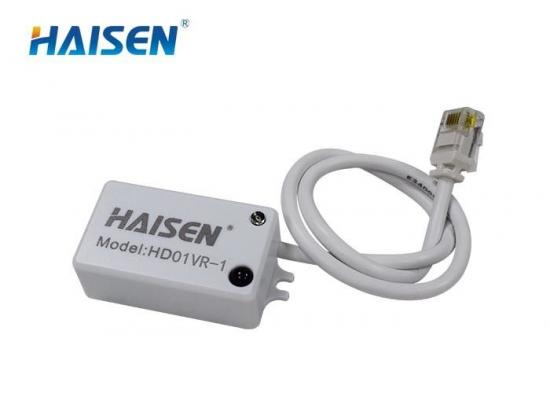

CE Approved 12VDC Remote Control Small Sensor For Linear Light
Brand:
HAISENItem NO.:
HD01VR-1Order(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCE Approved 12VDC Remote Control Small Sensor For Linear Light
Features:
Product Description
| Operating voltage | 12 VDC |
| Operating current | 30mA±5% |
| Output | 5V PWM/5V TTL |
| Stand-by power | <0.5W |
| Detection area | 25%/50%/75%100% |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable |
| Stand-by period | 0S/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Mounting height | Max.6m(ceiling mounted) Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) |
| Operating temperature | -20°C~+55°C |
| IP rating | IP20 |
| Life time | 50,000 hours |
| Warranty | 5 years |
