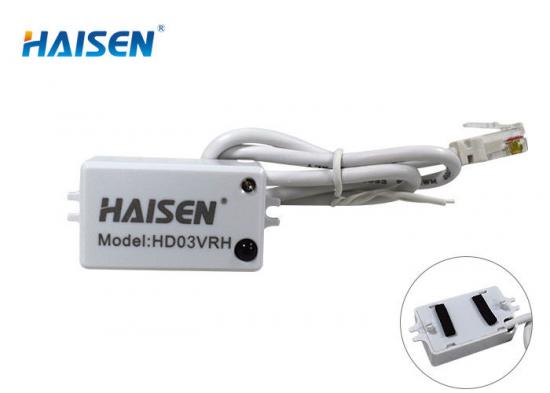

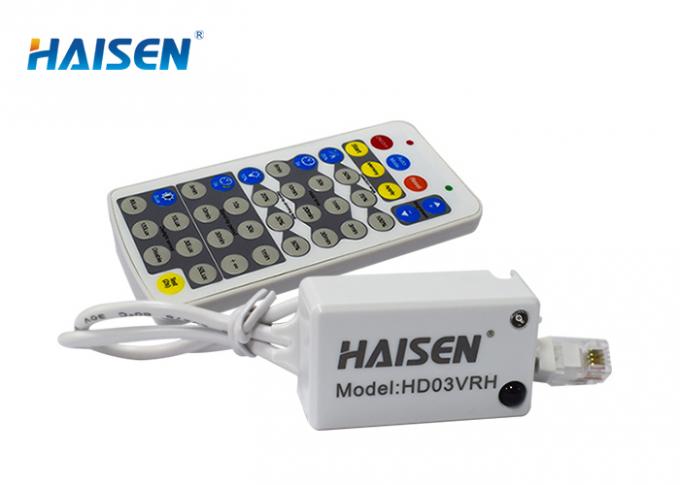

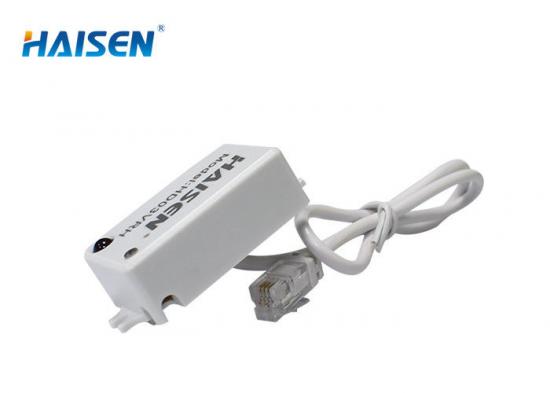

Compact Design 12VDC High Bay Motion Sensor 50000 Hours Long Service Life
Brand:
HAISENItem NO.:
HD03VRHOrder(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaCompact design 12VDC input remote control 15M max installation motion sensor
Features:
Specifications:
| Operating current | 12 VDC |
| Operating voltage | 30mA±5% |
| Output | 5V PWM/5V TTL |
| Satnd-by power | ‹0.5W |
| Detection area | 25%/50%/75%/100% |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Micrrowave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |

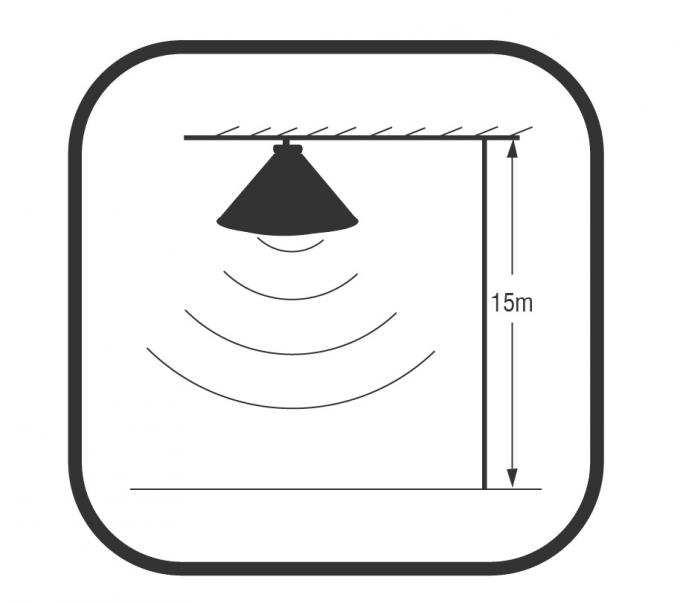

| Mounting height | Max.15m/49.2ft(ceiling mounted) |
| Detection range | Max.14m/45.92ft(ceiling mounted) |
| Control lline | Red 12v;Black GND;White NULL;Yellow 5v PWM/5V TTL |
| Detection angle | 30°-150° |
| Operating temperature | -20℃-+60℃ |
| Certificate | RoHS CE |
| Lifetime | 50000 hours |
| IP rating | IP 20 |
ON/OFF Daylight sensor Detection area Hold time Warranty 5 years Remote control
Stand-by period Stand-by 10-15M Highbay
dimming level

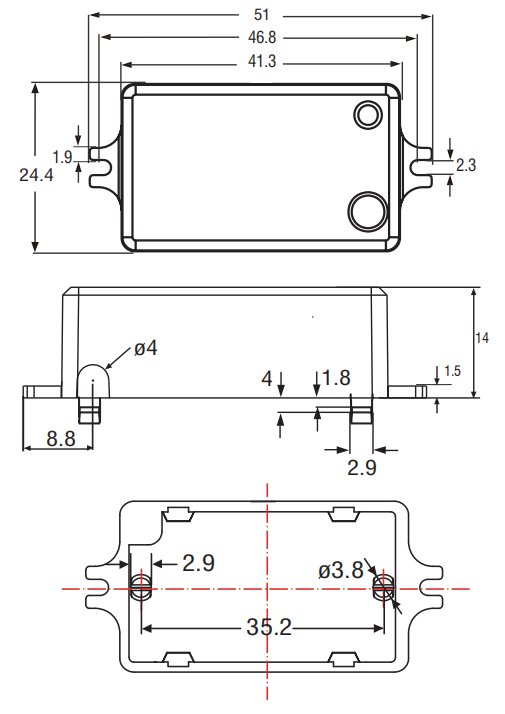

Dimensions:

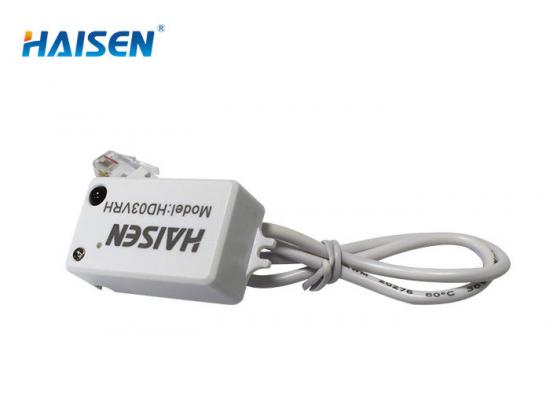

Ultra compact design design with size of 51 X 24.4X 14mm which could be easily installed.

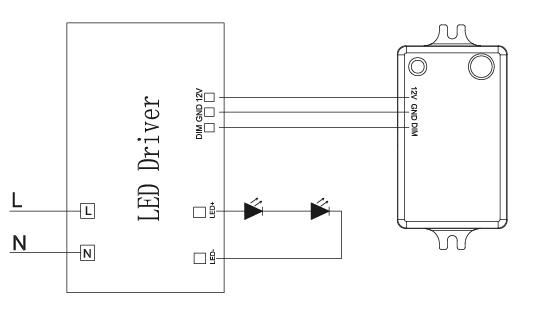

Wiring Diagram:
Connecting with LED Driver which make it very easy to be assembled.

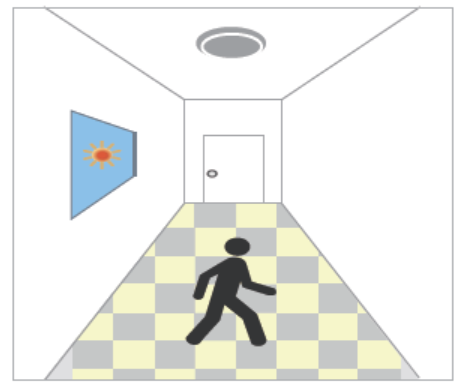

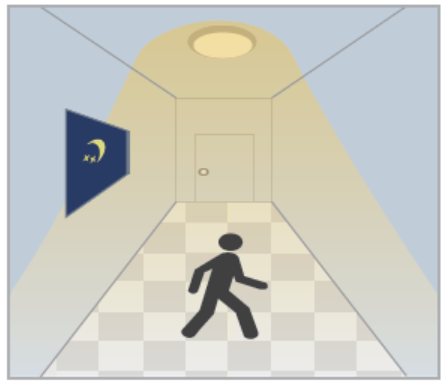

Application Demo - Function Demo-On/off control:

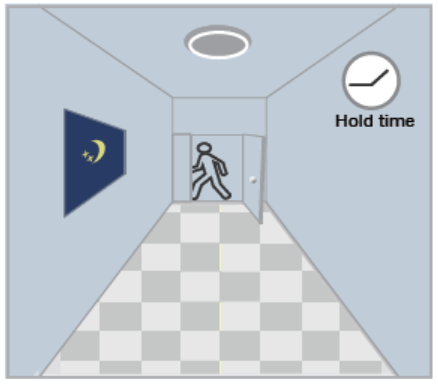

With sufficient daylight, With insufficient daylight, After last detection,the light will be
even when motion when motion detected, dimmed down to the stand-by dimming
detected, light remains OFF light ON. level after holdtime.

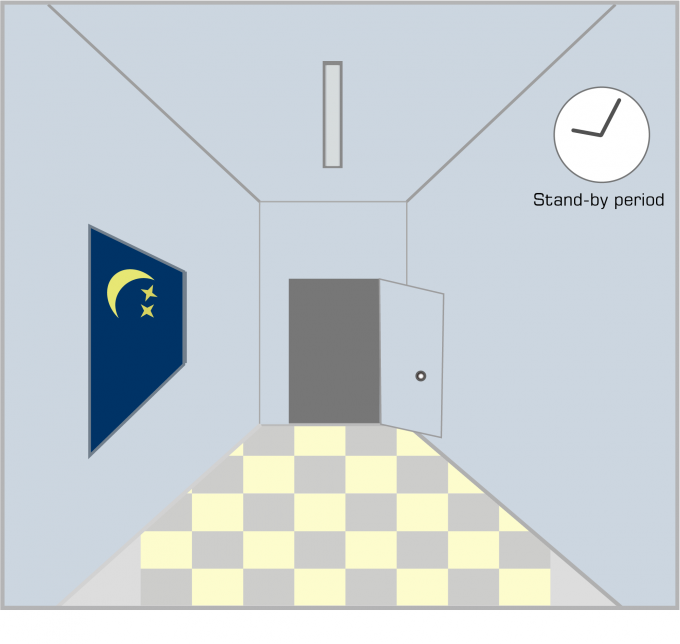

After the stand-by period,
light OFF.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
