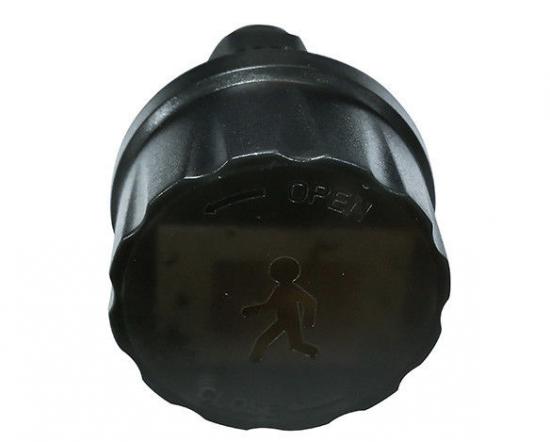

10.5-15DC Input 1-10V Dimming Motion Sensor For Highbay Light

10.5-15DC Input 1-10V Dimming Motion Sensor For Highbay Light

Daylight Priority of DC sensor:

Dusk/Dawn sensor:

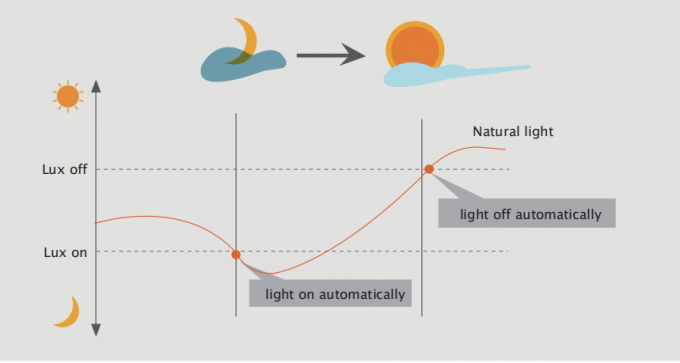

Dual-PD technology brings a fully automatic dusk/dawn sensor which can tell the

difference between natural light and LED light, to ensure the light will be off when needed.

Precondition of Daylight priority:

1. Daylight threshold is on 30Lux/50Lux/80Lux/120Lux;

2. Standby period is +∞ ；

3. Standby dimming level is on 10%/20%/30%.

Application____Daylight priority:

Daylight threshold is on 30Lux/50Lux/80Lux/120Lux;

Standby period is +∞; Standby dimming level is on 10%/20%/30%.

	Light automatically on when ambient brightness is lower than preset lux level.
	With insufficient ambient brightness,light dims to 100% when motion detected.
	Light dims to standby level if no motion detected after holdtime.
	Light off when ambient lux level is higher than preset lux amount.

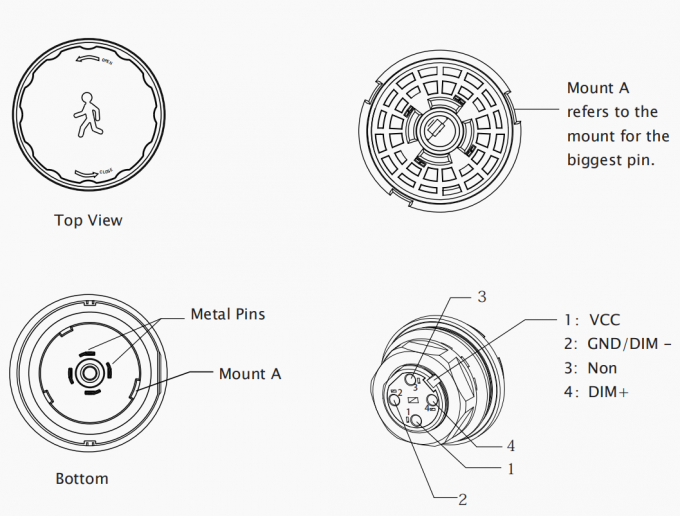

Mechanical of DC sensor:

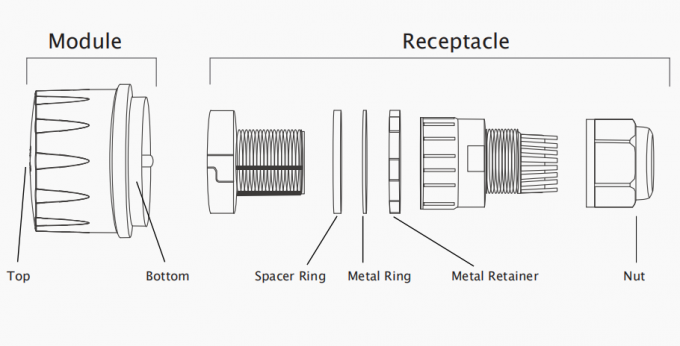

The whole product is made uo of seven parts,as shown in the fixture.

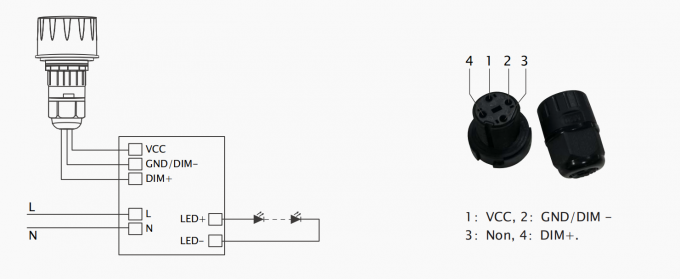

Wiring diagram of DC sensor:

Features:

1. 12VDC input, 1-10V dimmable.

2. Daylight Priority Function.

3.Optional detection range, holdtime ,daylight threshold,

Stand-by period and Stand-by dimming level.

4. Remote control

5. 5 years warranty

Input	voltage	10.5-15V DC (Currect Required>30mA)
Input	Stand-by consumption	<30mA (Power Consumption)
Output	Dim Output	DIM 1-10V
Daylight Priority Function	Detection area:120Lux/80Lux/50Lux/30Lux
	Stand-by period:+∞
	Stand-by dimming level:10%/20%/30%
Sensor Parameters	Detection Area	25%/50%/75%/100%
	Holdtime	5s/30s/1min/3min/5min/10min/20min/30min
	Daylight Threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/200Lux/250Lux/ 300Lux/350Lux/400Lux/Disable
	Stand-by Period	0s/10s/30s/1min/5min/10min/30min/+∞
	Stand-by Dimming Level	10%/20%/30%/50%
	Microwave Frequency	5.8GHz±75MHz
	Microwave Power	<0.3mW
	Mounting Height	≤12m/39.36ft (Ceiling Mounted)
	Detection Range	Max,ø16m/52.49ft (Ceiling Mounted)
	Motion Detection	0.5~1m/s
Others	Temperature	-20°C~+60°C
	IP Grade	IP 65
	Warranty	5 years
Remark	Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/ Stand-by period 0s/Stand-by dimming level 10%.
