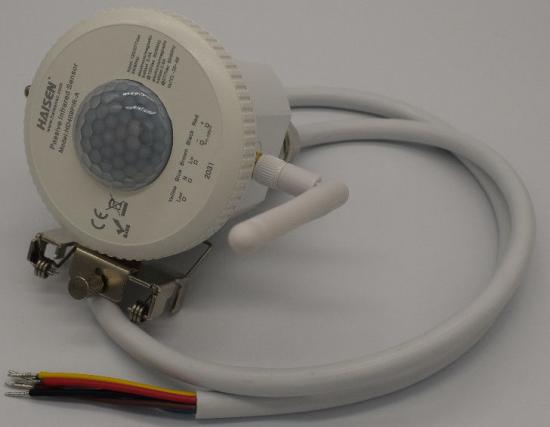

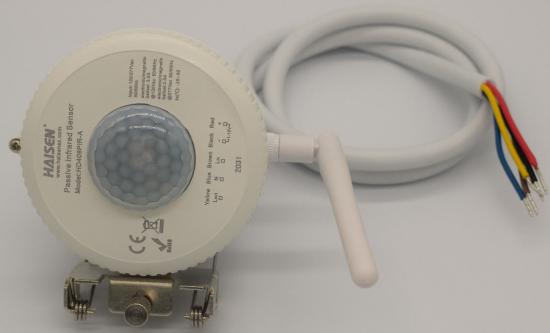

Bluetooth Networking Mash App Control Pir Sensor Radius 4-6m Detection Range

Features of Sensor:

1. Bluetooth networking HAISEN App control.

2. Remote control.

3. Detection Range: 4-6m(Radius).

4. Suitable for tri-proof light.

5. 5 years warranty.

Product Description of Bluetooth Motion Sensor:

Operating voltage	120-277Vac 50Hz
Output Peak	≥3500mV
Sensitivity	≥3200V/W
Stand-by power	<2W
Switching capacity	120V:400W (Incandescent), 200W (Controlgear)； 277V:800W (Incandescent), 400W (Controlgear)
Control method	ON/OFF 0-10Vdimming (Sync with bluetooth APP)
Control line	EU version:Brown L; Blue N; Yellow L’; Red DIM+; Black DIM- American version:Black L; white N; Red L’; Purple DIM+; Gray DIM-
Infrared Wavelength	5-14um
Detection angle	≤120° (Fresnel lens)
Engine time	45±5s
Operating temperature	-20℃~+45℃
Mounting Height	≤12m(ceiling mounted)
Detection Range	Radius 4-6m(ceiling mounted)
Gross wight	15kg/carton
Package	Bubble bag+ Clapboard+ Carton(465300465mm)
Detection area	100%/75%/50%/25%
Hold time	5s/30s/1min/30min/5min/10min/20min/30min
Daylight threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period	0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level	10%/20%/30%/50%
Certificate	RoHS CE
Motion detection	0.5~1.0m/s
Remote control	HD02R, HD03R ,APP
IP grade	IP20
Warranty	5 years

Requirements:

1. 1.6m in height, 65kg in weight, and 0.5/s straight walking speed;

2. Built-in installation of lamps and lanterns, installation height: 3m high for ceiling installation, indoor test results, actual test data subject to the customer's actual test.

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%.

ON/OFF Control Detection Area Hold Time Daylight Threshold Warranty of 5 years

Stand-by Period Stand-by Dimming Level Remote Control Mobile APP Setting Bluetooth networking

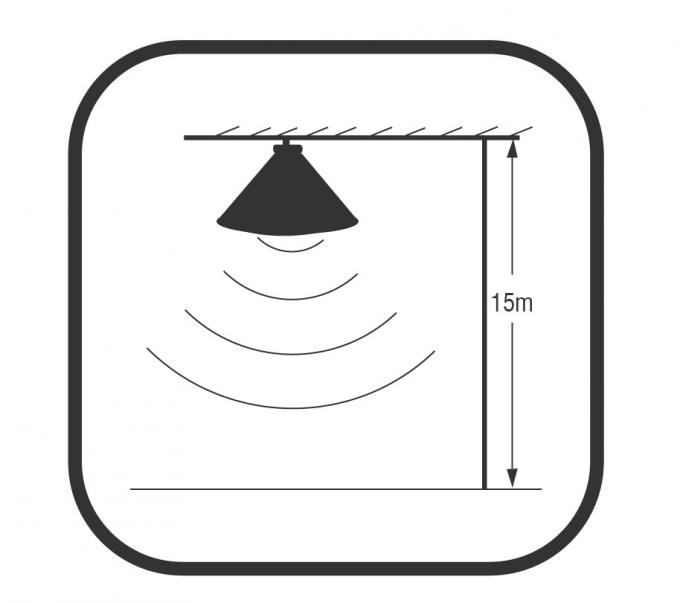

10-15m highbay

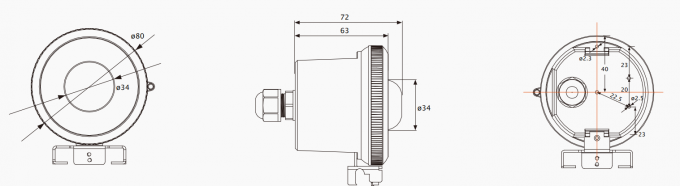

The mechanical structure of the Bluetooth motion Sensor:

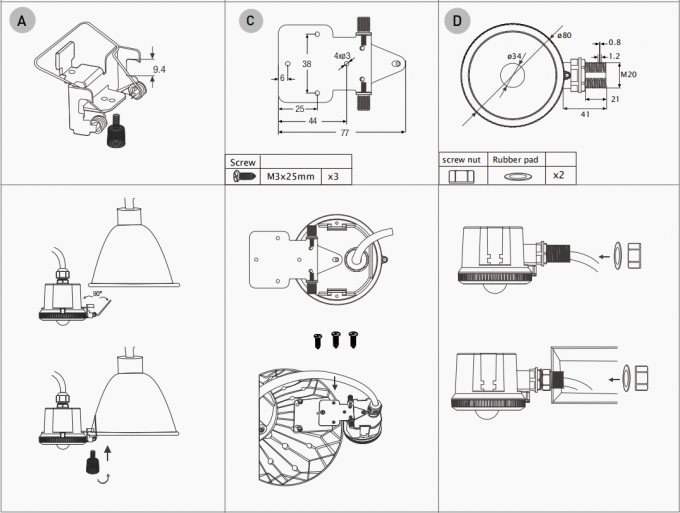

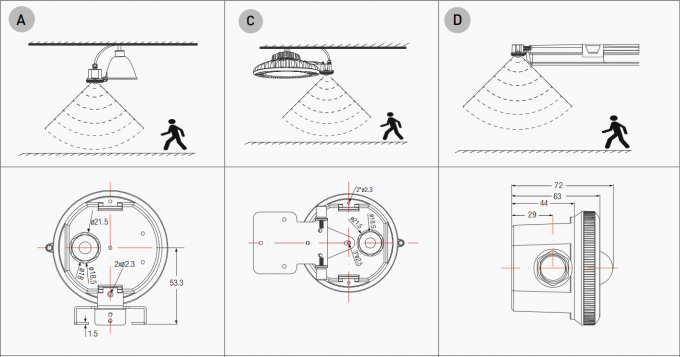

Three metal mounting brackets (A/C/D) for options. No metal bracket if no needed.

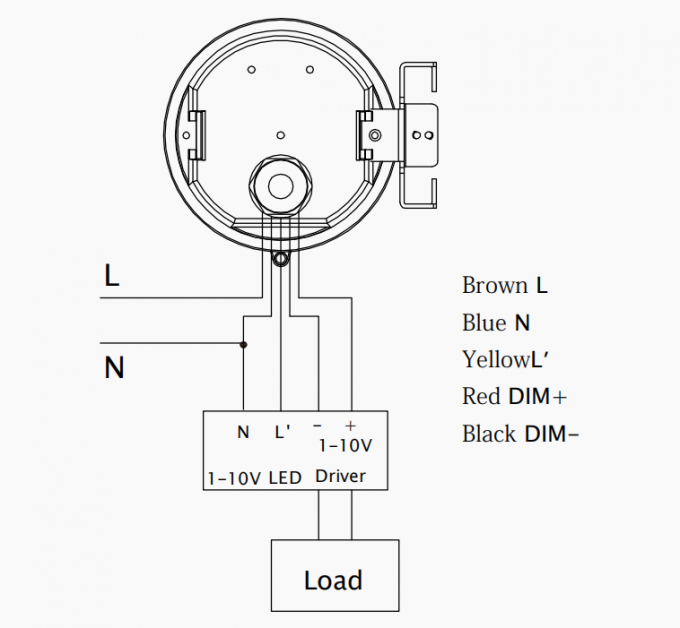

Wiring diagram of Dimmable Sensor

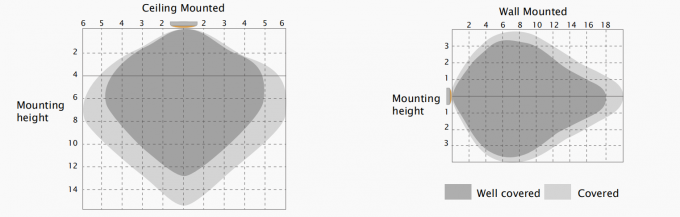

Detection coverage of Dimmable Sensor:

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Installation Method:

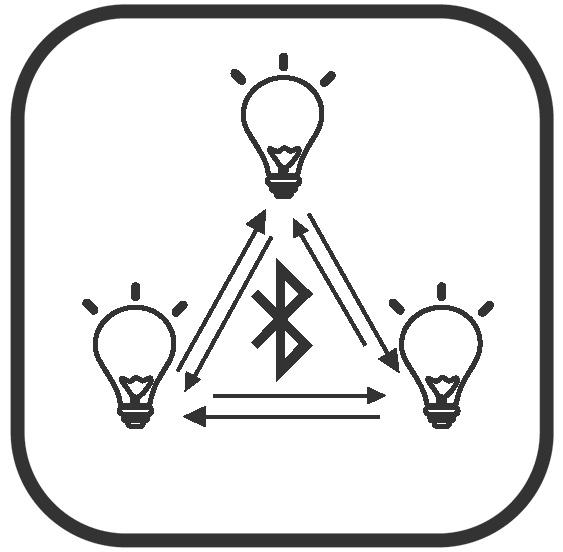

Bluetooth networking:

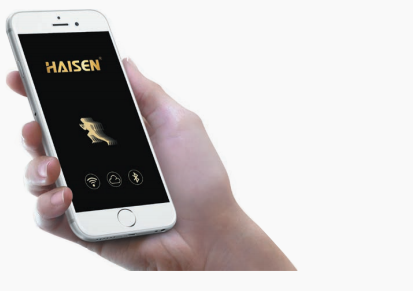

1. Search Bluetooth devices, add devices, group devices and implement APP

management through mobile APP;

2. After the bluetooth devices are grouping with mobile APP,once the sensors in any direc

tion are triggered, all devices in the same group will receive the signal and function synchronously.

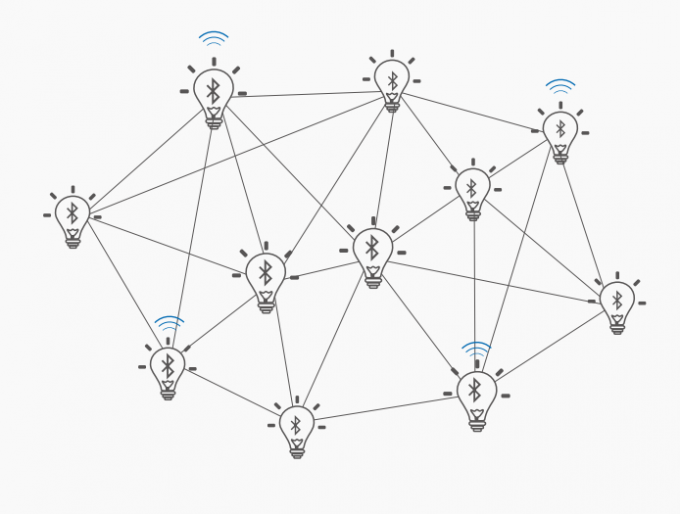

Bluetooth Networking Function, Application Demo:

With sufficient ambient brightness, even motion get detected, lights keep off.

With insufficient ambient brightness, all lamps will switch on simultaneously if any movement get

detected by any master sensor from any direction.

All lamps dim to preset stand-by dimming level if no movement triggers the sensor after holdtime.

All lamps switch off if no movement triggers after stand-by period.

Stand-by dimming level:

The definition of low output in the standby period.

Application:

1. Automatically ON/OFF function:

The Stand-by period is set to "0s", Daylight threshold is set to "2Lux/10Lux/30Lux/50Lux/80Lux/120Lux".

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

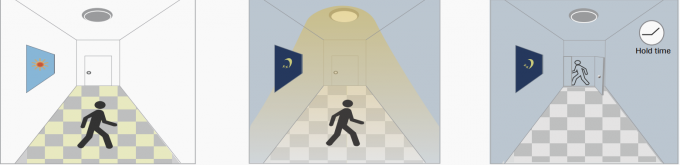

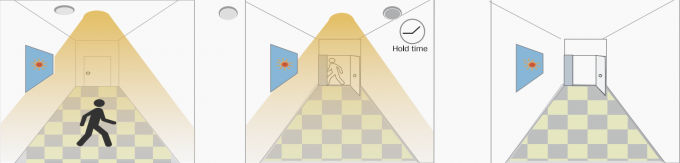

With sufficient daylight, With insufficient daylight, After the last detection and

even when motion detected, when motion detected, light the present hold time

light remains OFF. ON. elapsed, light OFF.

2. No daylight function

The daylight threshold is set to "Disable".

Light on when detect movement, After people leave, Light off after stand-by period.

Applications: Dim places such as Basement Parking, Underpass.

When motion is detected, After people leave the After the last detection and

the sensor will switch on the detection area, light remains the present hold time

light to 100% brighteness. 100% brightness within elapsed, light OFF.

hold time.

3. Function Demo - Dimmable control/Corridor function

The Stand-by period is set to "10s/30s/1min/5min/10min/30min", Daylight threshold is set to "2Lux/10Lux/30Lux/50Lux/80Lux/120Lux".

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

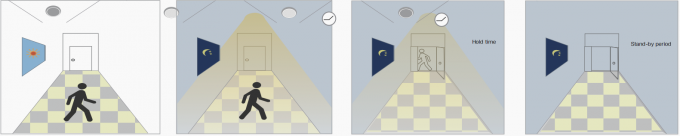

With insufficient With sufficient daylight, After the stand-by After last detection, the

daylight, when motion even when motion period, light OFF. light will be dimmed

detected, light ON. detected, light remains down to the stand-by

OFF. dimming level

(10%,20%,30% or 50%)

after holdtime.

Attention:

1. Please read the instructions carefully before using this product and keep it well for all users to

read at any time.

2. The sensor should be installed by qualified electrician and ensure power is off before the

installation.

3. We reserve the right to modify any incorrect text, image and necessary technical parameters.

4. Any unauthorized modification is forbidden, otherwise all guarantees will be immediately invalid.

Infrared Sensor Installation Notice:

1.The infrared sensor module shall be exposed.,Fresnel lens should not be covered by any objects.

2.It shall not be installed and used outdoors, or it will be false triggered by the influence of ambient temperature.

3. Shall not be installed intemperature sensitive environment such as heating, air conditioning, refrigerator, stove, etc.

4.Shall not be installed directly against the window to prevent false trigger caused by the interference of outdoor hot air flow and

personnel movement.

5. Shall not be installed in the strong airflow place like doorway or passageway.

6.There shouldn't be any obstacles such as screens, furniture, large bonsai etc. within the detection range.

7.The direction of human movement has a great impact on the infrared sensor detection range. It is not sensitive when walk to the

sensor radially, while it's the most sensitive when walk to the sensor tangentially or horizontally. Choosing the appropriate

position to avoid the false triggering when install the sensor.
