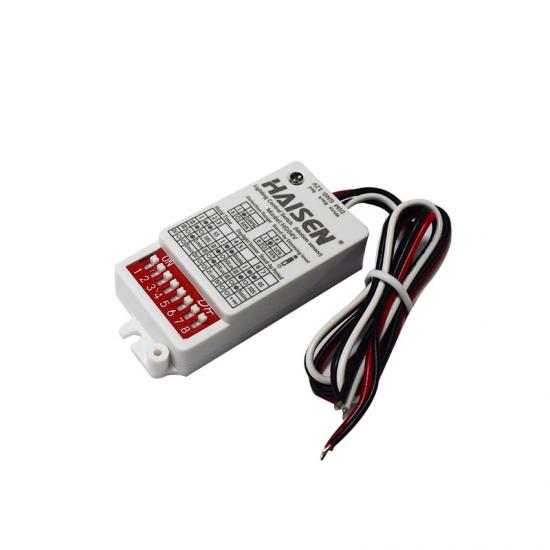

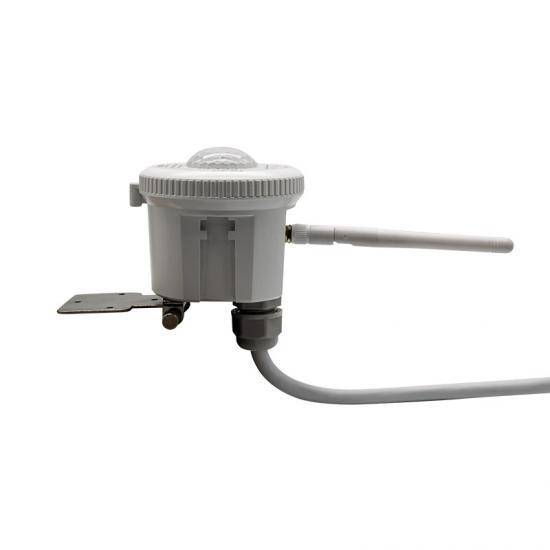

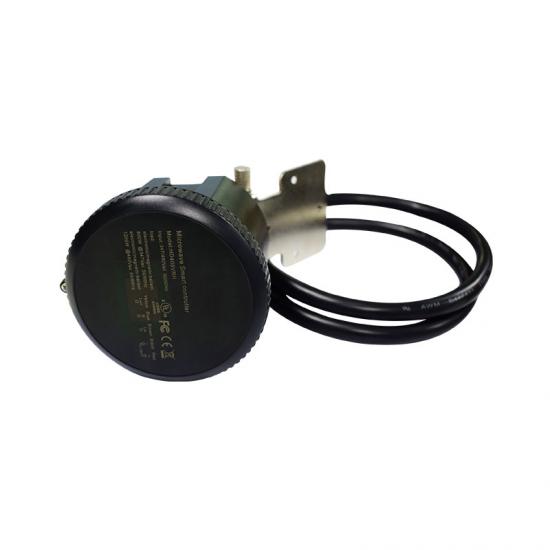

IP65 Bluetooth Motion Sensor

IP65 Bluetooth Sensor wireless UL CE motion detector 15M high installation

Features:

1. Wireless bluetooth networking sensor to smartly control groups of LED light without quantity limitation.

2. IP65 to make it widely used no matter indoor in warehouse/parking lot/hospital or outdoor in street / Gym.

3. Max. mounting height of 15M to meet the requirements in big warehouse, Gym and airport.

4. Four installation methods to meet different mounting way.

5. Remote control and smart phone setting to make it easy to set all parameters anytime.

6. Daylight function to make it more intelligent to detect the natural light to make it real smart control gear for saving energy.

7. Certificate of UL, FCC, TUV, RED, CE, SAA to make it widely used in all markets like NORTH AMERICAN, EUROPE, OCEANIA, ASIA, AFRICA.

Detailed specification:

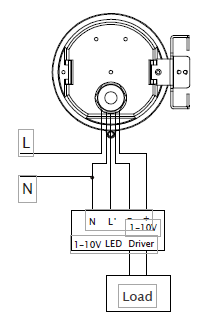

Wiring Diagram:

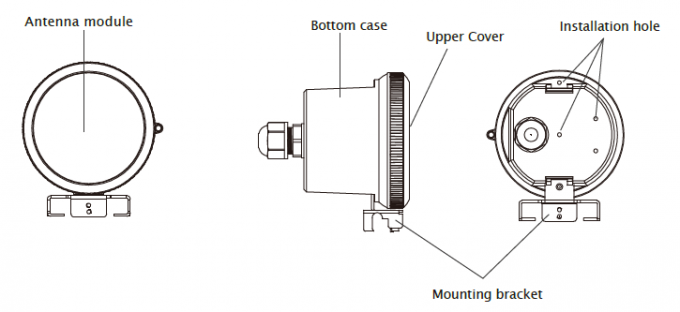

Mechanical Structure:

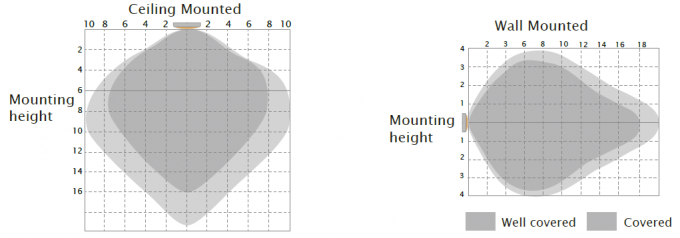

Detection coverage:

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 8-15m

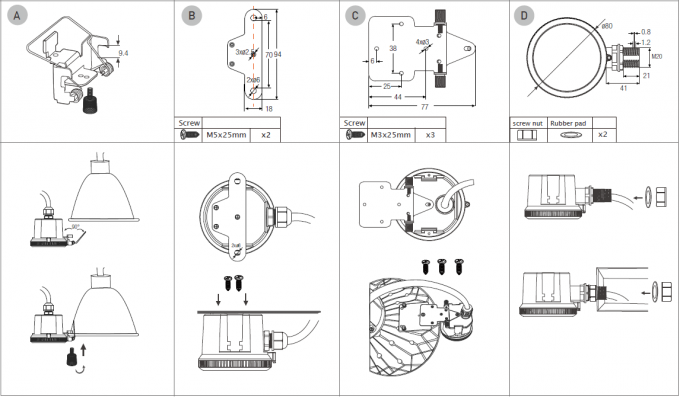

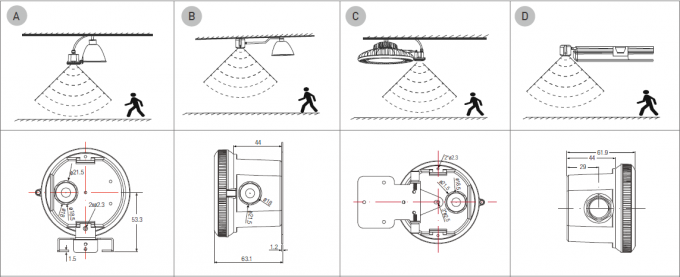

Installation Method (Unit: mm)

Application DEMO:

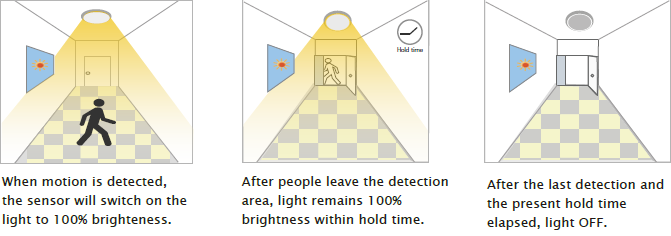

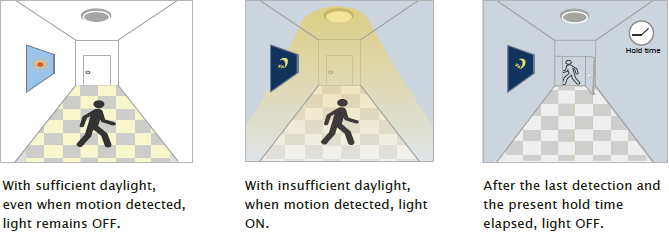

1. Automatically ON/OFF function:
Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

2. 2-stage dimming function
No daylight detection ON/OFF function:
Light on when detect movement, off after people leave, day and night.
The daylight threshold is set to "Disable". Applications: Dim places such as Basement Parking, Underpass.

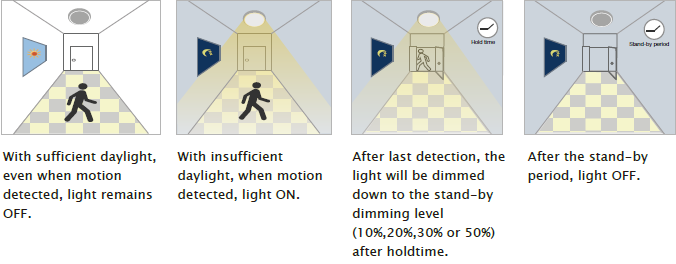

3. Function Demo - Dimmable control/Corridor function

User Notes:

1. Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value
