Microwave Movement Sensor Slim design Rod Antenna 220-240VAC For Triproof Light

Automatic 9 Dip Switch 1min 2Lux On Off Switch Sensor

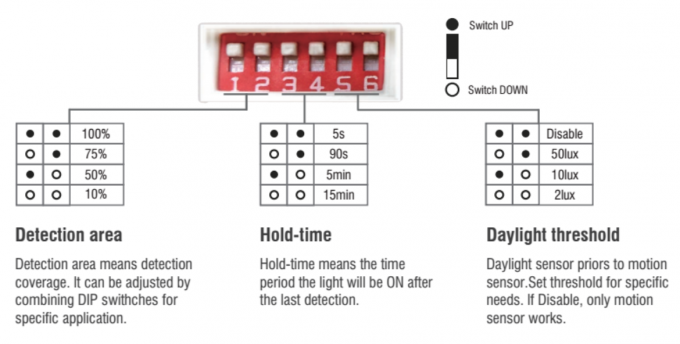

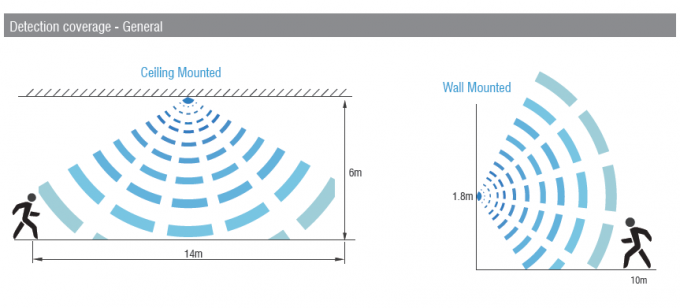

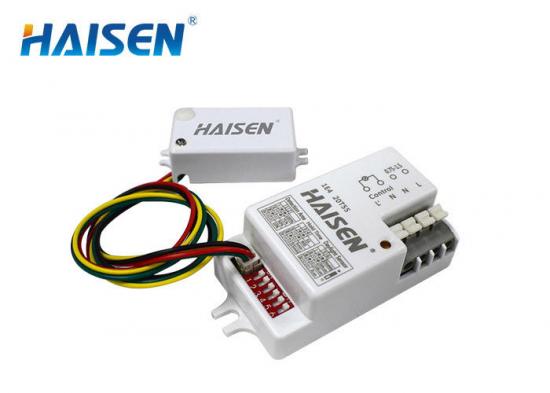

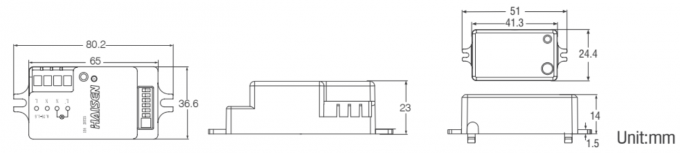

Planar Antenna 10Lux 50Lux Motion Sensor On Off Switch 220-240VAC Planar Antenna Motion Senosr ON/OFF Function For Ceiling/Triproof Light Features of ON/OFF Sensor: 1. Detached Design, Remote control setting. 2. Compact sized particularly suitable for Ceiling lights or tri-proof lights. 3. Optional detection range, holdtime and daylight threshold. 4. Mounting height up to 6m and detection range would be Radius, 2-6m 5. 5 years warranty. Installation of ON/OFF sensor: There are two ways for the separation head of the inductor to appear, base outlet and side outlet, which is more convenient for customers to install on the lamp. Detection angle ≤150°(Without glass) Detection range Diameters 10m*Hight 6m(ceiling mounted) Motion detection 0.5~1.5m/s Mounting height Less than or equal to 6m(ceiling mounted) Dimensions (Unit: mm) of ON/OFF sensor: Size L*W*H:80.2*36.6*23MM/sensor head51*24.4*14MM Operating temperature -20°C~+60°C Warranty 5 years Function setting By remote control(HD03R) IP grade IP 20 Mechanical structure of ON/OFF sensor: Certificate RoHS CE Detection area 100%/75%/50%/25% Setting mode Remote control(match HD03R) Hold time 5s/30s/1min/3min/5min/10min/20min/30min Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable Wiring diagram of ON/OFF sensor: Control mode ON/OFF Connection type Amphenol connector(L,N,N,L') Stand-by power ≤0.5W Operating voltage 220-240VAC 50Hz/60Hz Switch capacity External induction head; Max.400W(Control gear); Max.800W(Incandescent lamp) Application of ON/OFF motion sensor: 1. Automatically ON/OFF function: With sufficient daylight,even when motion detected,light remains OFF. With insufficient daylight,when motion detected,light ON. After the last detection,and the present hold time elapsed,light OFF. 2. No daylight function When the daylight threshold is set to "Disable". Light on when detect movement, After people leave, Light off after stand-by period. Applications: Dim places such as Basement Parking, Underpass. When motion is detected, the sensor will switch on the light to 100% brighteness. After people leave the detection area, light remains 100% brightness within hold time. After the last detection and the present hold time elapsed, light OFF.

220-240VAC On Off Sensor Without Housing For Built In Installation

ON/OFF Control Microwave Motion Sensor 220-240VAC Operated 5.8GHz Frequency

5.8GHz High Bay Motion Sensor Remote Control Setting With On - Off Function

CE Microwave Motion Sensor Round Design 120-240VAC Operated 5.8GHz Frequency

Indoor Light IP20 Microwave Motion Detector Remote Control For 10-15m Height

Tripoof Light Microwave Movement Sensor Energy Saving With 150° Detection Angle
