Remote Control 0-10V Dimmable Sensor For 15m Highbay Installation

Brand:
HAISEN
Item NO.:
HD015VCRH
Order(MOQ):
100pcs
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

Features:

Long life span 50,000h, 5 years guaranty.
Offer on off and 0-10V dimming function.
Compact design makes it suitable to fix within most lamps.
15m highbay installation and remote control.
12DC input design, With DC operation voltage from LED driver, no need extra power from line. Work with 1-10v dimmable led driver for 2-step dimming function. Particularly suitable for price sensitive luminaries.

Description

Input	Operating voltage	12 VDC
Input	Operating current	≤25mA
Safety & EMC	Approval	CE, ROHS
Sensor Parameters	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
	Stand-by period	0s/10s/30s/1min/5min/10min/30min/+∞
	Stand-by dimming level	10%/20%/30%/50%
	Daylight threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
	Detection angle	30°-150°
	Detection Area	25%/50%/75%100%
	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
	Mounting Height	Max.15m/49.2ft
	Detection range	Max.14m/45.92ft
	Operating temperature	-20°C~+55°C
Wireless Parameters	Operating Frequency	5.8 GHz ±75 MHz
Wireless Parameters	Output	DIM 0-10V TTL
Others	Warranty	5 years
	IP rating	IP 20
	Packaging Requirement	Bubble pack, paper flat, outer carton.
	Life time	50000h
	Installation	Installed inside lamps
	Warranty	5 years
	IP rating	IP 20

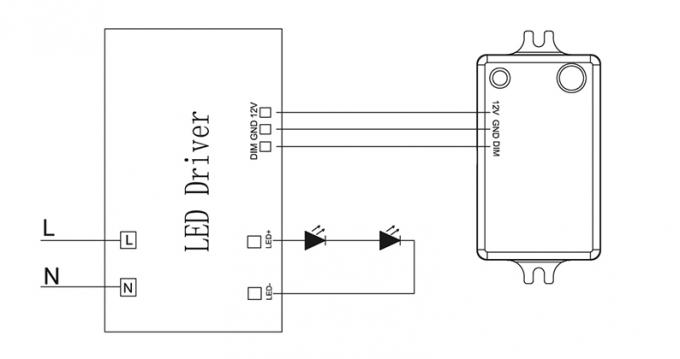

Wiring Diagram

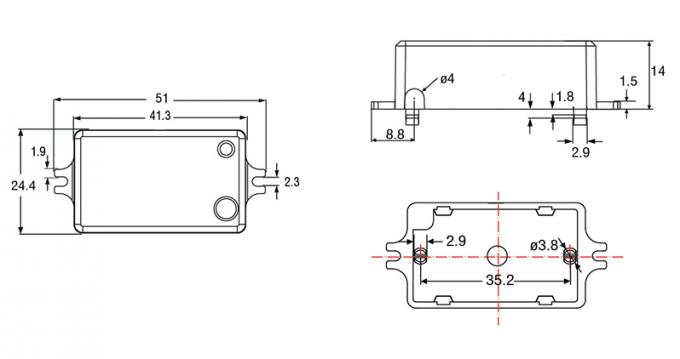

Size

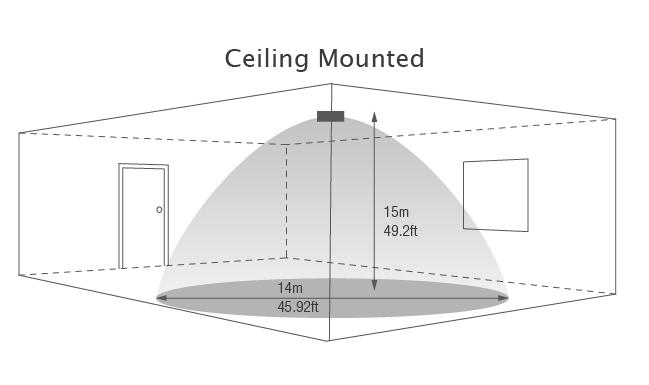

Detection coverage

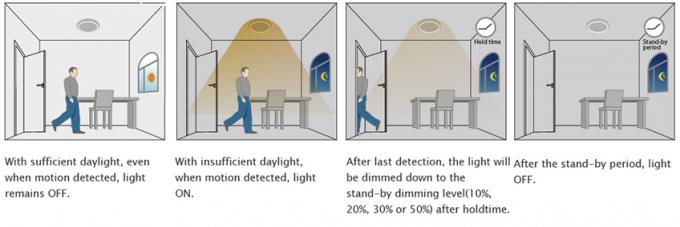

Demo

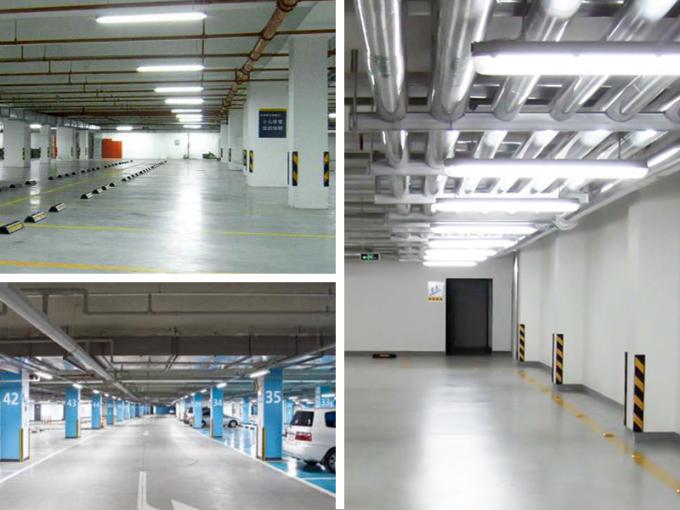

Application
