Adopted dual PD technology, HS03 is able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level.
The sensor automatically compares ambient lux to preset lux value and adjusts artificial lighting to keep lighting balance.

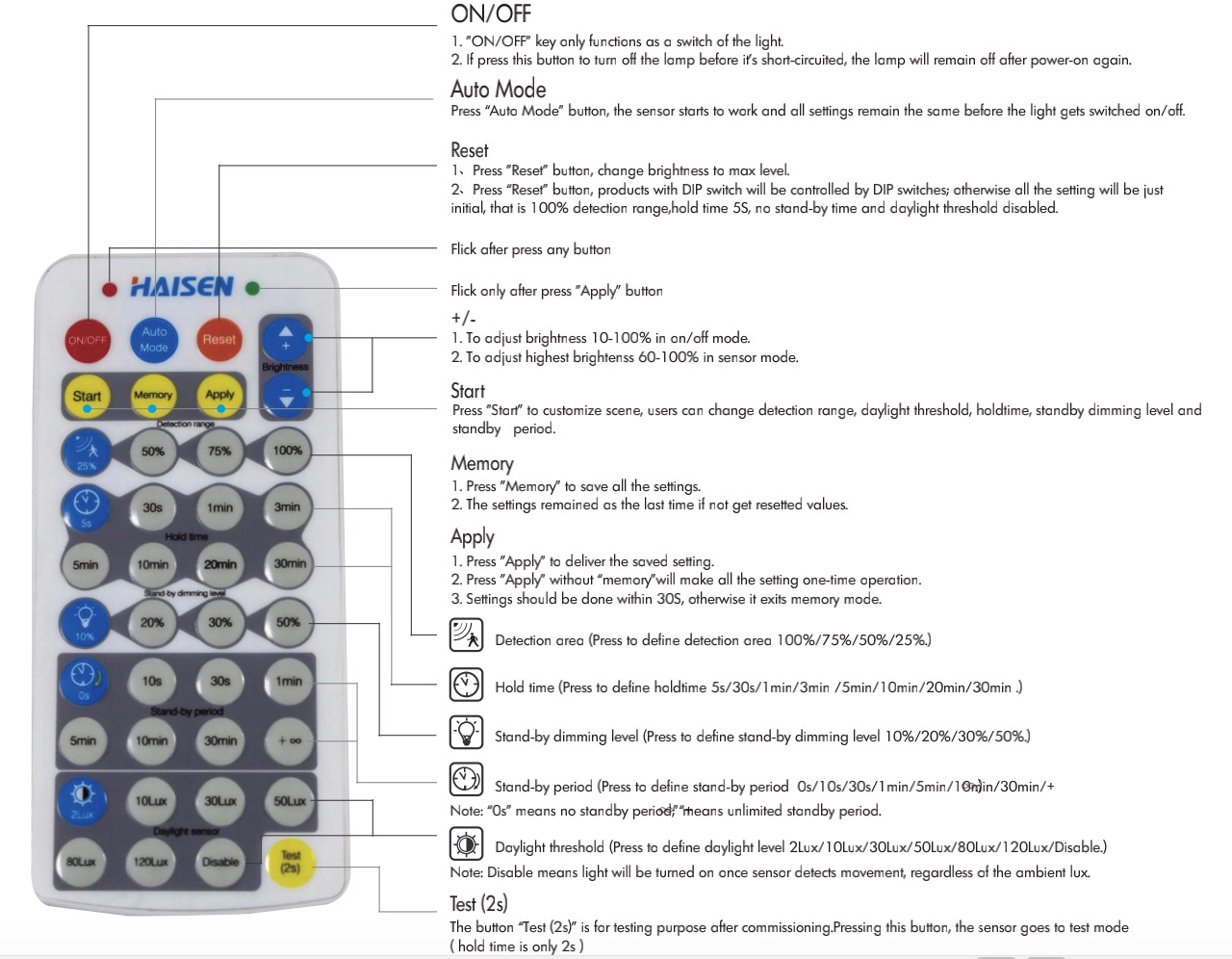

Remote control for the sensors
The sensor will detect ambient lux to turn up/down artificial lighting to meet the preset lux value of the installation site.
Highbay Installation Microwave Movement Sensor 120-277V AC Operated 5.8GHz Frequency Detailed Product Description Operating voltage 120~277 VAC 50/60Hz Switching capacity Max.200W(Control gear) Max.400W(Incandescent lamp) Stand-by power <1W Detection area 50%/100% Hold time 5s/30s/1min/10min Daylight threshold 2Lux/10Lux/50Lux Disable Stand-by period 0s/30s/20min/+ Stand-by dimming level 10%/20%/30%/50% Microwave frequency 5.8GHz±75MHz Microwave power <0.3mW Interfaces 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-) for 0.75- 1.5mm2 cable Mounting height Max.15m(ceiling mounted); Detection range Max.ø14m(ceiling mounted);Max.20m (wall mounted) Detection angle 30°-150° Operating temperature -30°C~+70°C IP rating IP20 Life time 50,000 hours Warranty 5 years Wiring diagram Mechanical structure(mm) DIP Switch Setting Detection coverage Demo Application
Indoor Ceiling Mounted Dimmable Motion Sensor 50 60Hz Compact Design
Automatic 9 Dip Switch 1min 2Lux On Off Switch Sensor
CE Microwave Motion Sensor Round Design 120-240VAC Operated 5.8GHz Frequency
