12VDC Input ON/OFF Control 5V PWM Dimming Output 100% Detection Motion Sensor
Brand:
HAISENItem NO.:
HD0158-01SOrder(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
China12VDC Input ON/OFF Control 5V PWM Dimming Output 100% Detection Motion sensor
Features of ON/OFF Sensor:

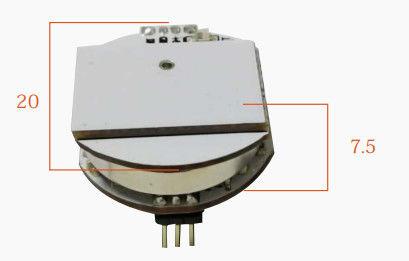

1. 20*7.5mm super compact size

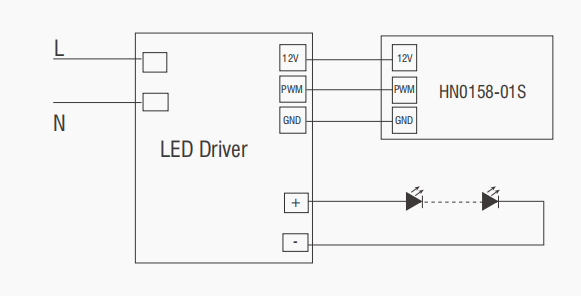

2. 3pins to be connected with LED lighting board

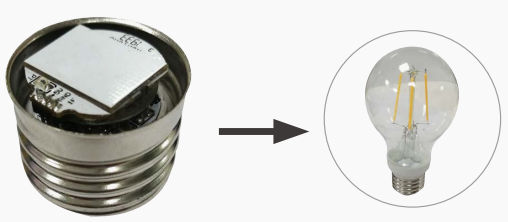

3. LED BULB and downlight application

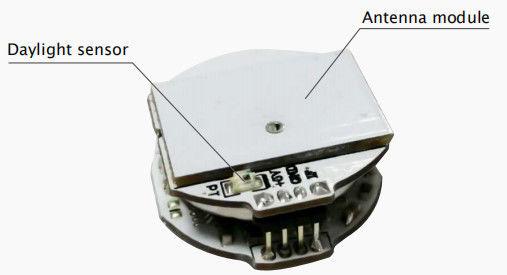

4. Chip daylight PD to shorten the whole thickness
5. ON/OFF sensor applied in corridor, bathroom
6. Module & PCB Board integrated design
Dimmensions of DC Sensor:
| Size | L*W*H:20*7.5mm |
| Operating temperature | -20°C~+60°C |
| Warranty | 5 years |
| IP grade | IP 20 |
| Motion detection | 0.5~1.5m/s |

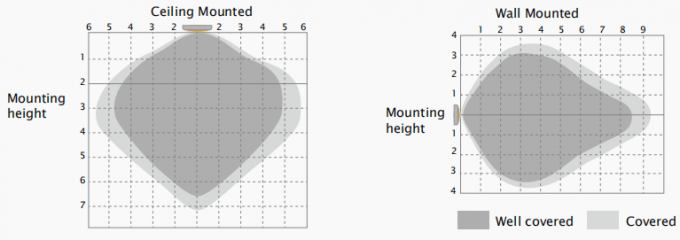

| Detection range | Radius,2-6m (Ceiling mounted) |
| Mounting height | Max,6m (Ceiling mounted) |
| Detection angle | 30°-150° |
| Operating voltage | 12VDC ±5% |
| Operating current | ≤30mA±5% |
| Output | 5V PWM |
| Output | 5V PWM |
| Control mode | ON/OFF |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
Mechanical structure of DC sensor:
| Detection area | 100% |
| Hold time | 1min |
| Daylight threshold | 30Lux |
| Connector | Three position stitch output |
|
With sufficient daylight,even when motion detected,light remains OFF.
|
|
With insufficient daylight,when motion detected, light ON.
|
|
After the last detection and the present hold time elapsed, light OFF.
|
