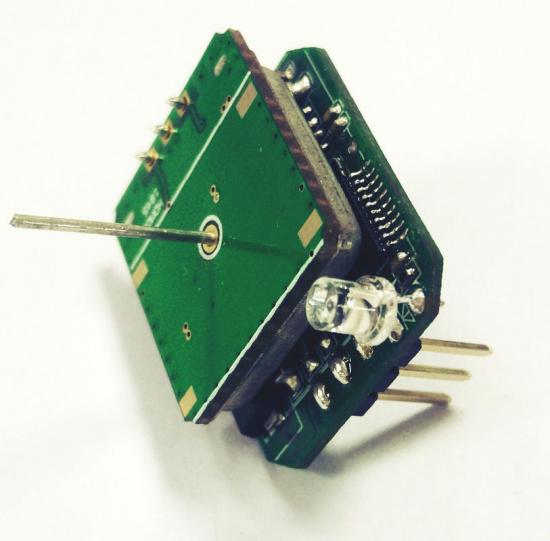

12VDC 5V PWM Customized Detector On Off Switch Sensor 20*24*6.7mm For LED Bulb
Brand:
HAISENItem NO.:
HD043-01SOrder(MOQ):
500PCSPayment:
L/C, T/T, Western UnionProduct Origin:
CHINA12VDC Customized 5.8GHz Microwave Sensor Module ON/OFF without Housing for All Kinds of LED Light with Different requirements of Parameters
Features:
1. 12VDC ON/OFF microwave sensor without housing for built-in installation.
2. Function well under the temperature of -20°C~+60°C.
3. Super compact design for very small and designed structure of decorated light (downlight / pendant).
4. Max. 12M detection area and 6M mounting height for widely used in big space like shopping center and showroom.
5. Customized size with special parameters to meet special requirements.
Detailed Specifications:
| Operating voltage | 12 VDC ±5% |
| Operating Current | ≤30mA±5% |
| Stand-by power | <0.5W |
| Detection area | 100% (Could be customized) |
| Hold time | 1min (Could be customized) |
| Daylight threshold | 30Lux (Could be customized) |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Mounting height | Max.6m(ceiling mounted) |
| Detection range | Max.12x6m(øxH) (Could be customized) |
| Detection angle | 30°-150° |
| Operating temperature | -20°C~+60°C |
| Size | 20*24*6.7mm (Could be customized) |
| IP rating | IP20 |
| Warranty | 5 years |

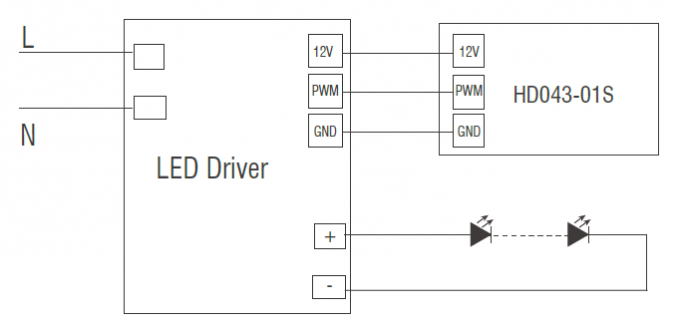

Wiring diagram

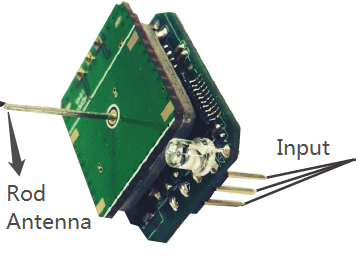

Mechanical Structure:
1. With the Rod Antenna, Daylight PD, The module could detect Movement and daylight to control the light automatically.
2. With the installation hole, the module could be easily installed onto the light board with a screw.
Dimensions:
Could be customized base on different requirement and lighting fixtures

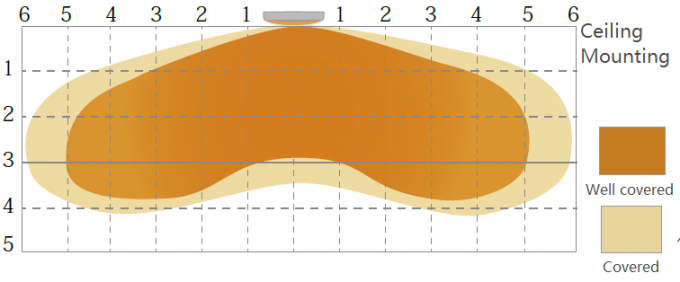

Detection Area:
Could be customized base on different requirement and lighting fixtures
Application Demo:
Light keep off when ambient light is sufficient even detect movement;
Light turn on when detect movement and ambient light is insufficient;
when people leave, Light turn off after the hold on time.
Application:
Haisen Technology focus on innovation of microwave sensor to make a difference in IoL and smart lighting control industry.
We focus on Innovation of proactive microwave sensor and IoT;
We commit to be worldwide brand with integrity and respect;
We insist on CUSTOMER FIRST;
We strive to make a difference for energy saving.
