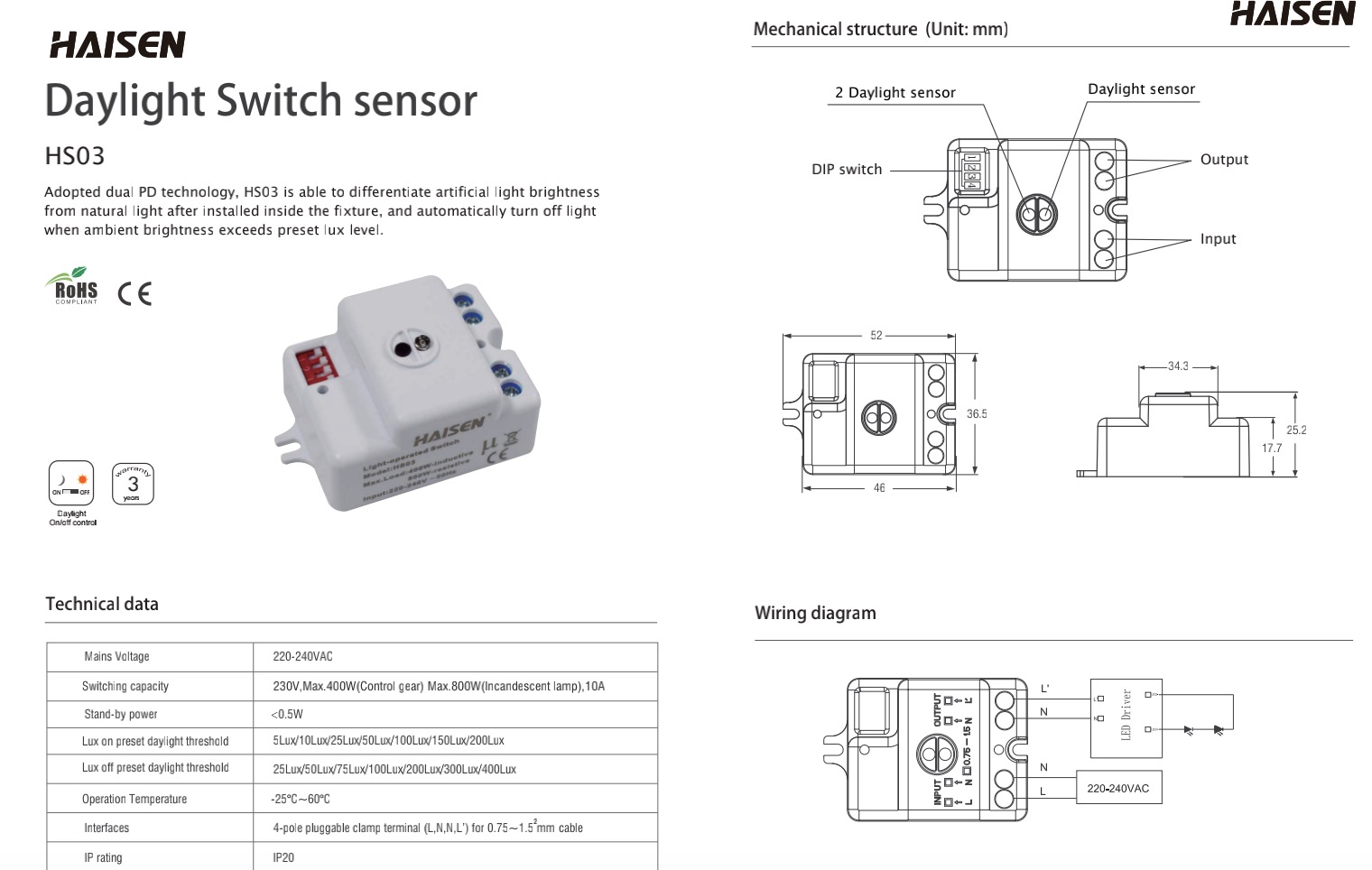

Daylight Switch sensor

The sensor automatically compares ambient lux to preset lux value and adjusts artificial lighting to keep lighting balance.

Remote control for the sensors

The sensor will detect ambient lux to turn up/down artificial lighting to meet the preset lux value of the installation site.

Remote control for the sensors

Dimmable 0-10V Remote Control Microwave Movement Sensor For Tri-proof Light

Dimming By 1-10V Microwave Movement Sensor with 120-277VAC Operated 5.8GHz Frequency

CE Microwave Motion Sensor Round Design 120-240VAC Operated 5.8GHz Frequency

Dimmable Motion Sensor For Tri-proof Light Features: Sensor data can be simply set via DIP switch. High frequency 5.8GHz±75MHz. On/off function and dimming function for tri-proof light. 4-pole press-in terminal (L,N,N,L′),easy assembly. Have paseed UL, RoHS and FCC certificate. Dimmable sensor for warehouse light and car parking light ect. Detailed Product Description Operating voltage 120~277 VAC 50/60Hz Microwave frequency 5.8GHz±75MHz Stand-by power <1W Detection area 10%/50%/75%/100% Hold time 5s/30s/1min/5min/10min/20min/30min Stand-by period 0s/10s/1min/10min/30min/1h/∞ Daylight threshold 2Lux/10Lux/50Lux/Disable Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac Microwave power <0.3mW Stand-by dimming level 10%/20%/30%/50% Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted) Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted) Operating temperature -20°C~+55°C Detection angle 30°-150° IP rating IP20 Insallation Installed inside lamps Package Requirement Bubble pack, paper flat, outer carton. Guarantee 5 years Wiring diagram Mechanical structure(mm) DIP switch setting Detection coverage Function demo Apllication
