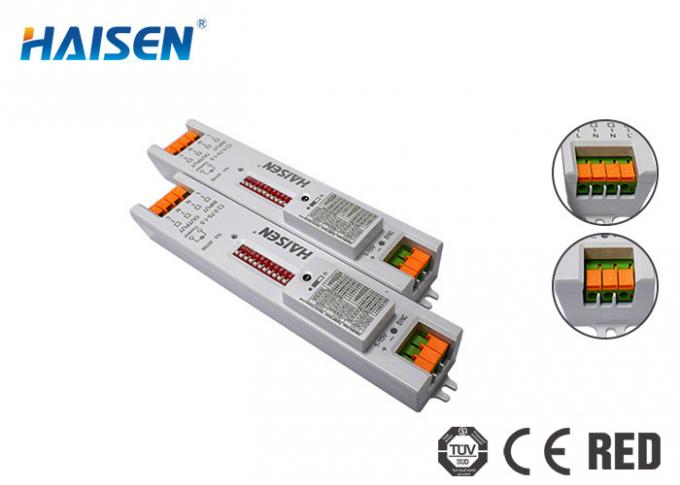

High Frequency 5.8GHz±75MHz Sensor For Triproof Fixture 220-240 VAC Operated

Brand:
HAISEN
Item NO.:
HD02V
Order(MOQ):
100pcs
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

Features:

Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
Unique design ,suitable for 3-6 m Mounting height application, and long detection range 14m for ceiling mounted, 10m for wall mounted.
Support max inductive load 400w, up to 8 50W lamps can be connected in series. SYNC function: all lights connected to this sensor interface can be controlled synchronously.
IP 20 and 5 years warranty.
Offer on off and dimming function.

Specification

Wireless Parameters	Operating Frequency	5.8 GHz ±75 MHz
Wireless Parameters	Function	0N/0FF+dimming function
Operating Environment	Operating Temperature	-20°C~+55°C
Safety & EMC	Approval	CE, ROHS,TUV, RED
Input	Voltage Range	220~240 VAC 50/60Hz
Input	Switching capacity	Max.400W(Control gear) Max.800W(Incandescent lamp)
Sensor Parameters	Detection Area	10%/50%/75%/100%
	Daylight Sensor	2Lux/10Lux/50Lux/Disable
	Hold time	5s/30s/1min/5min/10min/20min/30min
	Mounting Height	Max.15m(ceiling mounted);Max.3m(wall mounted)
	Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Others	Installation	Installed inside lamps
	Life time	50000h
	Packaging Requirement	Bubble pack, paper flat, outer carton.

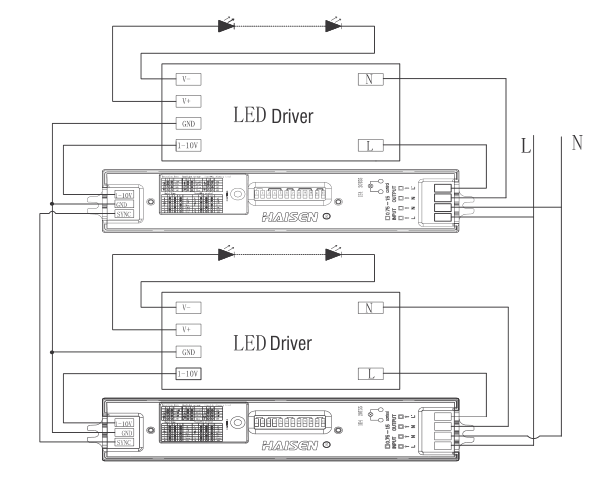

Wiring diagram

Mechanical structure(mm)

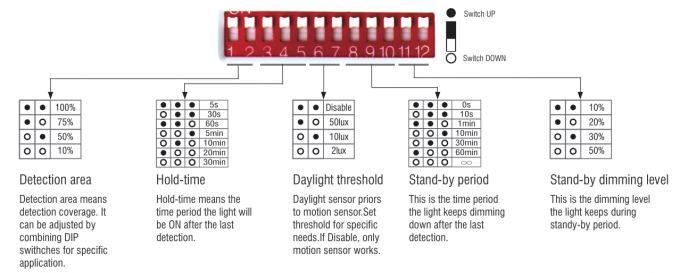

DIP Switch Setting

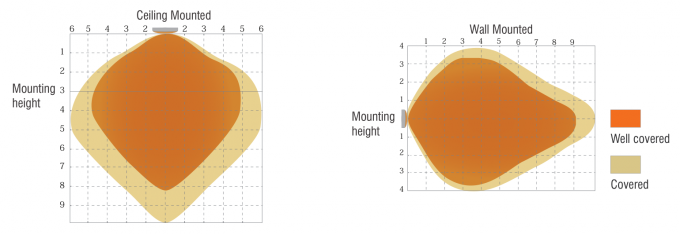

Detection coverage

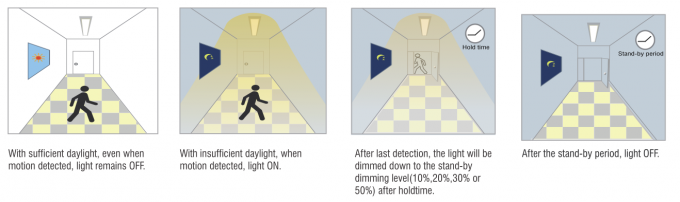

Demo

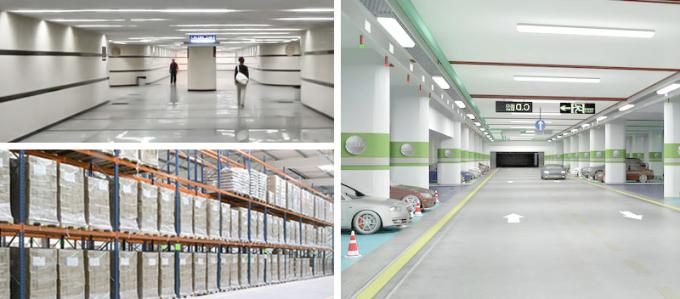

Application
