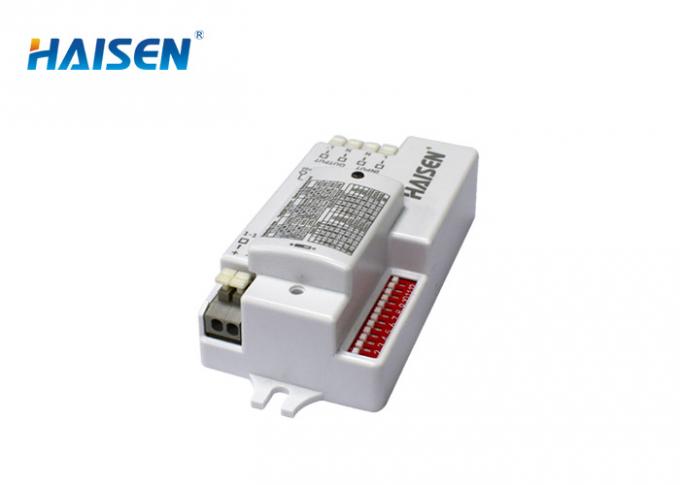

Ceiling Light Dimmable Motion Sensor Compact Design 220-240VAC Operated
Brand:
HAISENItem NO.:
HD01VOrder(MOQ):
100PCSPayment:
L/C, T/T, Western UnionProduct Origin:
ChinaTUV CE Approved Dimmable Motion Sensor Compact Design 220-240VAC For Ceiling Light
Detailed Product Description
| Operating voltage | 220~240 VAC 50/60Hz |
| Switching capacity | Max.400W(Control gear) Max.800W(Incandescent lamp) |
| Stand-by power | ≤1W |
| Detection area | 10%/50%/75%/100% |
| Hold time | 5s/30s/1min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/1min/10min/30min/1h/ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Daylight threshold | 2Lux/10Lux/50Lux Disable |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Interfaces | 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-) for 1.5mm2 cable |
| Mounting height | Max.6m(ceiling mounted) Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) |
| Detection angle | 30°-150° |
| Operating temperature | -20°C~+55°C |
| IP rating | IP20 |
| Life time | 50,000 hours |
| Warranty | 5 years |

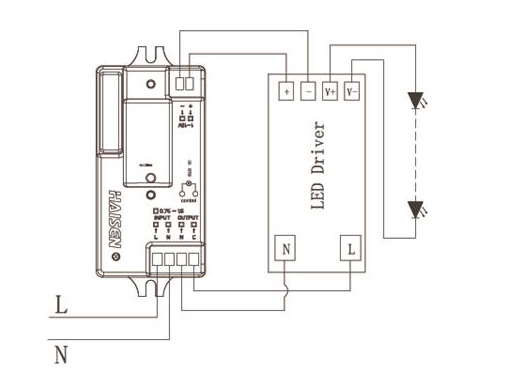

Wiring diagram

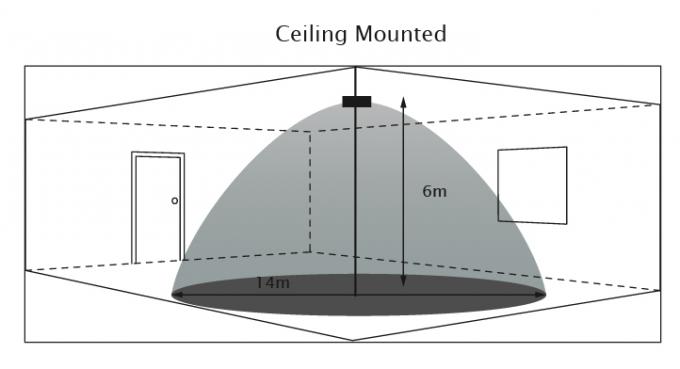

Detection coverage

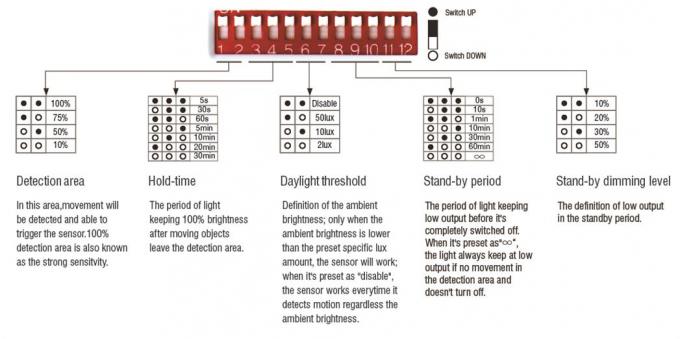

DIP switch setting

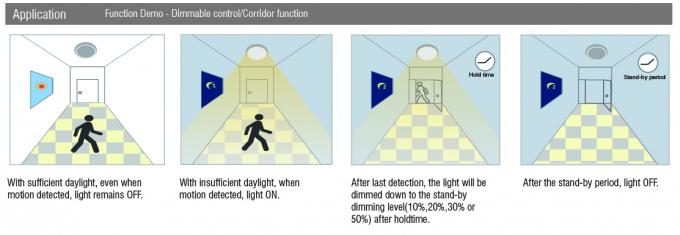

Demo

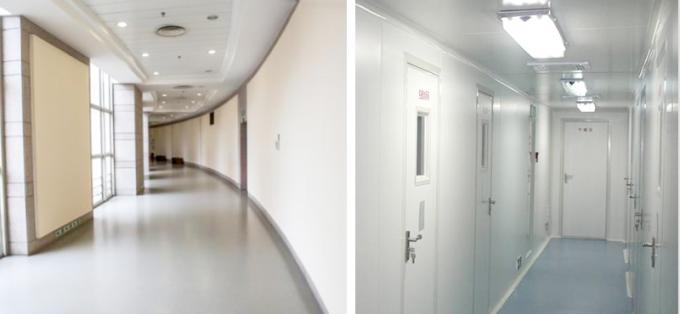

Application
