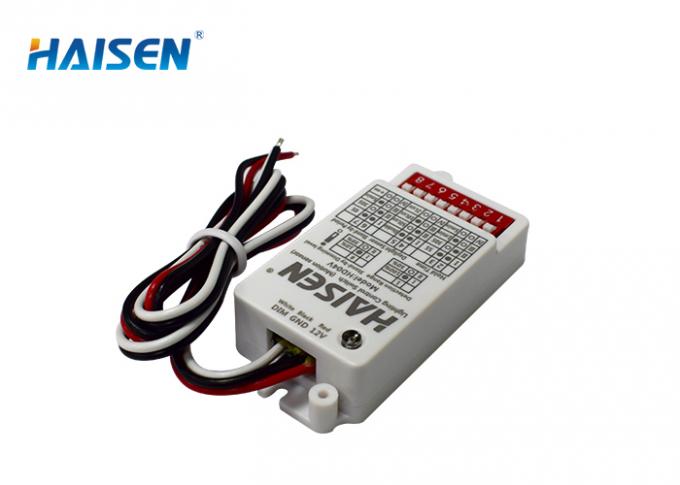

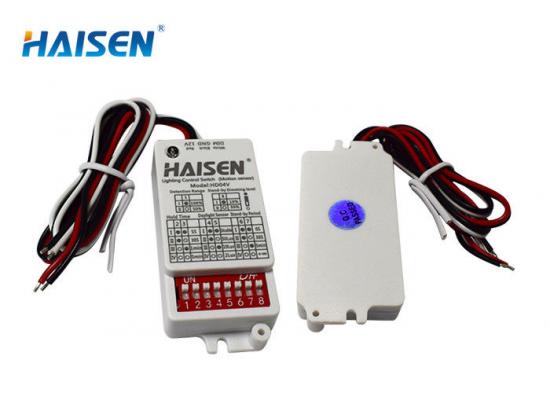

0-10V Wide Detection Range DIP Switch Control 12VDC Design Dimmable Sensor
Brand:
HIASENItem NO.:
HD04VOrder(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
China0-10V Wide Detection Range DIP Switch Control 12VDC Design Dimmable Sensor
Features
Specification
| Stand-by period | 0s/10s/5min/+∞ |
| Stand-by dimming level | 10%/30% |
| Hold time | 5s/30s/1min/5min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Detection Area | 50%/100% |
| Operating temperature | -25°C~+60°C |
| Operating voltage | 10-15VDC |
| Mounting Height | Max.6m/19.68ft |
| Detection range | Max.14m/45.92ft |
| Operating Frequency | 5.8 GHz ±75 MHz |
| Microwave power | <0.3mW |
| Output | 0-10V |
| Stand-by power | <0.5W |
| Detection angle | 30°-150° |
| Operating current | 25mA±5% |
| Installation | Installed inside lamps |
| Packaging Requirement | Bubble pack, paper flat, outer carton. |
| Life time | 50000h |
| Warranty | 5 years |
| IP rating | IP 20 |
| Approval | CE, ROHS |

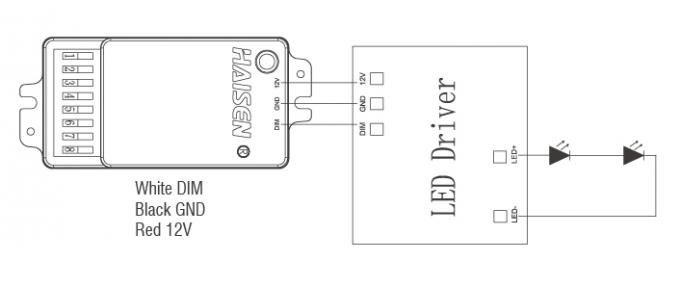

Wiring diagarm

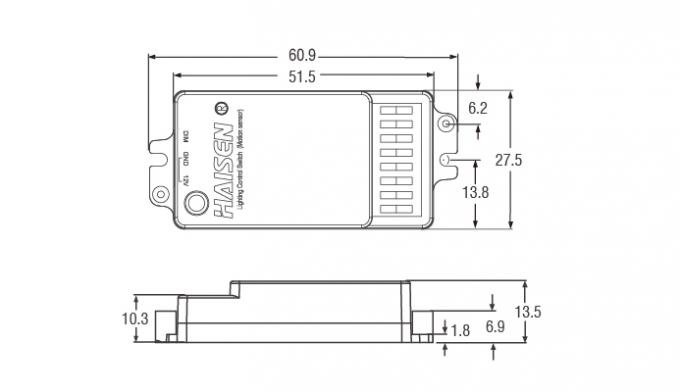

Size

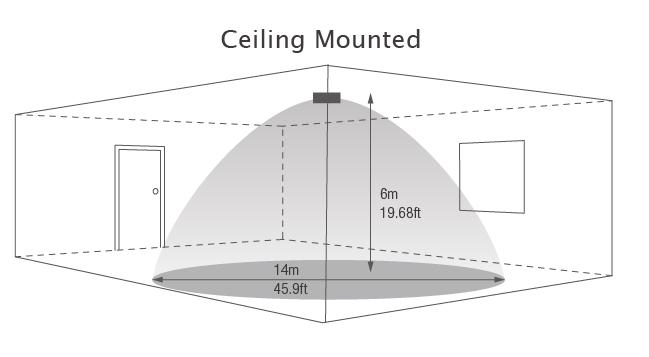

Detection coverage

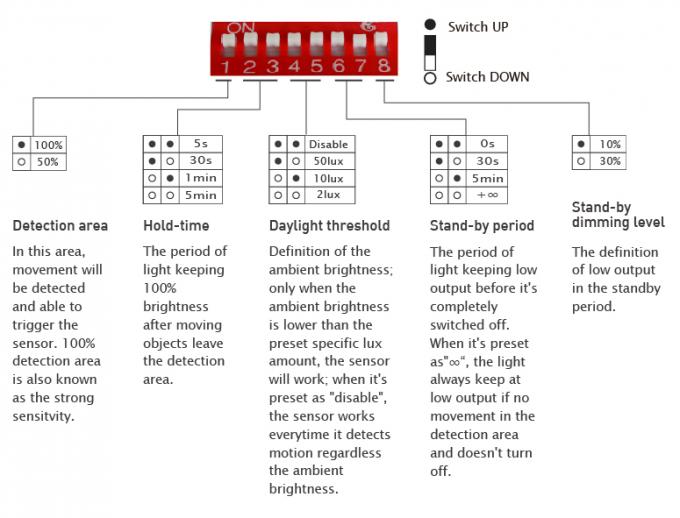

DIP switch

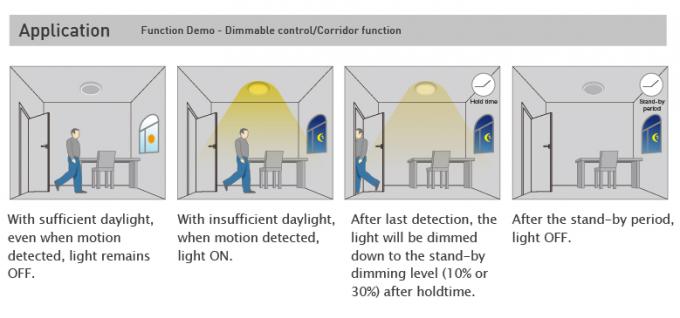

Demo

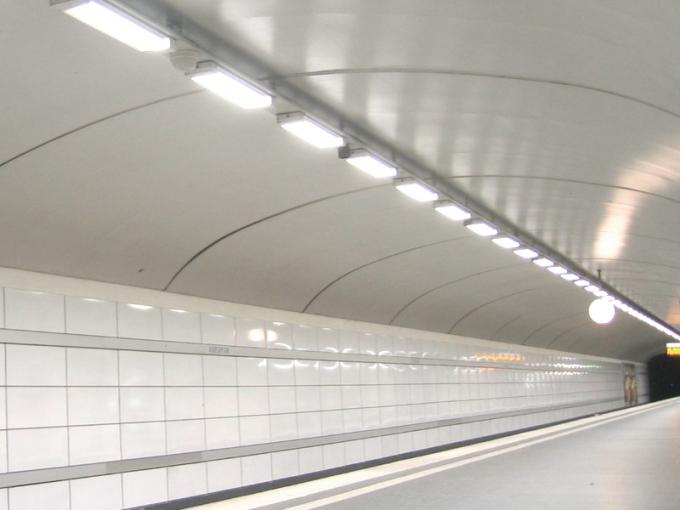

Application
