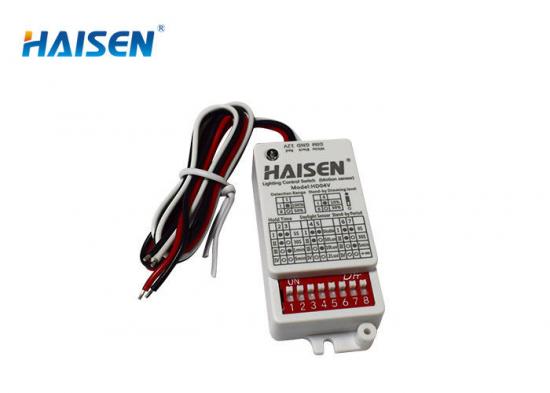

5V PWM Dimmable 0-10V Dimming function For Ceiling Tri-proof light
Brand:
HIASENItem NO.:
HD04V 2Order(MOQ):
100pcsPayment:
L/C, T/T, Western UnionProduct Origin:
China
5V PWM Dimmable 0-10V Dimming function For Ceiling Tri-proof light
Features
Specification
| Input | Operating voltage | 10-15VDC |
| Operating current | 25mA±5% | |
| Safety & EMC | Approval | CE, ROHS |
| Sensor Parameters | Stand-by period | +∞ |
| Stand-by dimming level | 25%/50% | |
| Daylight threshold | 250Lux/400Lux/500Lux/ Disable | |
| Detection angle | 30°-150° | |
| Detection Area | Sensor/Disable | |
| Hold time | 5s/30s/1min/5min | |
| Mounting Height | Max.12m/39.36ft | |
| Detection range | Max.14m/45.92ft | |
| Operating temperature | -25°C~+60°C | |
| Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
| Output | 5V PWM/0-10V | |
| Others | Warranty | 5 years |
| IP rating | IP 20 | |
| Packaging Requirement | Bubble pack, paper flat, outer carton. | |
| Life time | 50000h | |
| Installation | Installed inside lamps | |
| Warranty | 5 years |

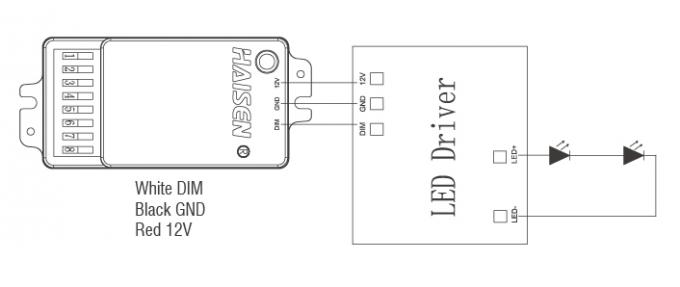

Wiring diagarm

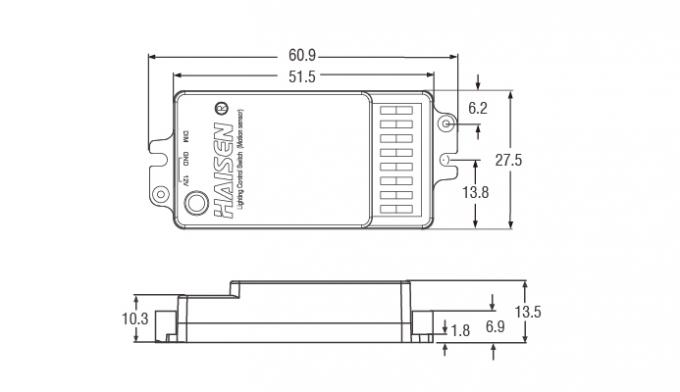

Size

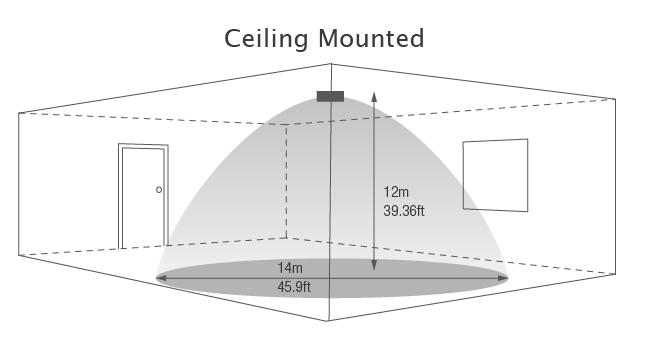

Detection coverage

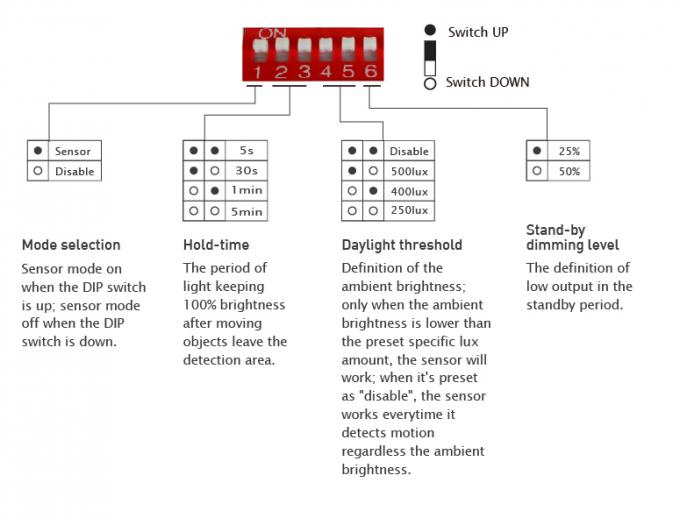

DIP switch
Demo

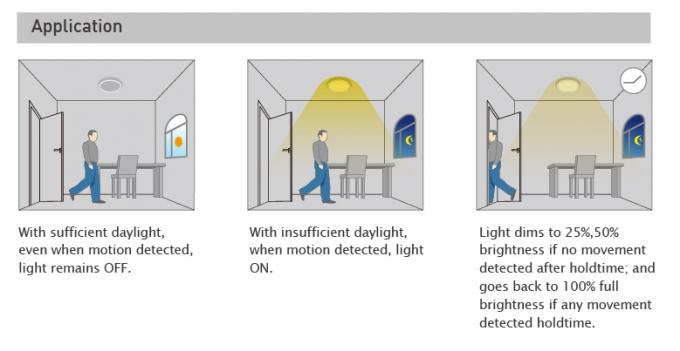

Application
