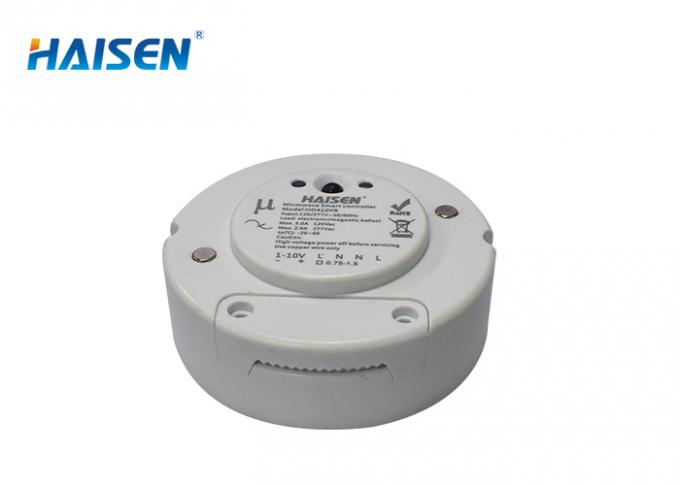

Dimmable 1-10V Microwave Movement Sensor with Dual PD For Panel Light

Brand:
HAISEN
Item NO.:
HD410VR
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China
Certification:
TUV,CE,RED,ROHS,

Product Detail

Detailed Product Description

Operating voltage	120~277 VAC 50/60Hz
Switching capacity	Max:200W(120Vac),Max:400W(240Vac)
Stand-by power	<1W
Detection area	50%/100%
Hold time	5s/30s/1min/5min/10min/20min/30min
Daylight threshold	2Lux/10Lux/30Lux /50Lux/80Lux/120Lux/Disable
Stand-by period	/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level	10%/20%/30%/50%
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Interfaces	6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-) for 0.75- 1.5mm2 cable
Mounting height	Max.6m(ceiling mounted);Max.3m(wall mounted)
Detection range	Max.ø14m(ceiling mounted);Max.10m(wall mounted)
Detection angle	30°-150°
Operating temperature	-25°C~+60°C
IP rating	IP20
Life time	50,000 hours
Warranty	5 years

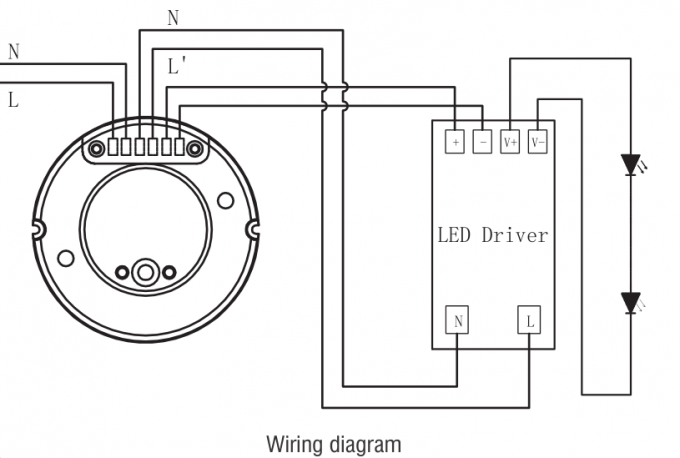

Wiring diagram

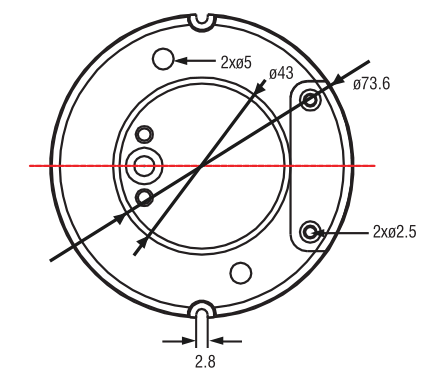

Mechanical structure(mm)

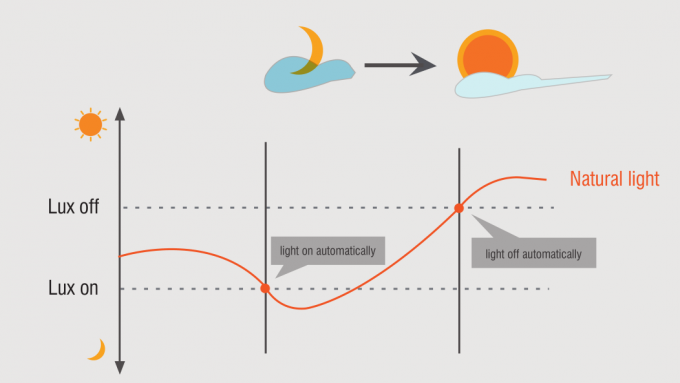

Lux on/off

Adopted dual PD technology, HS03 is able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level.
Preconditions to use the Lux-off function:
1. Standby period is +∞;
2. Standby dimming level is on 10%, 20% or 30%;
3. Daylight threshold is on 30Lux, 50Lux, 80Lux or 120Lux.

Demo

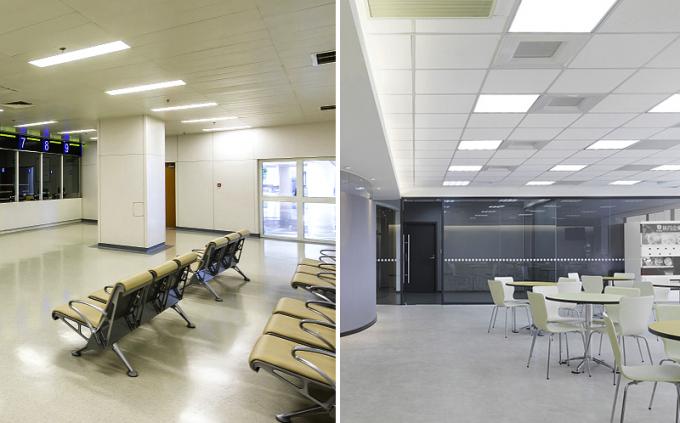

Application:
