Microwave Movement Sensor with Long Range Innovative Design
Features:
Description:
HD401S CR is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.
Detailed Product Description:
Operating voltage | 120~277 VAC 50/60Hz |
Switching capacity | Max.3.0A@120Vac;Max.2.0A@277Vac |
Stand-by power | <1W |
Detection area | 50%/100% |
Hold time | 5s/1min/5min/10min |
Daylight threshold | 2Lux/10Lux/50Lux/Disable |
Microwave frequency | 5.8GHz±75MHz |
Mounting height | Max.6m/19.68ft |
Detection range | Max.ø14m/45.92ft |
Detection angle | 30°-150° |
Operating temperature | -20°C~+60°C |
Size | 80.2X36.6X23mm |
IP rating | IP20 |
Warranty | 5 years |
Design | Compact Design |
Certificate | cULus listed,FCC |

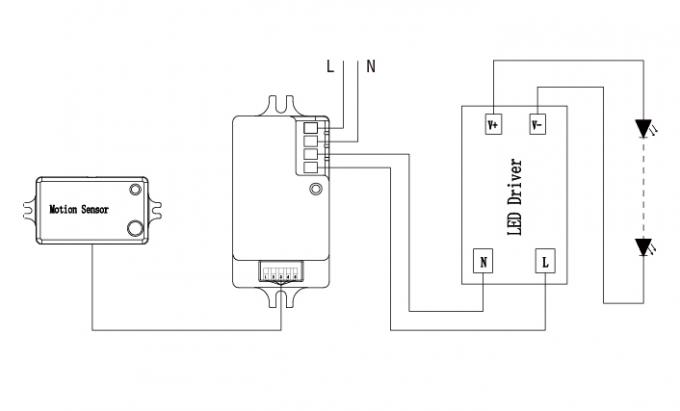

Wiring diagram

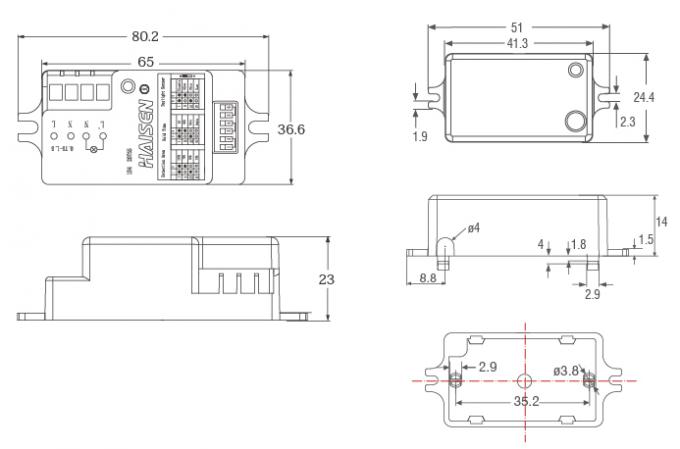

Mechanical structure(mm)

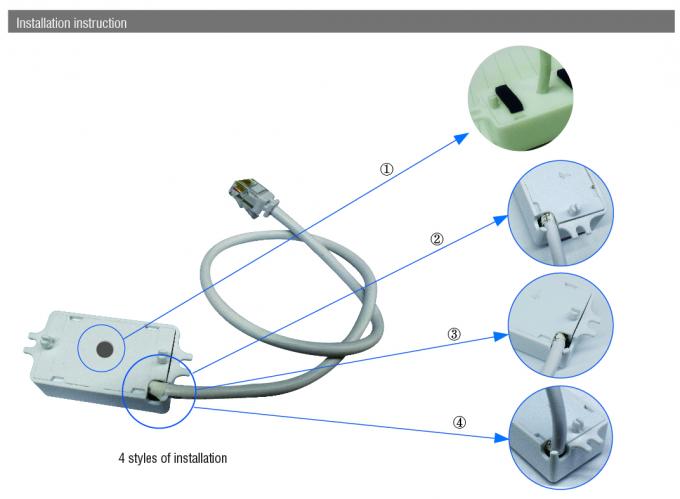

Installation instruction

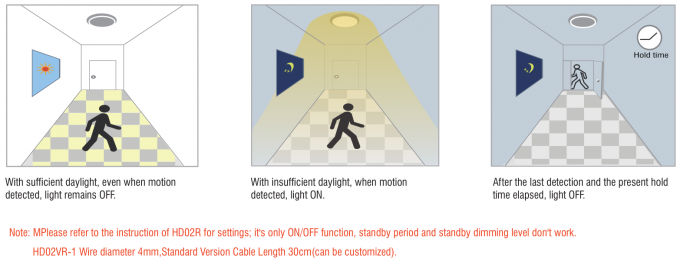

Detection coverage
Demo

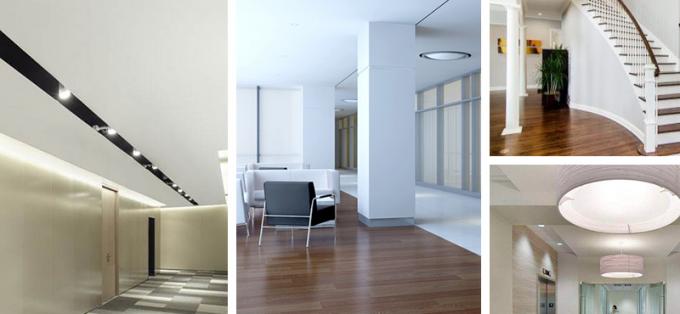

Application
