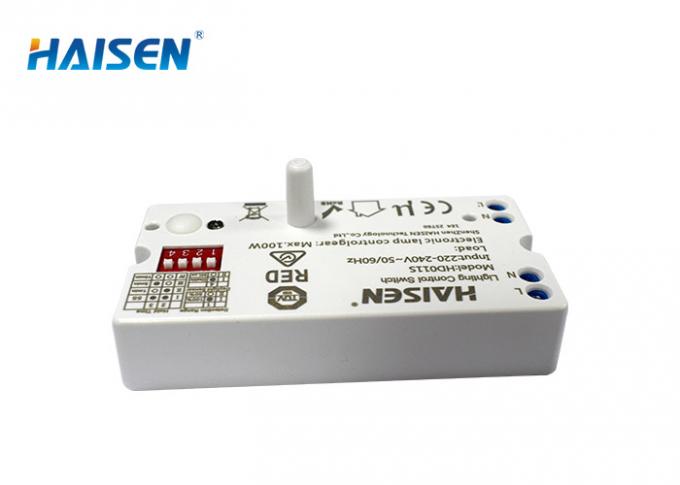

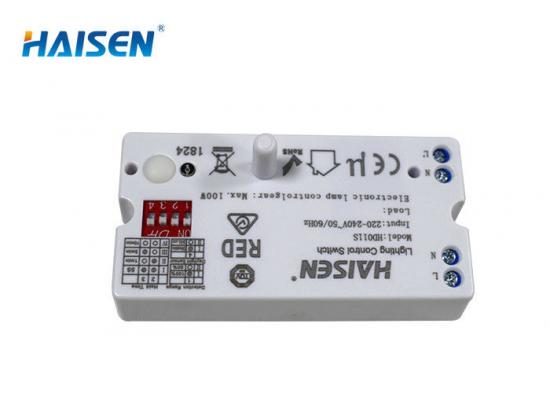

Easy Assembly Microwave Movement Sensor On Off Switch Sensor High Frequency

Brand:
HAISEN
Item NO.:
HD011S
Order(MOQ):
100PCS
Payment:
L/C, T/T, Western Union
Product Origin:
China

Product Detail

Easy Assembly On Off Switch Sensor 220-240V AC Operated High Frequency Microwave

Features:

On/ Off Function.
Installation size of 76.9*39.9*27.7mm.
Lifetime:50,000h.
4-pole press-in terminal (L, N, N,L′),easy assembly.
Columnar Antenna Design.
5.8GHz high frequency microwave.
Detection area, time delay and daylight threshold can be precisely set via DIP switch.
Hold time:5s/60s/3min/10min.
Daylight threshold :30lux / Disable.

Detailed Product Description

Input	Operating Voltage	220-240V AC 50Hz/60Hz
	Direct Voltage	N/A
	Stand-by Power	≤0.5W
Output	Working Model	ON/OFF
	Power of Load	Max.100W
	Current of Load	N/A
	Surge Current of Load
Connection	1-10Vdimmable	N/A
	Synchronous control	N/A
	High low-level	N/A
	PWM Control	N/A
	Type of wiring	N/A
Sensor Parameters	Operating Frequency	5.8 GHz ±75 MHz
	Transmitting power	<0.3mW Max.
	Hold time	5s/60s/3min/10min
	Dim down	N/A
	Stand-by	N/A
	Sensitivity	50%/100%
	Daylight Sensor	30Lux/Disable
	Daylight on/off	N/A
	Detecting Radius	N/A
	Mounting Height	Suggested 6M Max, ceiling mounting
	Detection angle	30°-150°
Wireless Module	Operating Frequency	N/A
	Transmitting power	N/A
	Transmitting distance	N/A
	Modulation mode	N/A
	Number of coding	N/A
Operating	Operating	Temperature, -25°C~+60°C
Environment	Storage	Temperature -30℃…+85℃
Certificate Standards	Safety standards	N/A
	EMC standards	N/A
	Environmental protection	Compliant to RoHS
	Certificates	Compliant to CE TUV RED
Others	Wiring	Press Terminal, wire diameter:0.75-1.5mm2
	IP Rating	IP20
	Installation	Interior installed
	Mounting size	76.939.927.7mm
	Package	Bubble pack, paper flat, outer carton.
	Net Weight	N/A
	Lifespan	50000h @ Ta Full load
Remark:1. “N/A”means not available 2. Each data is tested under certain condition

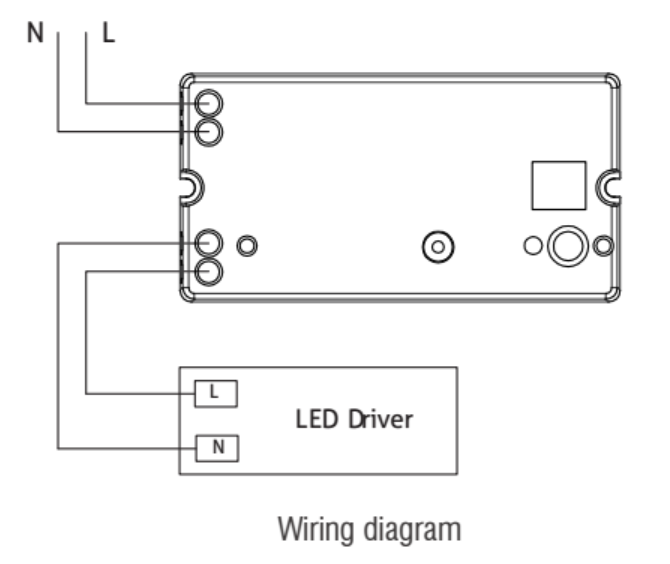

Wiring diagram

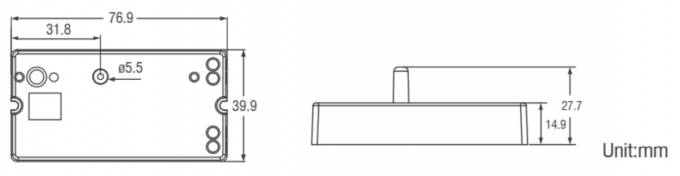

Mechanical structure(mm)

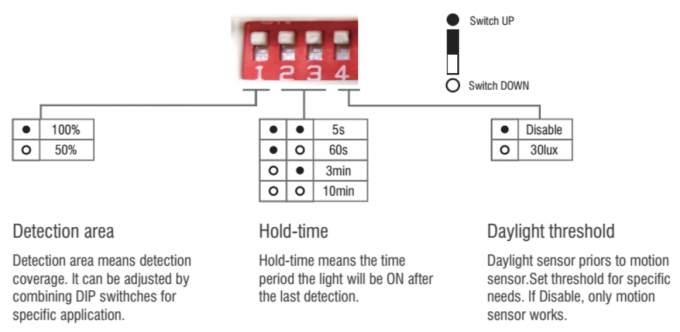

DIP Switch Setting

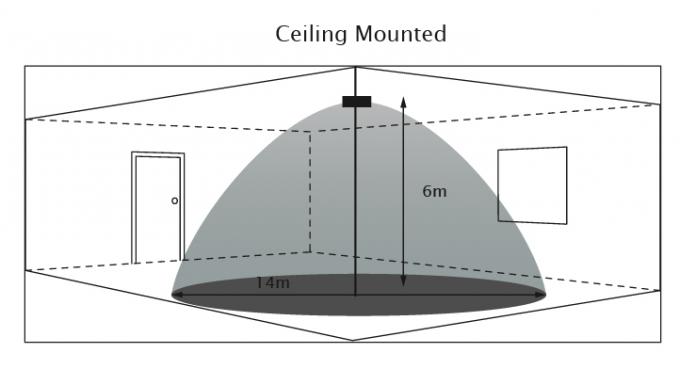

Detection coverage

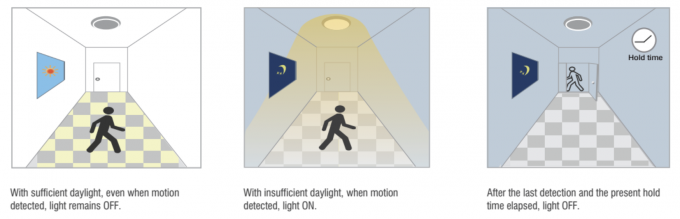

Demo

Application

office/commercial lighting

widely applicated in corridor , fire exit ,warehouse , base - ment and other indoor lighting places .
